AMI BEARINGS BPP6 PILLOW BLOCK BEARING
Quick Overview
Manufactured By: AMI BEARINGS
Manufacturer Part Number: BPP6
IMS Product Code: 1864933
Packaging: Sold Individually
Description:

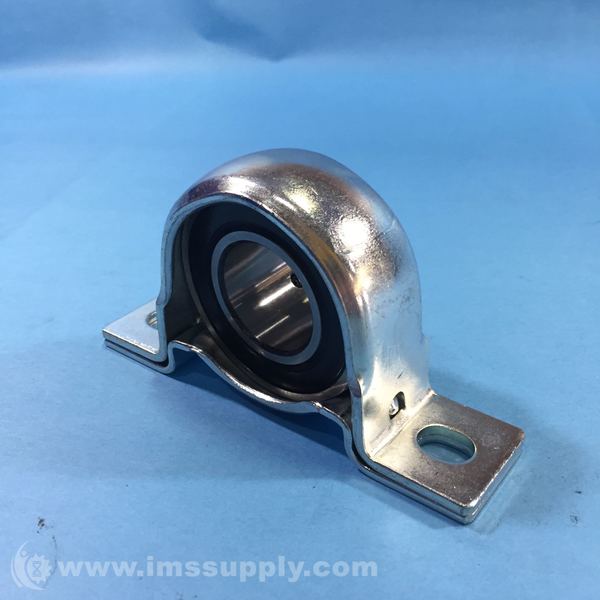

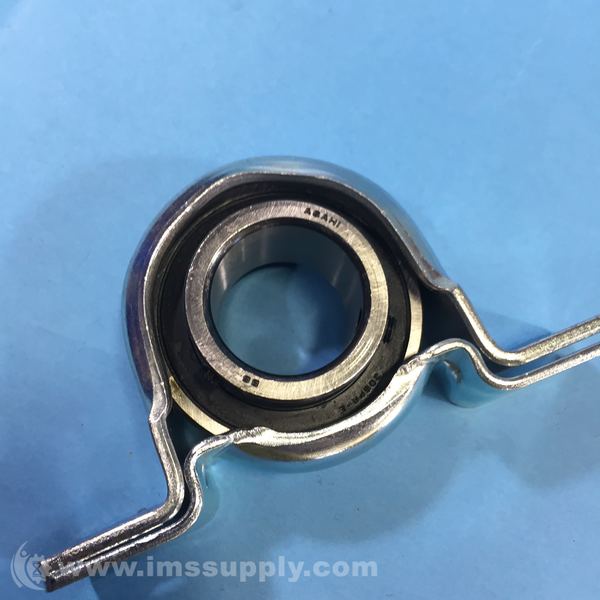

Ami Bearings BPP6 Pillow Block Bearing
Pillow block bearing unit with set screw locking and pressed steel housing
Specifications
- Shaft Diameter: 30 mm
- Stamping Load Limit: 600 lb
- Bolt Size: M10
- Bearing: B6
- Housing: PP6/Pressed steel
- Weight: 1.06 lb
- h: 33.3 mm
- a: 123.8 mm
- e-Min: 91 mm
- e-Max: 100 mm
- b: 31.8 mm
- s1: 10.3 mm
- s2: 14.3 mm
- g: 4 mm
- w: 66.7 mm
- Bi: 30.3 mm
- Application: General Purpose
- Duty: Standard
- Expansion: No
- High Temp: 212f
- Insert Material: Bearing steel
- Insert Type: Ball Bearing
- Locking: Set screw
- Seal: Contact seal
- Type: Pillow block
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, January 26, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
