AMI BEARINGS FCSX06 FLANGE-MOUNT BALL BEARING
Quick Overview
Manufactured By: AMI BEARINGS
Manufacturer Part Number: FCSX06
IMS Product Code: 2154197
Packaging: Sold Individually
Description:

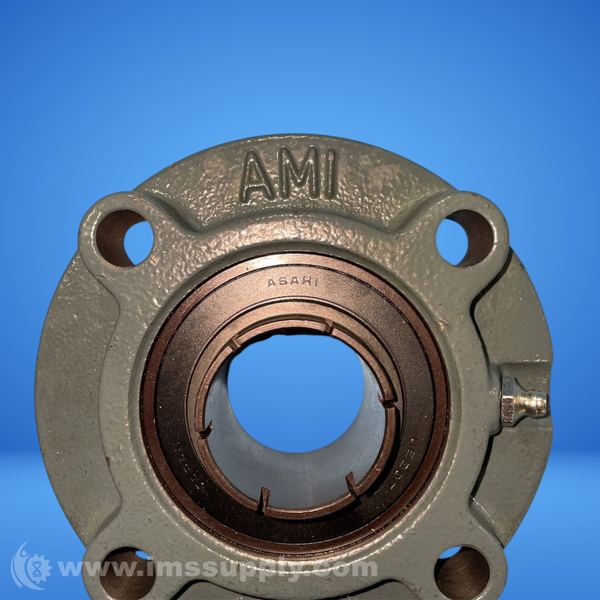

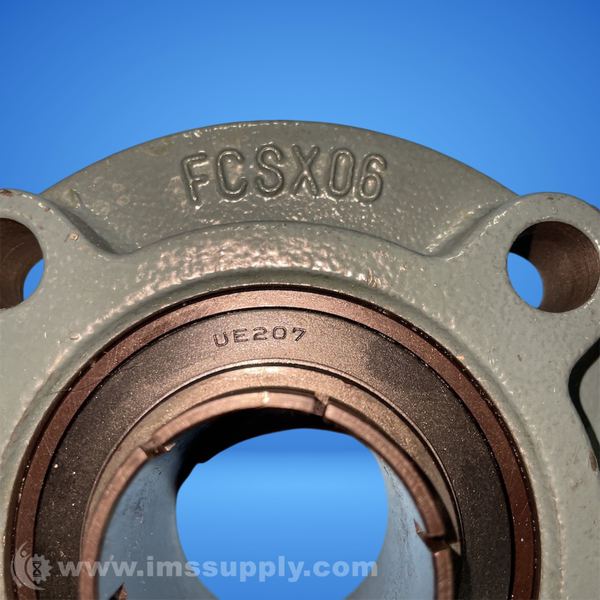

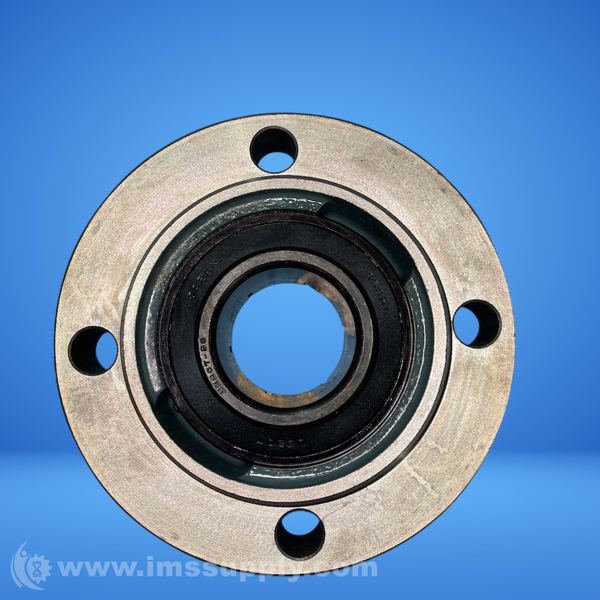

Ami Bearings FCSX06 Flange-Mount Ball Bearing
Flange-mount ball bearing unit with 30 mm bore, 4-bolt piloted flange, set screw locking, cast iron housing, non-expansion bearing (fixed), medium duty, contact seal with flinger seal
Specifications
- Bore Diameter: 30 mm
- Housing Material: Cast Iron
- Duty Type: Medium Duty
- Bolt Circle Diameter: 105 mm
- Locking Device: Set Screw
- Bearing Insert Material: AISI 52100 Steel
- Expansion Type: Non-Expansion Bearing (Fixed)
- Seal Type: Contact Seal with Flinger
- Overall Length Diameter: 127 mm
- Bore Type: Straight
- Lubrication Type: Relubricatable
- Radial Dynamic Load Capacity: 2640 kgf
- Radial Static Load Capacity: 1570 kgf
- Length Through Bore: 42.9 mm
- Pilot Diameter: 85.7 mm
- Unit Standoff: 33.4 mm
- Bolt Size: M10
- Series: UCFCSX00
- Mounting Type: 4-Bolt Piloted Flange
- Type Of Bearing: Ball
New - Missing Box (Special):
has 1 attachment. MFG: ASAHI, MPN: UE207.
