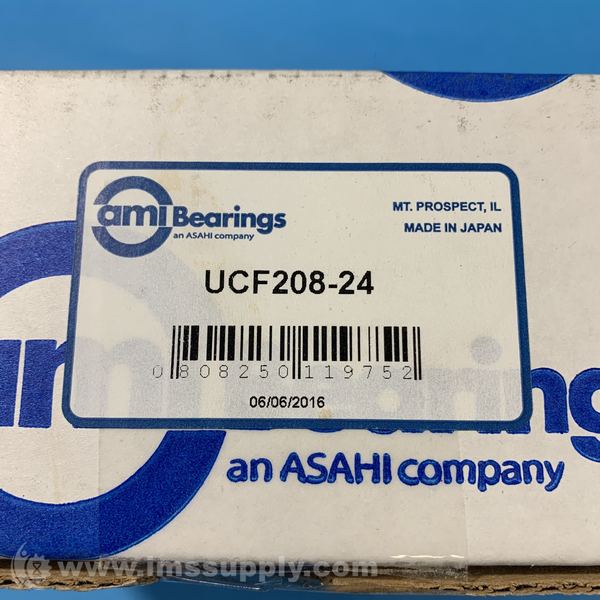

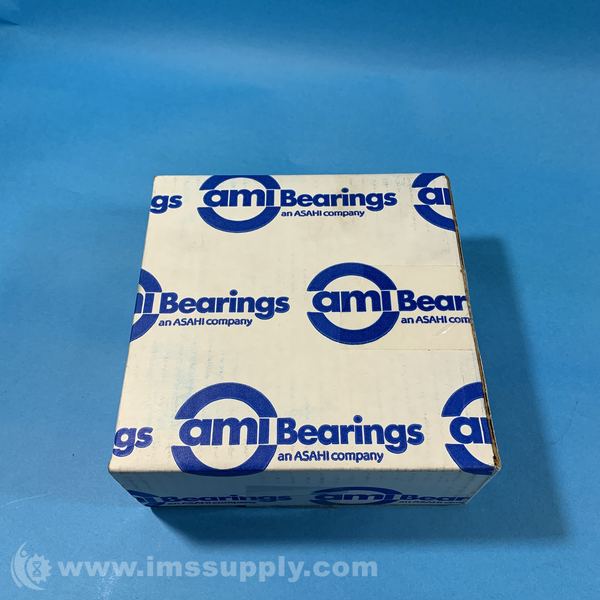

AMI BEARINGS UCF208-24 FLANGE-MOUNT BALL BEARING UNIT
Quick Overview
Manufactured By: AMI BEARINGS
Manufacturer Part Number: UCF208-24
IMS Product Code: 1923640
Packaging: Sold Individually
Description:
Ami Bearings UCF208-24 Flange-Mount Ball Bearing Unit
Flange-Mount Ball Bearing Unit - 1-1/2 in Bore, 4-Bolt Flange, Set Screw Locking, Cast Iron Housing Material, Non-Expansion Bearing (Fixed), Standard Duty, Contact Seal with Flinger Seal
Specifications
- Shaft Diameter: 1-1/2 in
- Bolt Size: 1/2 in
- Bearing: UC208-24
- Housing: F208
- Lubrication Fitting Tap: 1/8-27 NPT
- Weight: 4.41 lb
- a: 5-1/8 in
- e: 4 in
- g: 5/8 in
- x: 1-13/32 in
- s: 17/32 in
- Z: 2.016 in
- Bi: 1.937 in
- Product Type: Flange-Mount Ball Bearing Units
- Bore Diameter: 1-1/2 in
- Housing Material: Cast Iron
- Duty Type: Standard Duty
- Bolt Center To Center Length: 4.0000 in
- Locking Device: Set Screw
- Bearing Insert Material: AISI 52100 Steel
- Expansion Type: Non-Expansion Bearing (Fixed)
- Grade: 52100
- Seal Type: Contact Seal with Flinger
- Bore Type: Straight
- Lubrication Type: Relubricatable
- Radial Dynamic Load Capacity: 6590 lbf
- Radial Static Load Capacity: 4020 lbf
- Length Through Bore: 1.937 in
- Series: UCF200
- Replacement Bearing: UC208-24
- Housing Type: Four-Bolt Flange
- Type Of Bearing: Ball
- Mounting Type: 4-Bolt Flange
- Application: General Purpose
- Inner Ring Width: Wide
- Insert Material: Bearing steel
- Insert Type: Ball Bearing
- Relubrication: Yes
- Seal: Contact Seal with Slinger
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
