AMI BEARINGS UCF208 FLANGE BALL BEARING UNIT
Quick Overview
Manufactured By: AMI BEARINGS
Manufacturer Part Number: UCF208
IMS Product Code: 1861724
Packaging: Sold Individually
Description:

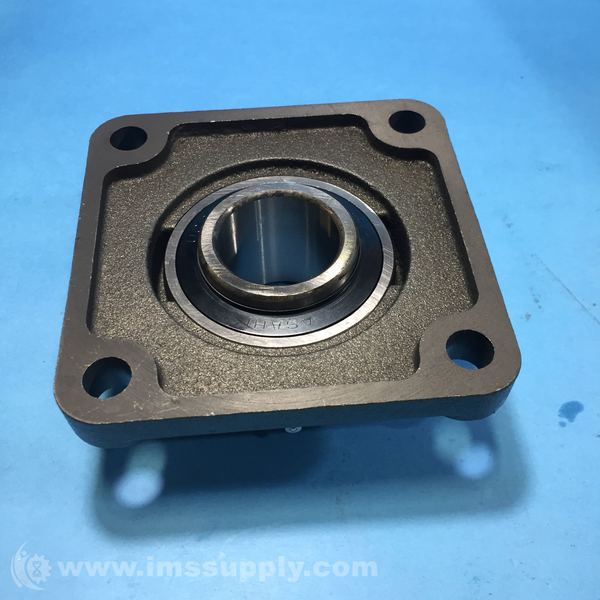

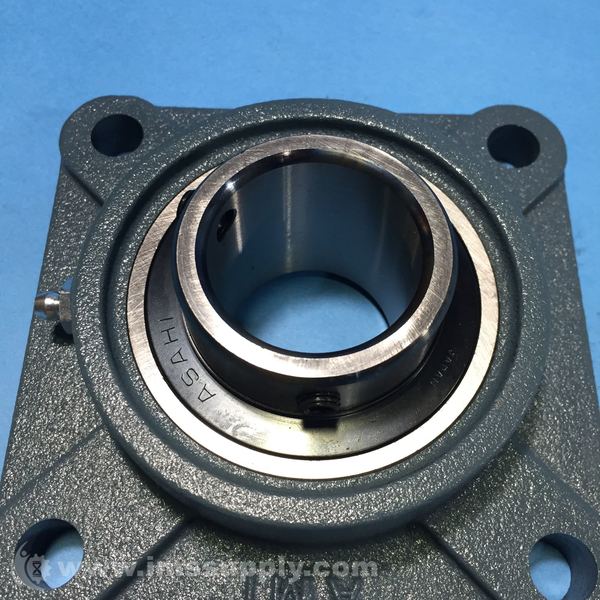

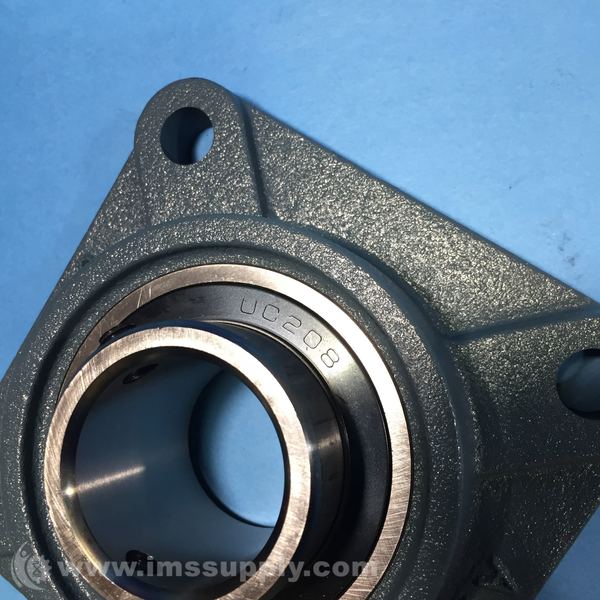

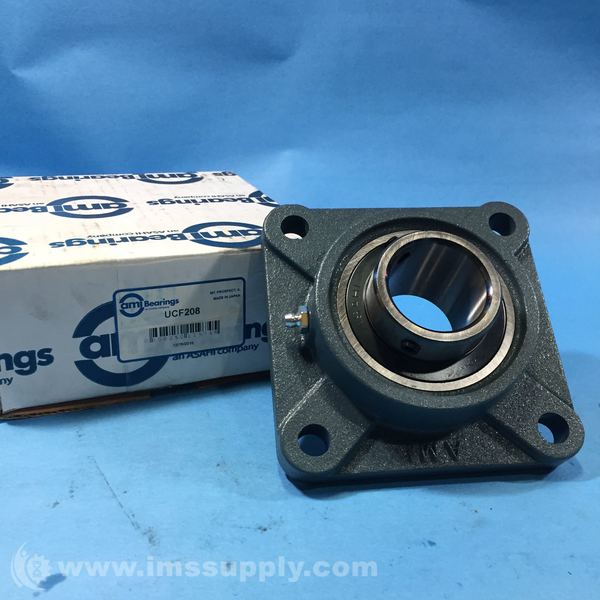

Ami Bearings UCF208 Flange Ball Bearing Unit
Four-Bolt Flange Ball Bearing Unit - 40 mm Bore, Cast Iron Housing, Set Screw Locking, Non-Expansion Bearing
Specifications
- Shaft Diameter: 40 mm
- Bolt Size: M12
- Bearing: UC208
- Housing: F208
- Lubrication Fitting Tap: 1/8-27 NPT
- Weight: 4.46 lb
- Bolt Center To Center Length: 102 mm
- Housing Material: Cast Iron
- Duty Type: Standard Duty
- Locking Device: Set Screw
- Bearing Insert Material: Bearing Steel
- Expansion Type: Non-Expansion Bearing (Fixed)
- Grade: 52100
- Seal Type: Contact Seal with Flinger
- Bore Type: Straight
- Lubrication Type: Relubricatable
- Radial Dynamic Load Capacity: 2990 kgf
- Radial Static Load Capacity: 1830 kgf
- Length Through Bore: 49.2 mm
- Series: UCF
- Type Of Bearing: Ball
- Mounting Type: 4-Bolt Flange
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 1 hours and 48 minutes.
