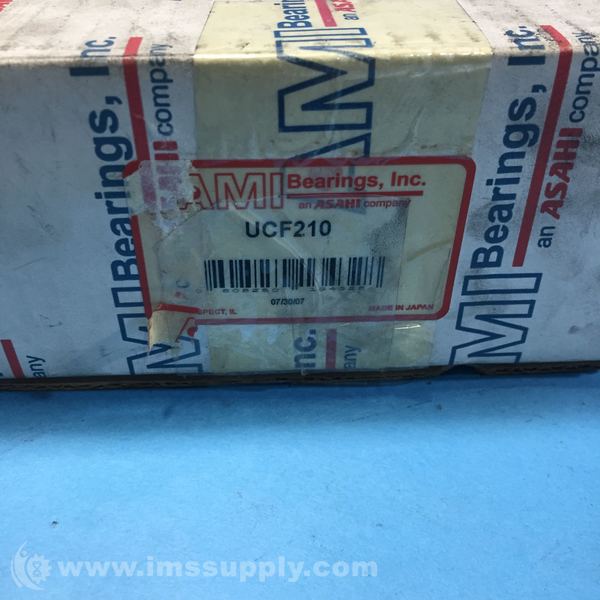

AMI BEARINGS UCF210 FLANGE-MOUNT BALL BEARING UNIT
Quick Overview
Manufactured By: AMI BEARINGS
Manufacturer Part Number: UCF210
IMS Product Code: 1862961
Packaging: Sold Individually
Description:
Ami Bearings UCF210 Flange-Mount Ball Bearing Unit
Flange-mount ball ball bearing unit with 50 mm bore, 4-bolt flange, set screw locking, cast iron housing material, non-expansion bearing (fixed), standard duty, contact seal with flinger seal
Specifications
- Shaft Diameter: 50 mm
- Bolt Size: M14
- Bearing: UC210
- Housing: F210
- Lubrication Fitting Tap: 1/8-27 NPT
- Weight: 5.58 lb
- Bolt Center To Center Length: 111 mm
- Housing Material: Cast Iron
- Duty Type: Standard Duty
- Locking Device: Set Screw
- Bearing Insert Material: AISI 52100 Steel
- Expansion Type: Non-Expansion Bearing (Fixed)
- Seal Type: Contact Seal with Slinger
- Bore Type: Straight
- Lubrication Type: Food Grade Grease
- Radial Dynamic Load Capacity: 3600 kgf
- Radial Static Load Capacity: 2370 kgf
- Length Through Bore: 51.60 mm
- Series: UCF200
- Housing Type: Four-Bolt Flange
- Type Of Bearing: Ball
- Mounting Type: 4-Bolt Flange
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, January 26, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
