AMI BEARINGS UCF213-40NP 2-1/2" FLANGE MOUNT BALL BEARING
Quick Overview
Manufactured By: AMI BEARINGS
Manufacturer Part Number: UCF213-40NP
IMS Product Code: 2153240
Packaging: Sold Individually
Description:

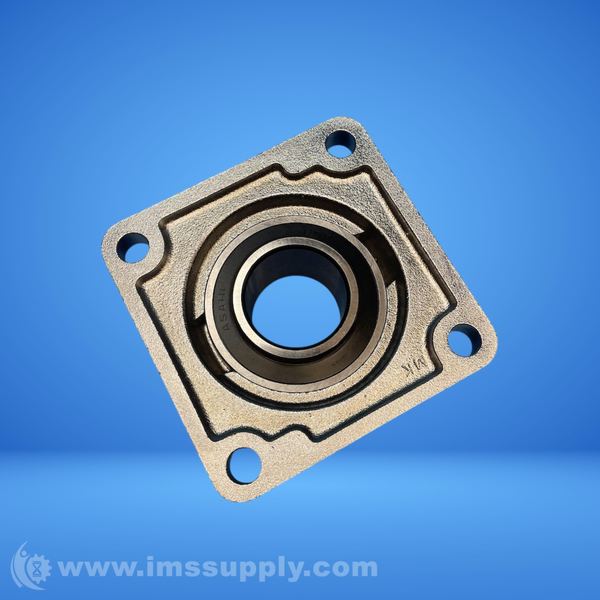

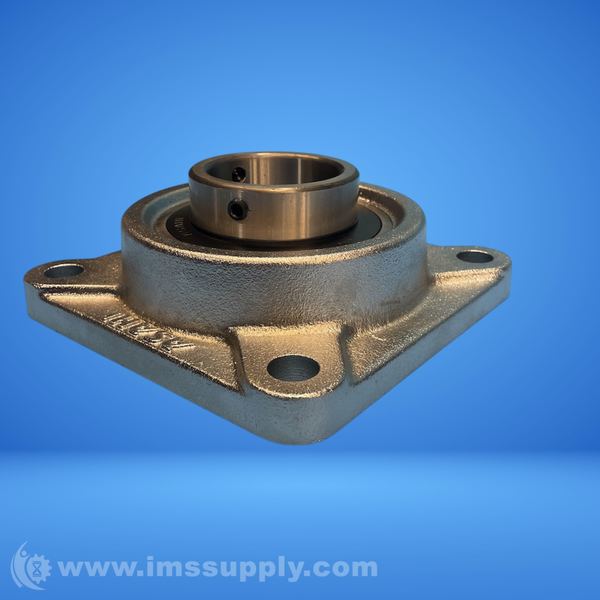

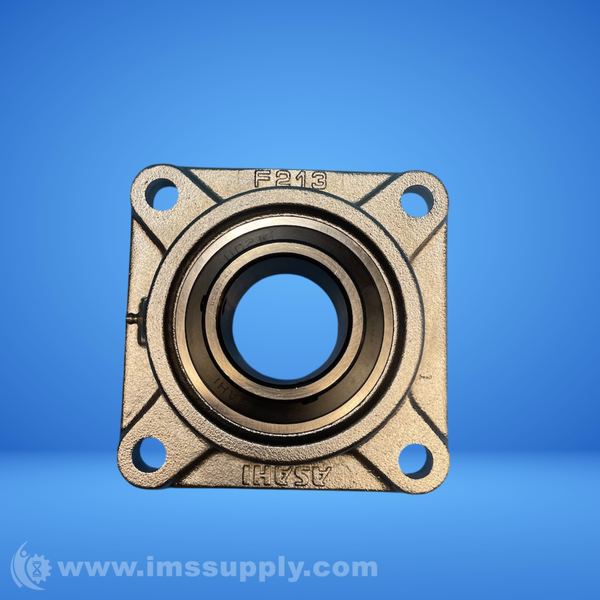

Ami Bearings UCF213-40NP 2-1/2" Flange Mount Ball Bearing
Flange-mount ball bearing unit with 2-1/2" bore diameter, 4-bolt flange, set screw locking, cast iron housing with nickel protection, non-expansion bearing, standard duty, contact seal with flinger seal.
Specifications
- Product Type: Flange-Mount Ball Bearing Units
- Bore Diameter: 2-1/2 in
- Housing Material: Cast Iron - Nickel Protection
- Duty Type: Standard Duty
- Bolt Center To Center Length: 5.8750 in
- Locking Device: Set Screw
- Bearing Insert Material: AISI 52100 Steel
- Expansion Type: Non-Expansion Bearing (Fixed)
- Seal Type: Contact Seal with Flinger
- Bore Type: Straight
- Lubrication Type: Relubricatable
- Radial Dynamic Load Capacity: 12900 lbf
- Radial Static Load Capacity: 9000 lbf
- Length Through Bore: 2.563 in
- Bolt Size: 5/8 in
- Series: UCF200NP
- Housing Type: Four-Bolt Flange
- Type Of Bearing: Ball
- Mounting Type: 4-Bolt Flange
- Application: General Purpose
- High Temp: 212f
- Relubrication: Yes
- Seal: Contact Seal with Slinger
- Type: 4 Bolt Flange
- Country of Origin: Japan
- Category: Flange Bearings
- Bore Dia: 2.5000 in
- Inside diameter(I.D.): 2.5000 in
- Type Of Bore: Cylindrical Bore
- Type Of Installation: 4-Bolt Flange
- Extensibility Type: Non-Expansion Bearing (Fixed)
- Sealing Ring Type: Contact with Flinger
- Hole length: 2.563 in
- Lubrication Design (Grease): Relubricatable
- Bearing Series: UCF200NP
- Interchange: UC213-40
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, January 26, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
