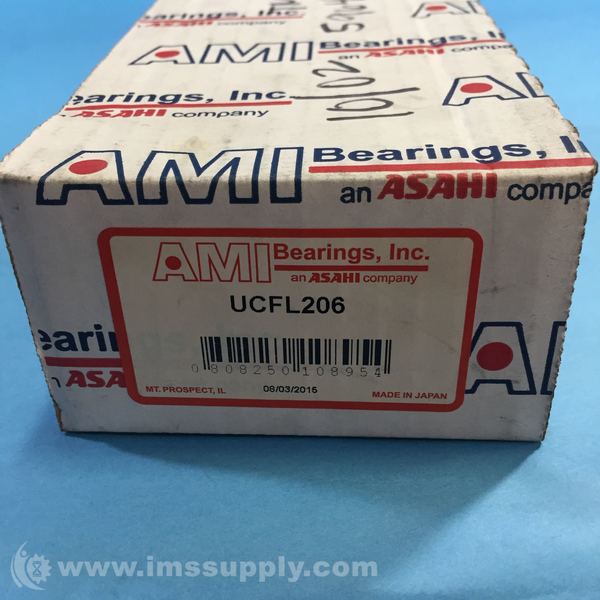

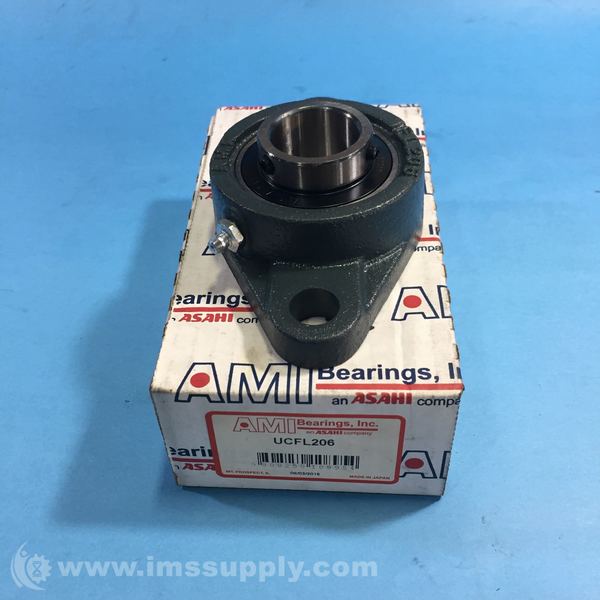

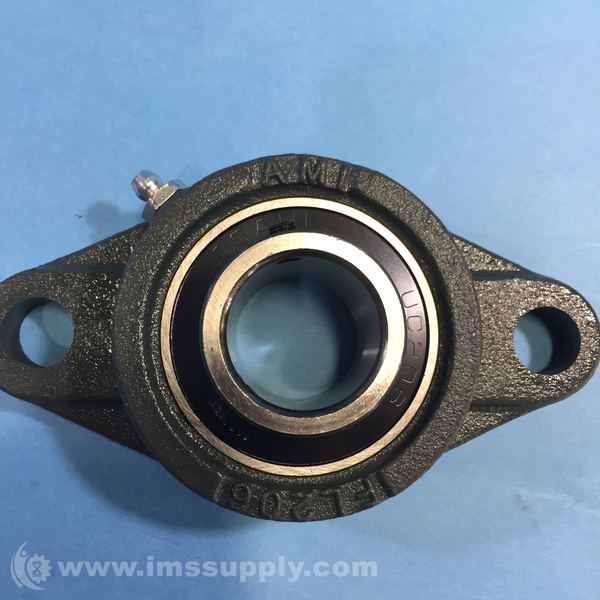

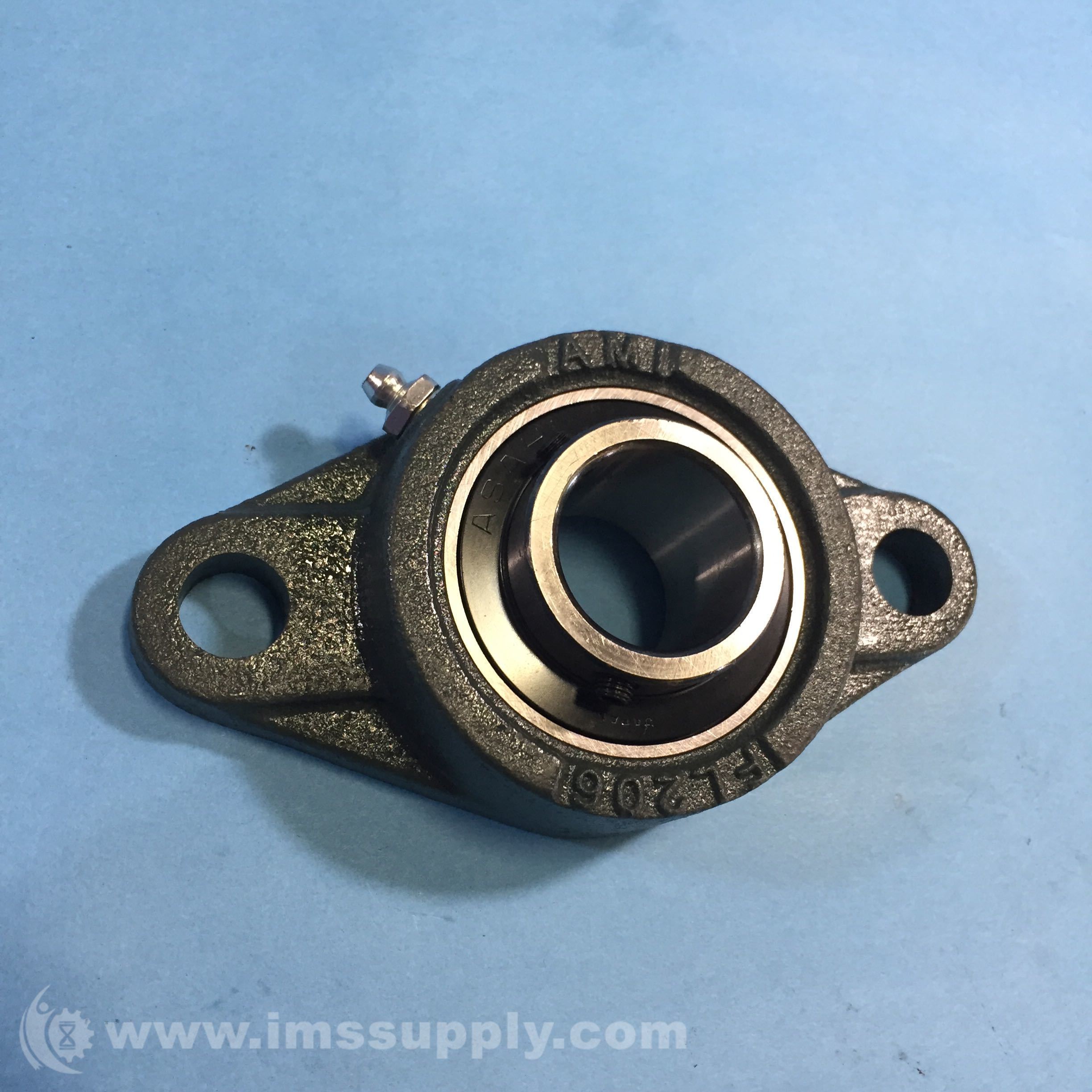

AMI BEARINGS UCFL206 FLANGE MOUNT BALL BEARING
Quick Overview
Manufactured By: AMI BEARINGS
Manufacturer Part Number: UCFL206
IMS Product Code: 1864270
Packaging: Sold Individually
Description:
Ami Bearings UCFL206 Flange Mount Ball Bearing
Flange-mount ball bearing unit with 30 mm bore diameter, cast iron housing, and set screw locking mechanism.
Specifications
- Bore Diameter: 30 mm
- Housing Material: Cast Iron
- Mounting Type: 2-Bolt Flange
- Locking Device: Set Screw
- Bearing Insert Material: AISI 52100 Steel
- Seal Type: Contact Seal with Slinger
- Radial Dynamic Load Capacity: 2150 lbf
- Radial Static Load Capacity: 1080 lbf
- Series: UCFL200
