AMI BEARINGS UCFS314 FOUR-BOLT FLANGE BALL BEARING
Quick Overview
Manufactured By: AMI BEARINGS
Manufacturer Part Number: UCFS314
IMS Product Code: 2128343
Packaging: Sold Individually
Description:

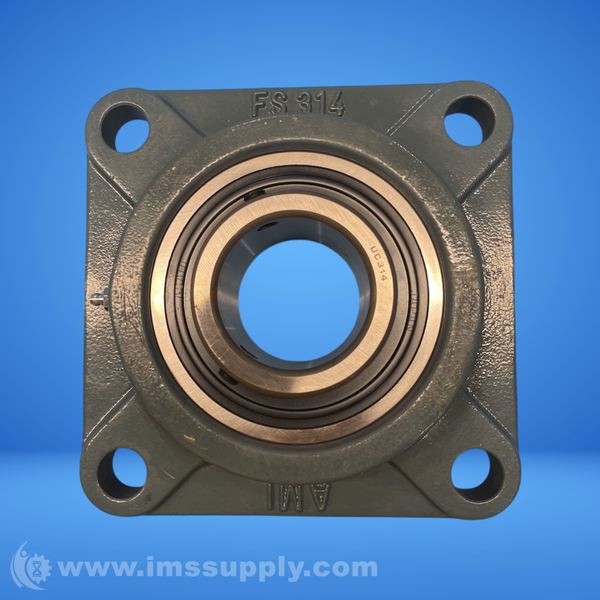

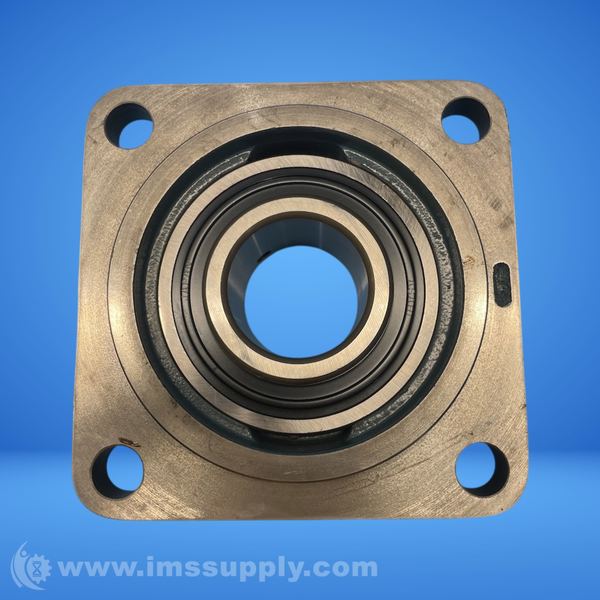

Ami Bearings UCFS314 Four-Bolt Flange Ball Bearing
Four-Bolt Piloted Flange Ball Bearing Unit with 70 mm bore, cast iron housing, set screw locking, and contact seal with flinger. Heavy duty type with relubricatable feature.
Specifications
- Shaft Diameter: 70 mm
- Bolt Size: M22
- Bearing: UC314
- Housing Material: Cast Iron
- Lubrication Fitting Tap: 1/8-27 NPT
- Weight: 25.0 lb
- Bolt Center To Center Length: 178 mm
- Locking Device: Set Screw
- Expansion Type: Non-Expansion Bearing (Fixed)
- Seal Type: Contact Seal with Flinger
- Lubrication Type: Relubricatable
- Bore Type: Straight
- Radial Dynamic Load Capacity: 10600 kgf
- Radial Static Load Capacity: 6930 kgf
- Length Through Bore: 78 mm
- Series: UCFS
- Mounting Type: 4-Bolt Piloted Flange
- Type Of Bearing: Ball
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
