AMI BEARINGS UCP208 PILLOW BLOCK BEARING
Quick Overview
Manufactured By: AMI BEARINGS
Manufacturer Part Number: UCP208
IMS Product Code: 1898273
Packaging: Sold Individually
Description:

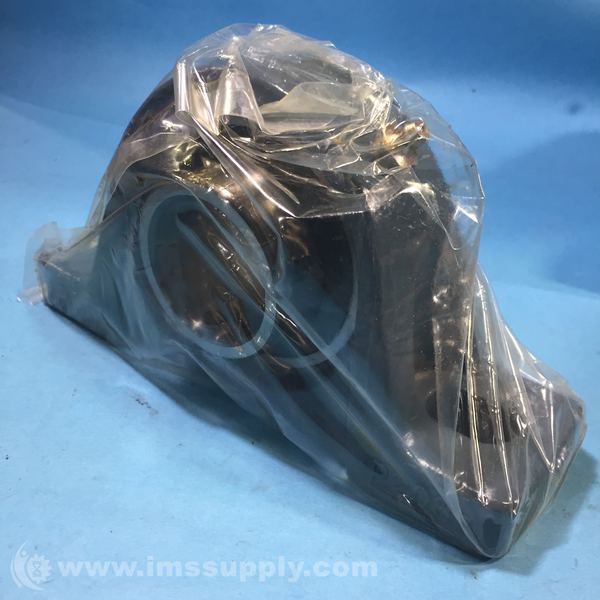

Ami Bearings UCP208 Pillow Block Bearing
Pillow block ball bearing unit with 2-bolt base, 40 mm bore diameter, cast iron housing, and set screw locking device.
Specifications
- Shaft Diameter: 40 mm
- Bolt Size: M14
- Bearing: UC208
- Housing: P208T
- Lubrication Fitting Tap: 1/8-27 NPT
- Weight: 4.46 lb
- Mounting Type: 2-Bolt Base
- Bore Type: Round
- Duty Type: Standard Duty
- Seal Type: Contact with Slinger
- Housing Material: Cast Iron
- Expansion Type: Non-Expansion Bearing (Fixed)
- Radial Dynamic Load Capacity: 2990 kgf
- Radial Static Load Capacity: 1830 kgf
- Lubrication Type: Lubrication Fitting
- Series: UCP200
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 42 minutes.
