AMI BEARINGS UCPH208 PILLOW BLOCK BEARING
Quick Overview
Manufactured By: AMI BEARINGS
Manufacturer Part Number: UCPH208
IMS Product Code: 1803755
Packaging: Sold Individually
Description:

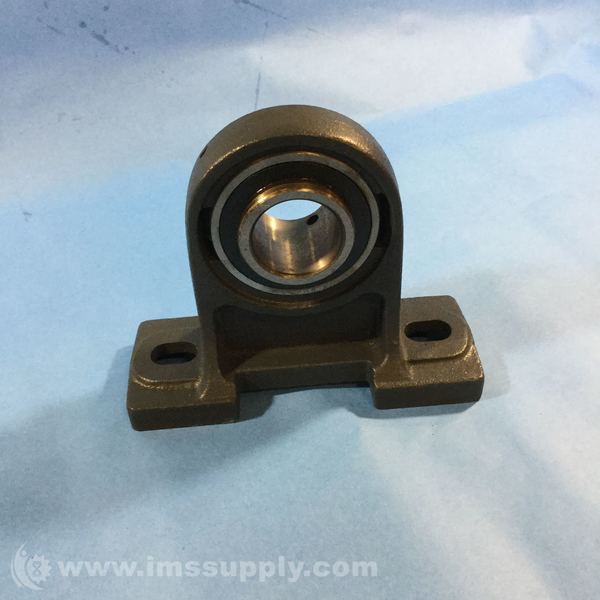

Ami Bearings UCPH208 Pillow Block Bearing
Pillow block ball bearing unit with 2-bolt base, 40 mm bore diameter, cast iron housing, and set screw locking device.
Specifications
- Mounting Type: 2-Bolt Base
- Bore Diameter: 40 mm
- Bolt Center To Center Length: 124 mm to 149 mm
- Base To Bore Centerline: 100 mm
- Duty Type: Standard Duty
- Locking Device: Set Screw
- Seal Type: Contact with Slinger
- Housing Material: Cast Iron
- Expansion Type: Non-Expansion Bearing (Fixed)
- Overall Height: 149 mm
- Overall Length: 184 mm
- Base Width: 70 mm
- Overall Width: 70 mm
- Bolt Size: M14
- Radial Dynamic Load Capacity: 2990 kgf
- Radial Static Load Capacity: 1830 kgf
- Lubrication Type: Lubrication Fitting
- Series: UCPH200
- Replacement Bearing: UC208
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
