AMI BEARINGS UEFCS207-23 FLANGE MOUNT BALL BEARING
Quick Overview
Manufactured By: AMI BEARINGS
Manufacturer Part Number: UEFCS207-23
IMS Product Code: 2154151
Packaging: Sold Individually
Description:

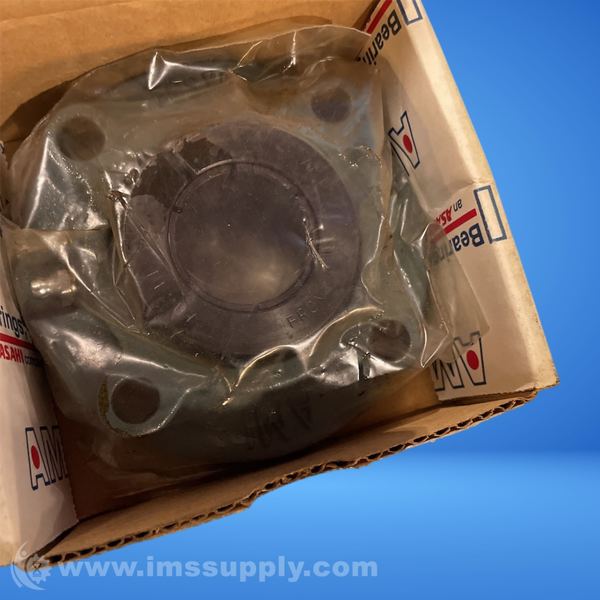

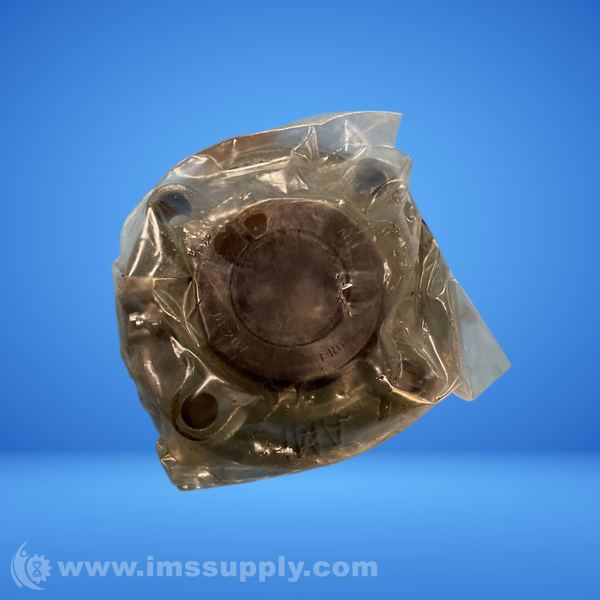

Ami Bearings UEFCS207-23 Flange Mount Ball Bearing
Flange-Mount Ball Bearing Unit - 1-7/16 in Bore, 4-Bolt Piloted Flange, Concentric Collar Locking, Cast Iron Housing Material, Non-Expansion Bearing (Fixed), Standard Duty, Contact Seal with Flinger Seal
Specifications
- Bearing: UE207-23
- Housing: FCSX06
- Shaft Diameter: 1-7/16 in
- Bolt Size: 3/8 in
- Lubrication Fitting Tap: 1/8-27 NPT
- Weight: 3.34 lb
- a: 5 in
- p: 4-1/8 in
- e: 2.921 in
- s: 15/32 in
- J: 3/8 in
- K: 25/64 in
- g: 7/8 in
- f: 3.375 in
- Z: 1.354 in
- L: 1-47/64 in
- Product Type: Flange-Mount Ball Bearing Units
- Bore Diameter: 1-7/16 in
- Housing Material: Cast Iron
- Duty Type: Standard Duty
- Bolt Circle Diameter: 4.1250 in
- Locking Device: Concentric Collar
- Bearing Insert Material: AISI 52100 Steel
- Expansion Type: Non-Expansion Bearing (Fixed)
- Seal Type: Contact Seal with Flinger
- Overall Length Diameter: 5.0000 in
- Bore Type: Straight
- Lubrication Type: Relubricatable
- Radial Dynamic Load Capacity: 5820 lbf
- Radial Static Load Capacity: 3460 lbf
- Length Through Bore: 1-47/64 in
- Finish Coating: Black Oxide
- Pilot Diameter: 3.375 in
- Unit Standoff: 1.354 in
- Series: UEFCS200
- Replacement Bearing: UE207-23
- Type Of Bearing: Ball
- Mounting Type: 4-Bolt Piloted Flange
- Application: General Purpose
- Covers: No
- Duty: Standard
- Expansion: No
- High Temp: 212f
- Inner Ring Width: Wide
- Insert Type: Ball Bearing
- Relubrication: Yes
- Seal: Contact Seal with Slinger
- Type: Piloted flange
- Flange Type: 4-Bolt Flange, Piloted Flange
- Pilot Depth: 3/8 in
- Style: 4-Bolt Piloted Flange
- Bolt Circle Dia.: 4 1/8 in
- Shaft Dia.: 1.4375 in
- Inch/Metric: Inch
- Bolt Hole Spacing: 2.921 in
- Overall Width: 1 23/32 in
- Housing Width: 1 1/4 in
- Mounted Unit Duty: Standard Duty
- Temperature Range [Min]: 5 °F
- Temperature Range [Max]: 212 °F
- Flange Thickness: 25/64 in
- Bolt Hole Size: 15/32 in
- Housing Construction: 1 Piece
- Lubrication: Relubricatable
- Locking Device: ACCU-LOC Concentric Locking Collar
- Center of Bearing to Back of Inner Ring: 0.689 in
- Collar O.D.: 2 17/32 in
- Housing Length: 5 in
- End Type: Open End
- Duty Series: Normal
- Bearing Design: Non-Expansion
- Housing Height: 5 in
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
