AMPHENOL MS3106A18-10P CIRCULAR CONNECTOR
Quick Overview
Manufactured By: AMPHENOL
Manufacturer Part Number: MS3106A18-10P
IMS Product Code: 259886
Packaging: Sold Individually
Description:

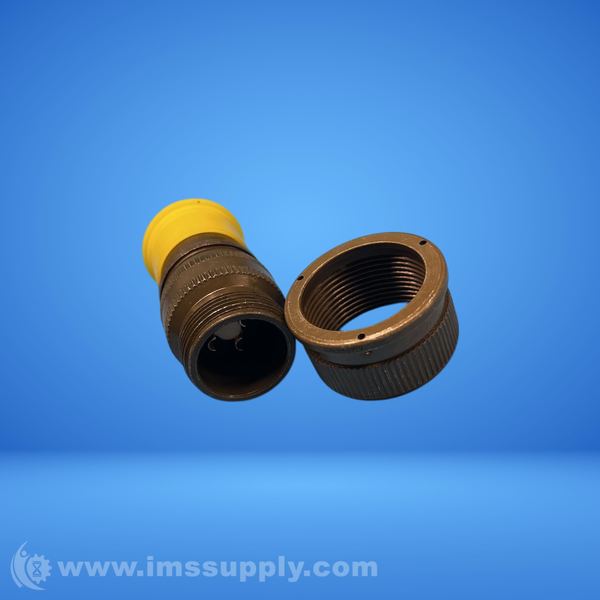

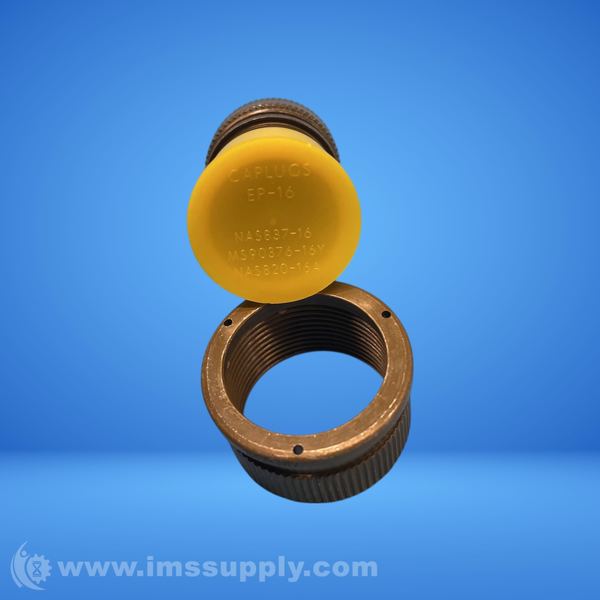

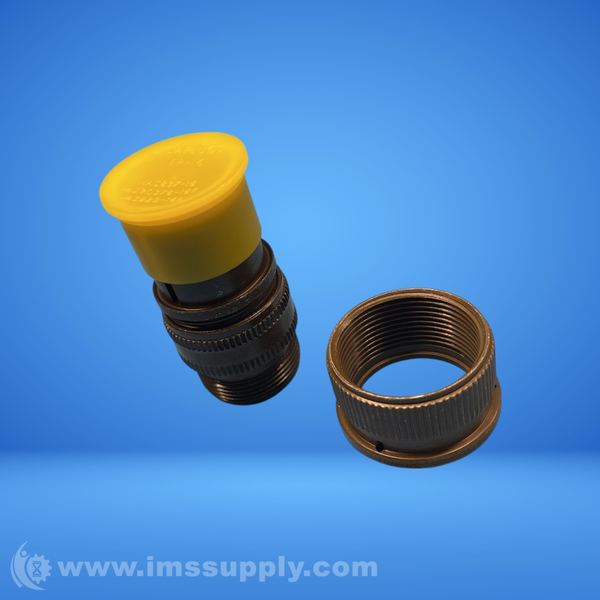

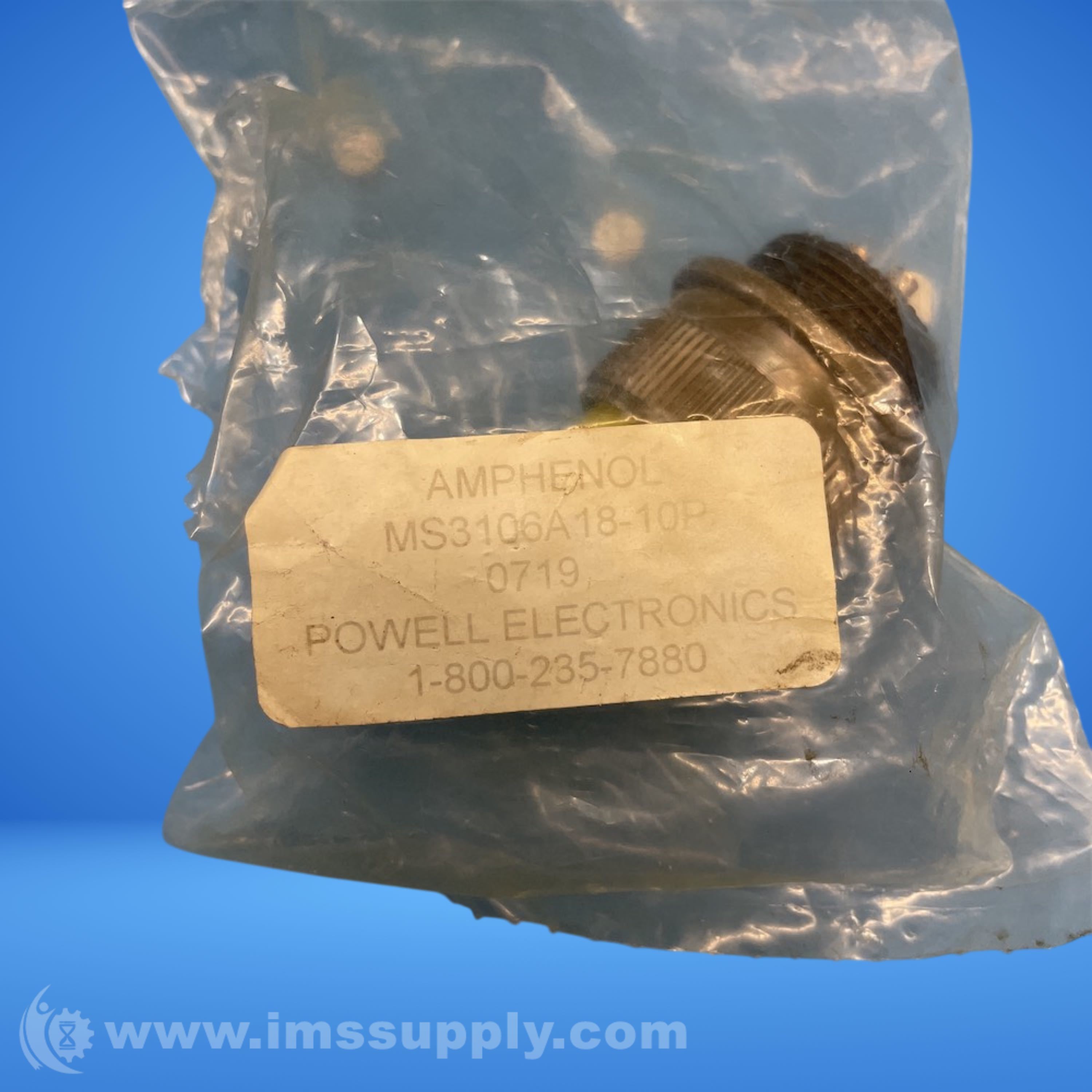

Amphenol MS3106A18-10P Circular Connector
Straight plug with 10 contacts, solder termination, MIL-DTL-5015 series.
Specifications
- Connector Type: Circular
- Connector Style: Plug
- Mounting Type: Cable
- Contacts, #: 10
- Contact Style: Pin
- Termination Method: Solder
- Insert Arrangement: 18-10
- Contact Size: 10#16
- Contact Material: Brass or Copper Alloy
- Contact Plating: Silver
- Shell Material: Aluminum Alloy
- Shell Plating: Olive Drab Cadmium
- Shell Color: Olive Drab
- Insert Material: Neoprene
- Amperage Rating: 13A
- Operating Voltage AC V RMS Max: 500
- Operating Temperature: +257 (+125) for 60 hours, +185 (+85) for 1000 hours
- Contact Mating Life: 100
- Insert Rotation/Keying: Normal
- Operating Voltage DC: 700
- Orientation: Straight
- Service Rating: A
- Endbell Type: Threaded - UNEF - Ext
- Military Specification: MIL-DTL-5015 Series
- Coupling Style: Threaded
- RoHS: No
