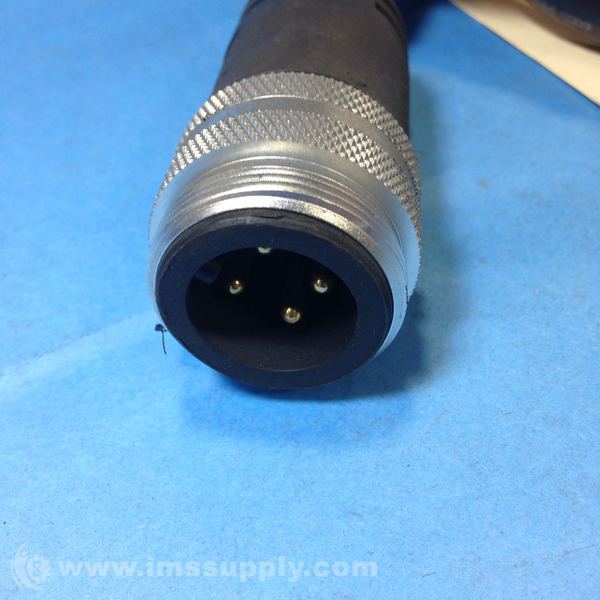

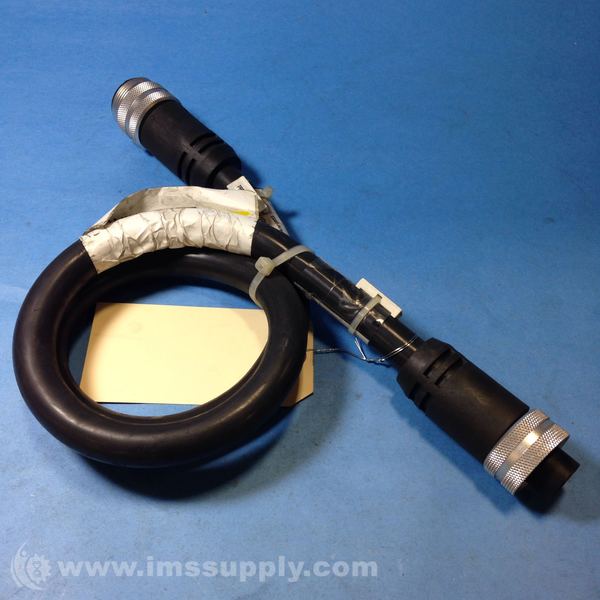

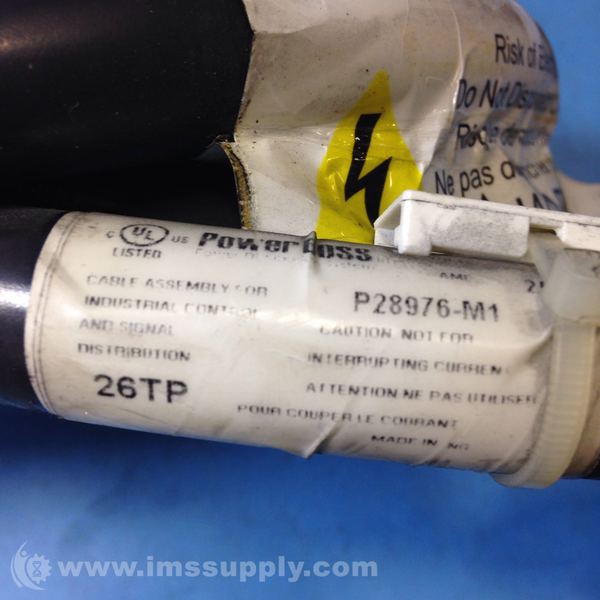

AMPHENOL P28976-M1 4 POSITION TRUNK CABLE
Quick Overview
Manufactured By: AMPHENOL
Manufacturer Part Number: P28976-M1
IMS Product Code: 265154
Packaging: Sold Individually
Description:
Amphenol P28976-M1 4 Position Trunk Cable
Double-ended 4 position trunk cable assembly with male and female straight connectors, dual-rated, black PVC jacket, 1 meter length.
Specifications
- Amperage: 32A
- AWG: 10
- Cable Diameter: 0.72" (18.3mm)
- Connector Color: Black
- Connector Face: PVC
- Contact Plating: 5µ"(min) Gold over 25µ" (min) Nickel
- Contacts: Copper Alloy
- Housing: Machined Aluminum, Anodized
- Jacket: Black PVC
- Positions: 4
- Protection: IP67
- Rating: Dual-rated
- Specifications: stranded copper (105 x 30)
- Temp Range: -20°C to 105°C
- UL: TC-ER/STOOW,FT4; CSA certified type STOOW
- Voltage: 600
- Cable Length: 1 m
- Number Of Conductors: 4
- Series: Fadpc
- Current (MAX): 25A
- Voltage (MAX): 600V AC/DC
- Insulation Resistance (MIN): 5000M OHMS
- Dielectric Test Voltage: 2200V
- Temperature Range: -40C TO 90C
- Mating Cycles: >500
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
