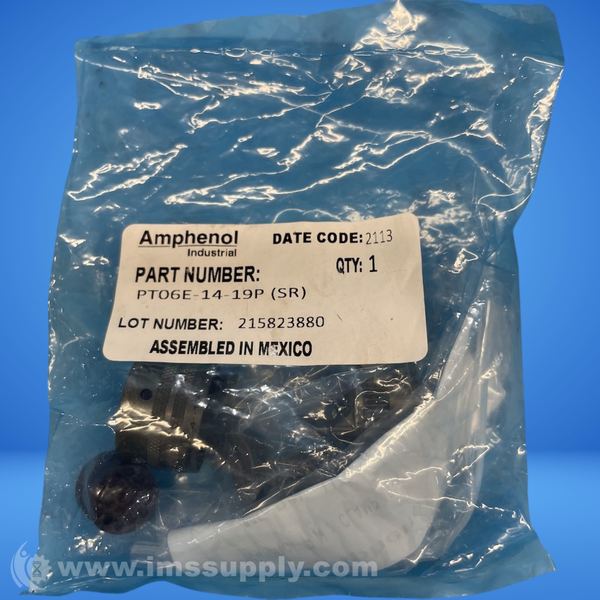

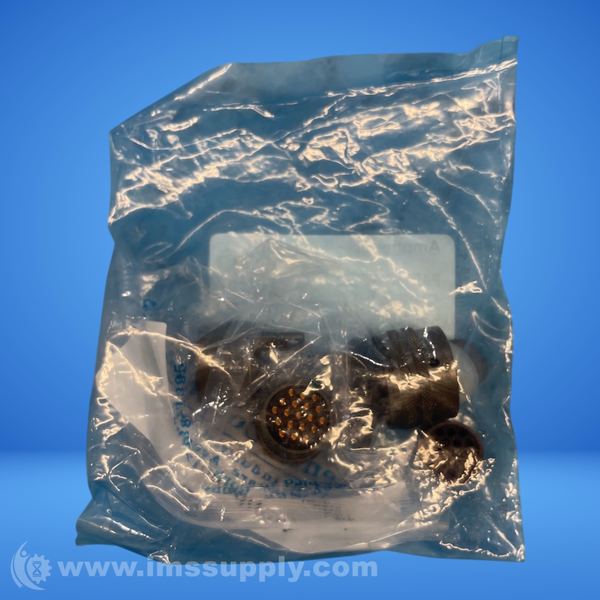

AMPHENOL PT06E-14-19P(SR) CIRCULAR CONNECTOR
Quick Overview
Manufactured By: AMPHENOL
Manufacturer Part Number: PT06E-14-19P(SR)
IMS Product Code: 2146986
Packaging: Sold Individually
Description:
Amphenol PT06E-14-19P(SR) Circular Connector
19-Position Circular Connector, Straight Plug, Solder Termination, MIL-DTL-26482 Series I
Specifications
- Type: Circular
- Gender: Male
- Mounting: Cable Mount
- Body Orientation: Straight
- Number of Contacts: 19
- Contact Gender: Male
- Termination Method: Solder
- Shell Size / Insert Arrangement: 14-19
- Contact Plating: Gold
- Shell Plating: Cadmium Over Nickel
- Maximum Current Rating (A): 7.5
- Maximum Voltage Rating: 600VAC
- Minimum Operating Temperature: -55 degrees C
- Maximum Operating Temperature: 125 degrees C
- Mating Style: Bayonet Lock
- Product Diameter (mm): 29
- Product Length (mm): 51.1
- Product Range: PT Series
- Circular Connector Shell Style: Straight Plug
- Circular Connector Contact Type: Solder Pin
- Insert Arrangement: 14-19
- Coupling Style: Bayonet
- Connector Body Material: Aluminium Alloy
- Contact Material: Copper Alloy
- Service Class: Environmentally Sealed
- Equivalent Military Specification: MIL-DTL-26482 Series I
- Weight (kg): 0.05
- Housing Material: Aluminium
- Insulation Material: Rubber
- Number of Pins: 19
- Shell Material: Aluminium
- Fastening Type: Bayonet
- Wire Gauge (Max): 24 AWG
- Wire Gauge (Min): 20 AWG
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
