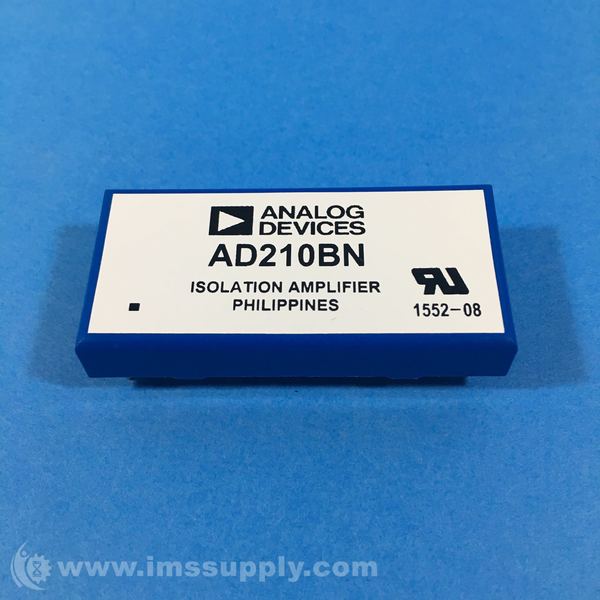

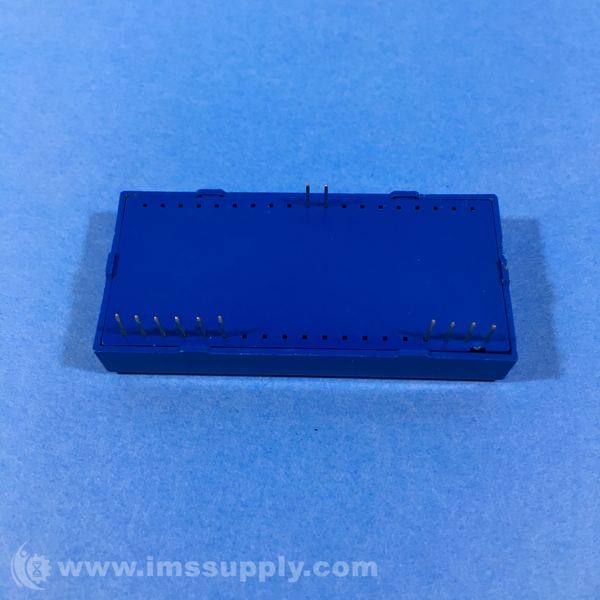

ANALOG DEVICES AD210BN ISOLATION AMPLIFIER, 20 KHZ BANDWIDTH
Quick Overview
Manufactured By: ANALOG DEVICES
Manufacturer Part Number: AD210BN
IMS Product Code: 1807722
Packaging: Sold Individually
Description:
Analog Devices AD210BN Isolation Amplifier, 20 kHz Bandwidth
Specifications:
- Number of Channels: 3 Channel
- Isolation Voltage: 2500 Vrms
- Isolation Type: Galvanic
- GBP - Gain Bandwidth Product: -
- 3 dB Bandwidth: 20 kHz
- CMRR - Common Mode Rejection Ratio: 120 dB
- Ib - Input Bias Current: 400 pA
- Supply Voltage - Max: 16.5 V
- Supply Voltage - Min: 13.5 V
- Operating Supply Current: 50 mA
- Minimum Operating Temperature: - 25 C
- Maximum Operating Temperature: + 85 C
- Mounting Style: Through Hole
- Package / Case: DIP-12
- Packaging: Tube
- Amplifier Type: Isolation
- Output Type: Isolation
- Product: Isolation Amplifiers
- Brand: Analog Devices
- Shutdown: No Shutdown
- Gain V/V: 1 V/V to 100 V/V
- Ios - Input Offset Current: 200 pA
- Operating Supply Voltage: 15 V
- Output Current per Channel: 5 mA
- Product Type: Isolation Amplifiers
- SR - Slew Rate: 1 V/us
- Subcategory: Amplifier ICs
- Unit Weight: 0.560009 oz
- DPN: ELS-1-000280000
