ANCHOR FLANGE 20SFO SPLIT FLANGE KIT
Quick Overview
Manufactured By: ANCHOR FLANGE
Manufacturer Part Number: 20SFO
IMS Product Code: 1924000
Packaging: Sold Individually
Description:

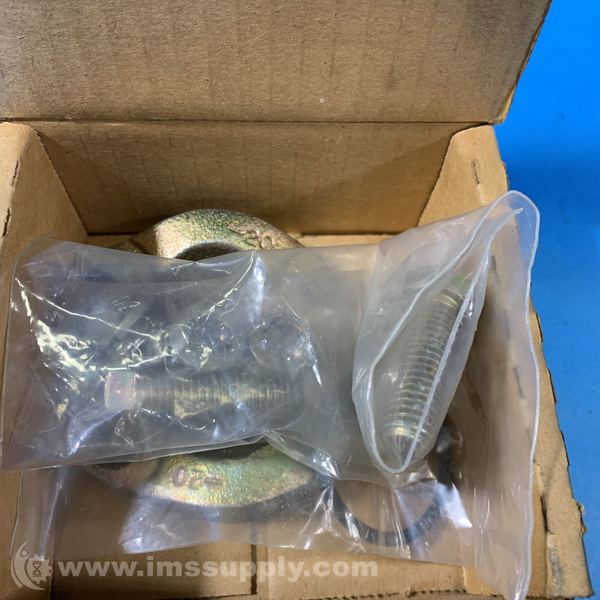

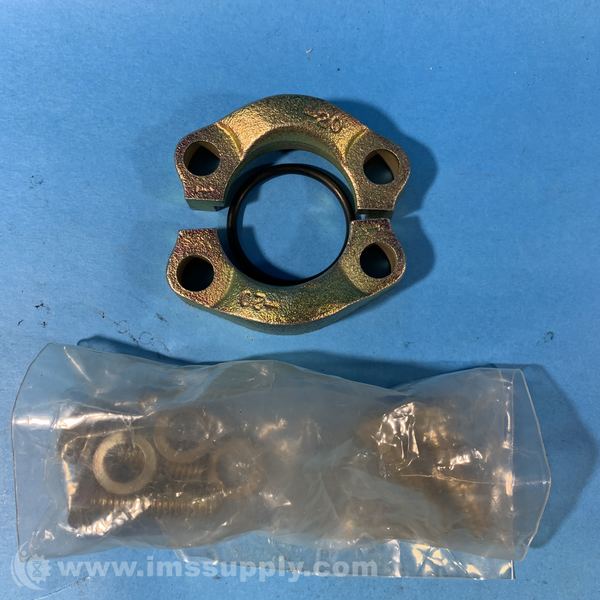

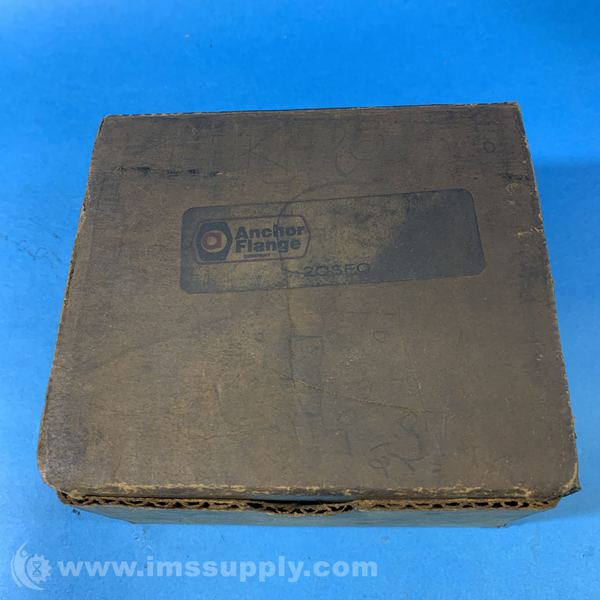

Anchor Flange 20SFO Split Flange Kit
SAE J518 Split Carbon Steel Flanges, Code 61, 1-1/4 in
Specifications
- Material: Carbon Steel
- Type: Split Flange Kit
- Flange Code: Code 61
- Flange Size: 1-1/4 in
- Pressure Rating: 4000
- Fitting Angle: Straight
- Dimension A: 1.390 in
- Dimension B: 3.120 in
- Dimension C: 2.312 in
- Dimension D: 0.880 in
- Dimension E: 0.560 in
- Dimension F: 2.031 in
- Dimension G: 1.720 in
- Dimension H: 0.295 in
- Dimension J: 0.469 in
- Mounting Hardware - O-Ring: 222
- Mounting Hardware - HHCS: 7/16-14 x 1.50
- Item Weight: 1.05 lbs
- Country of Manufacture: China
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 53 minutes.
