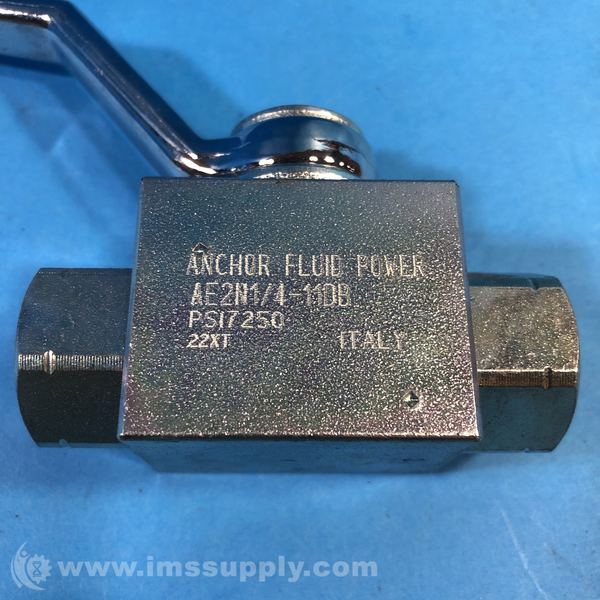

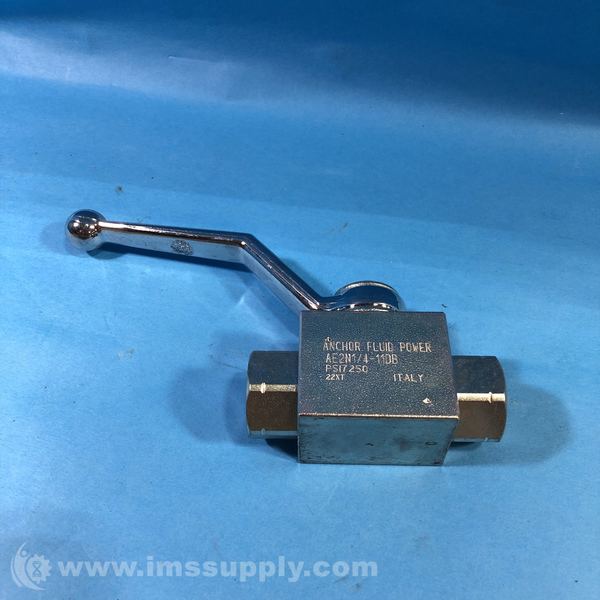

ANCHOR FLUID POWER AE2N1/4-11DB 2-WAY BLOCK BODY BALL VALVE
Quick Overview
Manufactured By: ANCHOR FLUID POWER
Manufacturer Part Number: AE2N1/4-11DB
IMS Product Code: 1867058
Packaging: Sold Individually
Description:
Anchor Fluid Power AE2N1/4-11DB 2-Way Block Body Ball Valve
Compact, manually operated ball valve ideal for hydraulic and pneumatic systems where reliable shutoff and compact size are needed.
Specifications
- Nominal Size (DN): 6 mm
- Connection Type: National Pipe Thread (NPT)
- Connection Size: 1/4 in. - 18
- Maximum Pressure: 7250 psi
- Bore Restriction: Unrestricted Bore
- Body and Adapter Material: Carbon Steel
- Ball and Stem Seats Material: Polyoxymethylene (POM)
- Adapter and Stem Seals Material: Buna (Standard) Fluorocarbon (FKM)
- Ball and Stem Material: Carbon Steel
- Plating: Zinc Nickel
- Number of Ways: 2
- Dimension L: 2.72 in
- Dimension L2: 1.42 in
- Dimension B: 0.79 in
- Dimension H: 0.98 in
- Dimension H1: 0.39 in
- Dimension H2: 1.08 in
- Dimension SW: 0.75 in
- Dimension SW1: 0.28 in
- Port Size: 1/4" NPT
- Style: Two-Way Block Body Threaded Ball Valve
- O Ring Seals: Buna
- Pressure Rating: 7250
- Body Material: Carbon Steel
- Series: AE2
- Ball Seal: POM
- Ball Pattern: On/Off
- Ball Valve Pressure Range: High Pressure (5000 to 9999psi)
- Flow Style: Two-Way
- Country of Manufacture: China
- Height: 1.18
- Length: 2.8
- Width: 1.38
- Ball Valve Type: Standard
- Control Type: Manually Operated
- Flow Direction: 2-Way
- Maximum Operating Pressure: 7250 psi
- Handle Style: Offset Handle
- Porting Style: Full Port
- Body Seal Material: Buna-N
- Stem Seal Material: Buna-N
- Ball Material: Carbon Steel
- Stem Material: Carbon Steel
- Seat Material: POM
- Min Operating Temperature: -22 degrees F
- Mounting Type: Inline Threaded
- Max Operating Temperature: 212 degrees F
- Standards: RoHS Compliant
- Surface Finish: Zinc Chromate
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
