ANDREW AL4RPV-50R-CBAND COAXIAL CABLE
Quick Overview
Manufactured By: ANDREW
Manufacturer Part Number: AL4RPV-50R-CBAND
IMS Product Code: 2149524
Packaging: Sold Individually
Description:

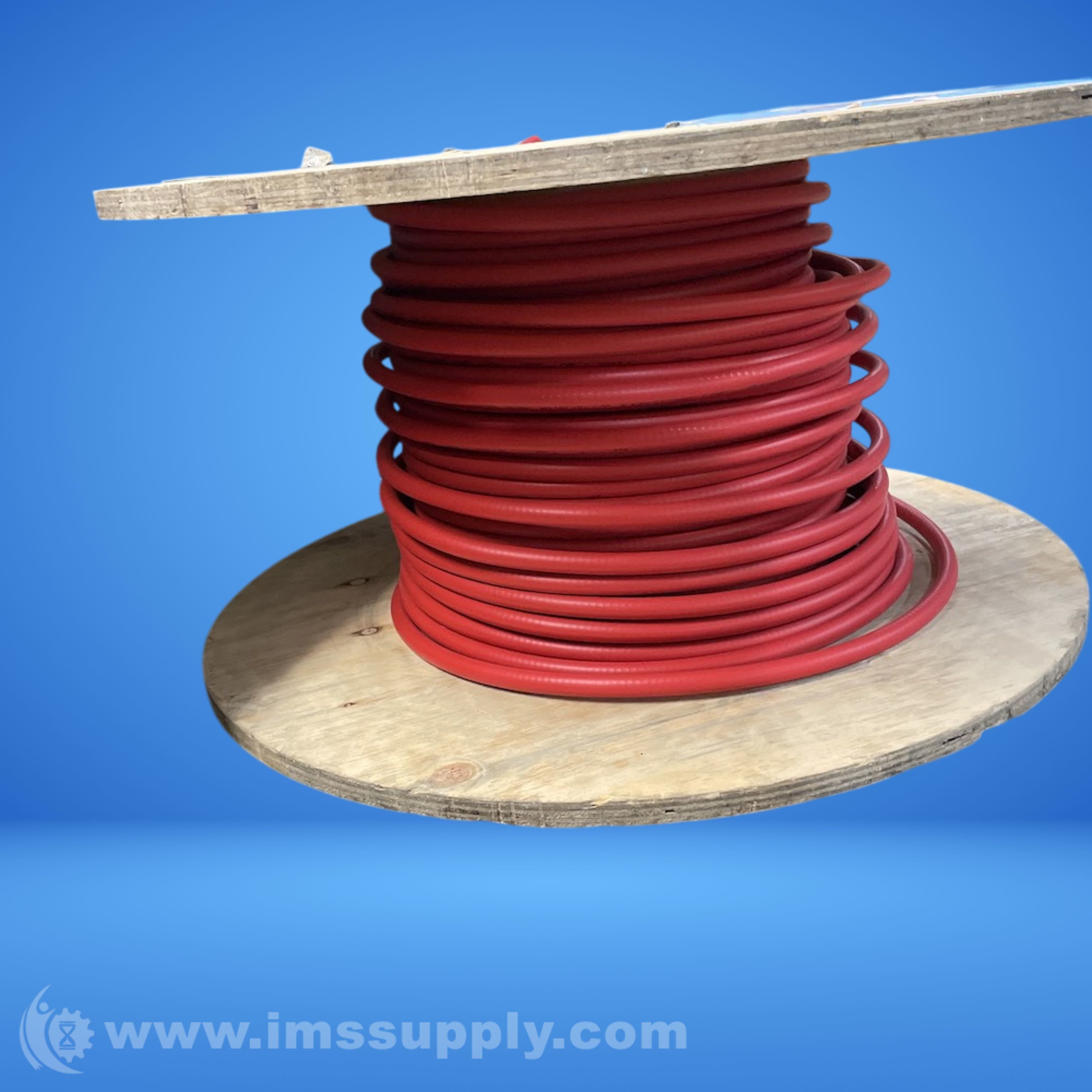

Andrew AL4RPV-50R-CBAND Coaxial Cable
HELIAX Plenum Rated Air Dielectric Coaxial Cable, corrugated aluminum, 1/2 in, Red PVC jacket

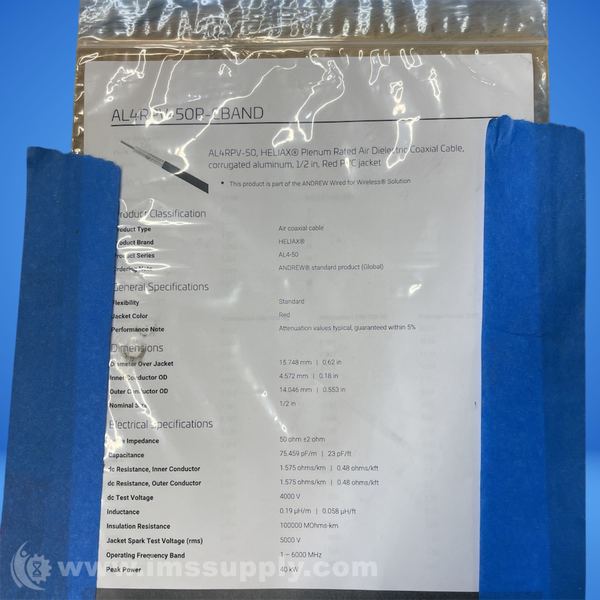

Specifications
- Product Type: Air coaxial cable
- Product Brand: HELIAX
- Product Series: AL4-50
- Flexibility: Standard
- Jacket Color: Red
- Diameter Over Jacket: 15.748 mm | 0.62 in
- Inner Conductor OD: 4.572 mm | 0.18 in
- Outer Conductor OD: 14.046 mm | 0.553 in
- Nominal Size: 1/2 in
- Cable Impedance: 50 ohm ±2 ohm
- Capacitance: 75.459 pF/m | 23 pF/ft
- dc Resistance, Inner Conductor: 1.575 ohms/km | 0.48 ohms/kft
- dc Resistance, Outer Conductor: 1.575 ohms/km | 0.48 ohms/kft
- dc Test Voltage: 4000 V
- Inductance: 0.19 µH/m | 0.058 µH/ft
- Insulation Resistance: 100000 MOhms-km
- Jacket Spark Test Voltage (rms): 5000 V
- Operating Frequency Band: 1 – 6000 MHz
- Peak Power: 40 kW
- Minimum Bend Radius, multiple Bends: 127 mm | 5 in
- Minimum Bend Radius, Single Bend: 63.5 mm | 2.5 in
- Number of Bends, minimum: 15
- Tensile Strength: 79 kg | 174.165 lb
- Bending Moment: 6.779 N-m | 5 ft lb
- Flat Plate Crush Strength: 1.429 kg/mm | 80 lb/in
- Installation temperature: -5 °C to +60 °C (+23 °F to +140 °F)
- Operating Temperature: -20 °C to +85 °C (-4 °F to +185 °F)
- Storage Temperature: -20 °C to +85 °C (-4 °F to +185 °F)
- Cable weight: 0.208 kg/m | 0.14 lb/ft
- Coax Construction: COAXIAL
- Conductor Material: BARE COPPER
- Conductor Type: STRANDED CONDUCTOR
- Dielectric Material: AIR
- Fire Rating: PLENUM
- Flooded: NO NOT FLOODED OVER BRAID
- Jacket Material: NO JACKET
- Outdoor: NO NOT OUTDOOR GRADE MATERIAL
- Screen/Shield Type: UNSHIELDED
- UNSPSC Code: 26121606
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, November 24, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
