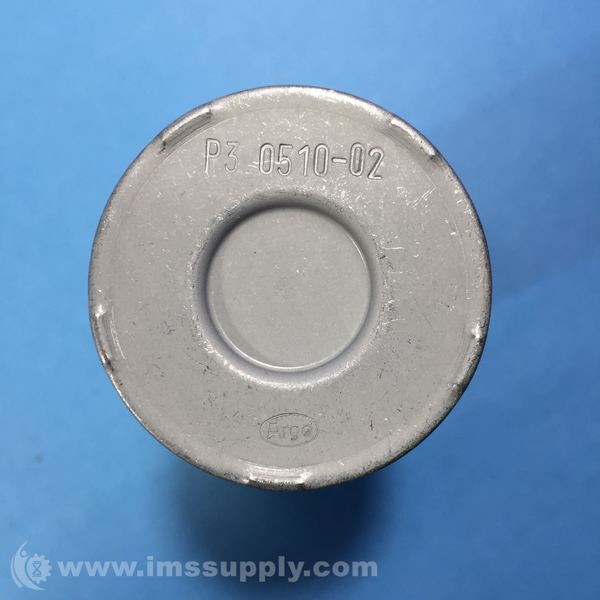

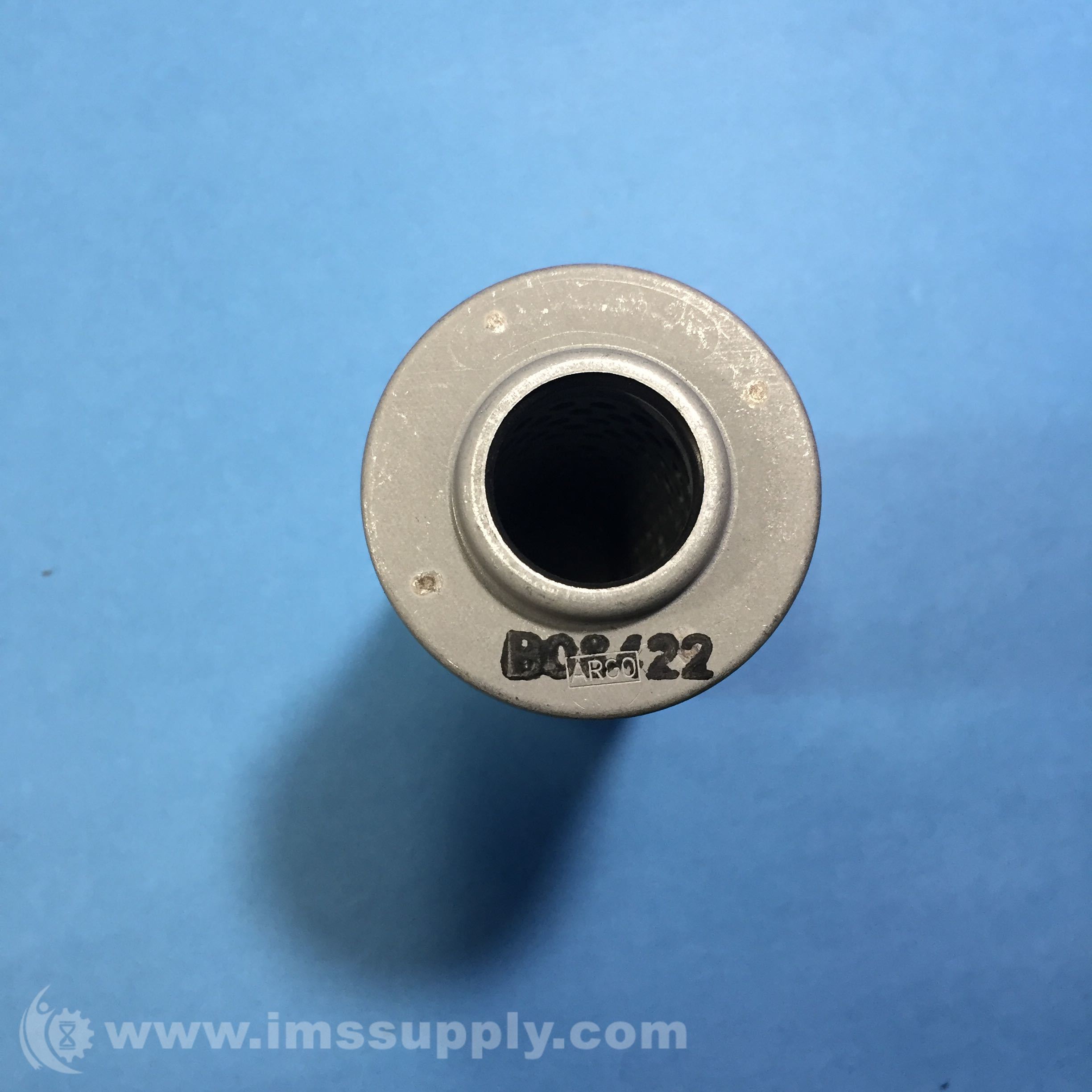

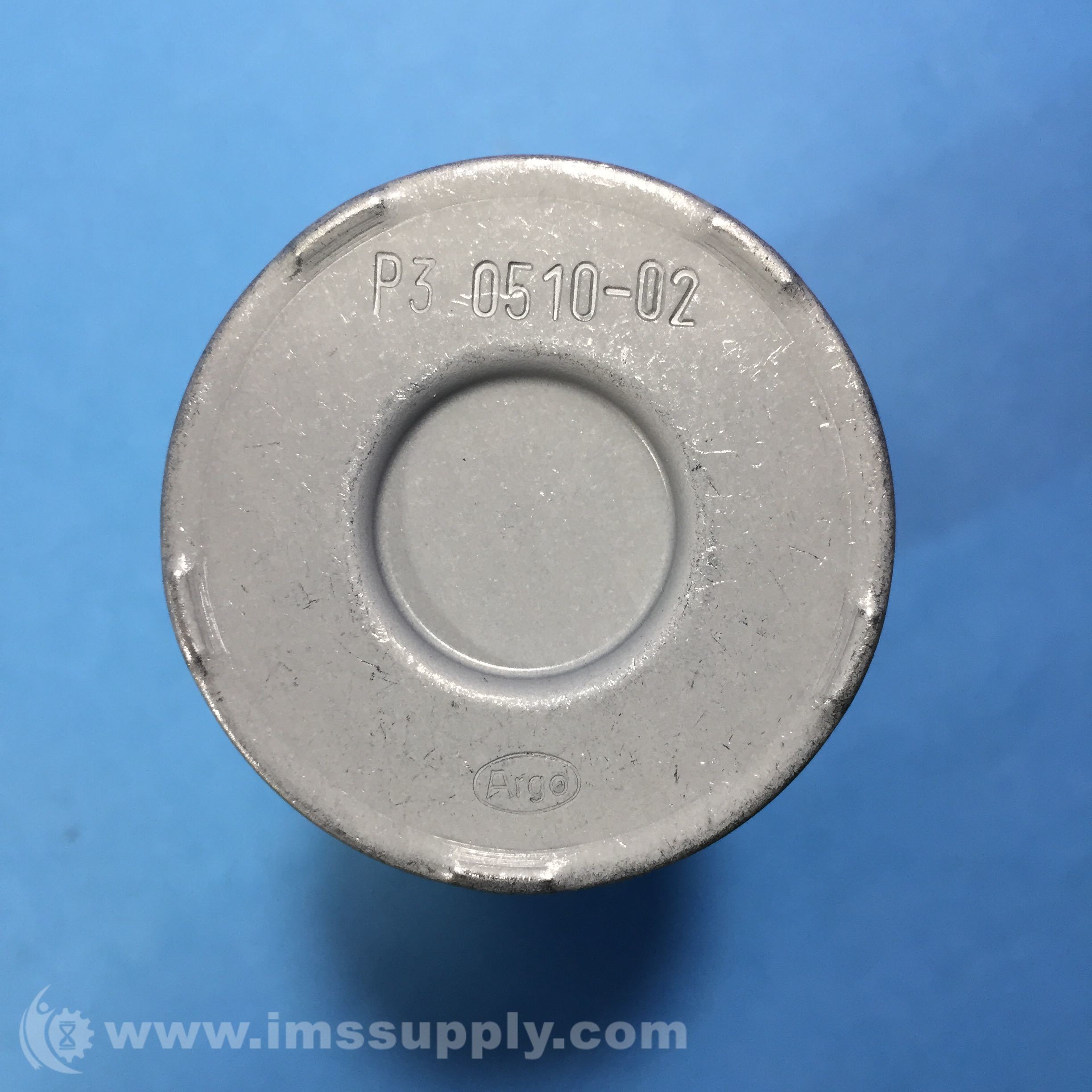

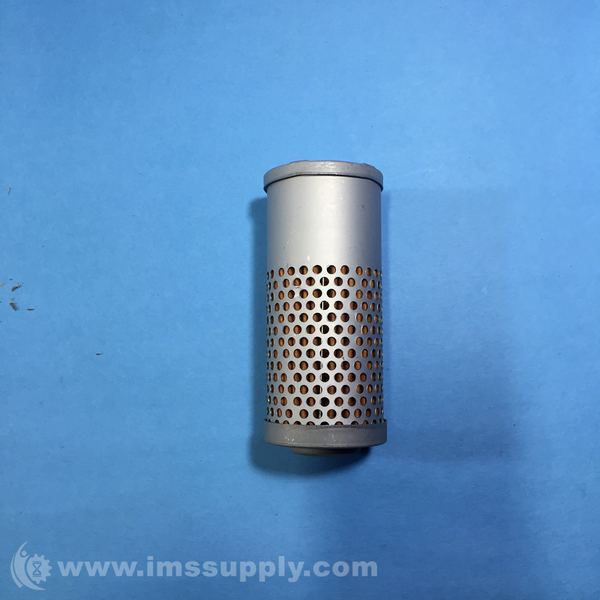

ARGO HYTOS P3 0510-02 FILTER ELEMENT
Quick Overview
Manufactured By: ARGO HYTOS
Manufacturer Part Number: P3-0510-02
IMS Product Code: 1815676
Packaging: Sold Individually
Description:
Argo Hytos P3 0510-02 Filter Element
Pressure Filter Element
Specifications
- Media: Microglass Fiber Media, Cellulose, Paper
- Seal Material: Buna (Nitrile), Nitrile, Viton
- End Caps: Corrosion Resistant Steel / Aluminum, Plated Steel
- Center Tube: Corrosion Resistant Steel, Plated Steel
- Outer Diameter: 1.75, 1 13/16", 1.78 IN (45.21 MM)
- Inner Diameter: 0.81, 13/16", 0.80 IN (20.32 MM)
- Length: 3.95, 4 1/8", 4.09 IN (103.89 MM)
- Collapse Rating/Collapse Pressure Rating: 450 psid, 145.0 psi, 305 PSID
- Filtration Rating/Micron Rating: Bx = 200 Bx[c] = 1000, 25µ @ ß2, 20.00 NOMINAL
- Direction of Flow: OUTSIDE->IN
- Recommended Changeout Differential Pressure: 20 PSID
- Maximum Temperature: 250 F
- Temperature Range: -20 - +210°F
- Configuration: SINGLE OPEN END
- Filter Area: 0.52 SQFT
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
