ARMSTRONG BI4 IN-LINE F&T STEAM TRAP
Quick Overview
Manufactured By: ARMSTRONG
Manufacturer Part Number: BI4
IMS Product Code: 2123416
Packaging: Sold Individually
Description:

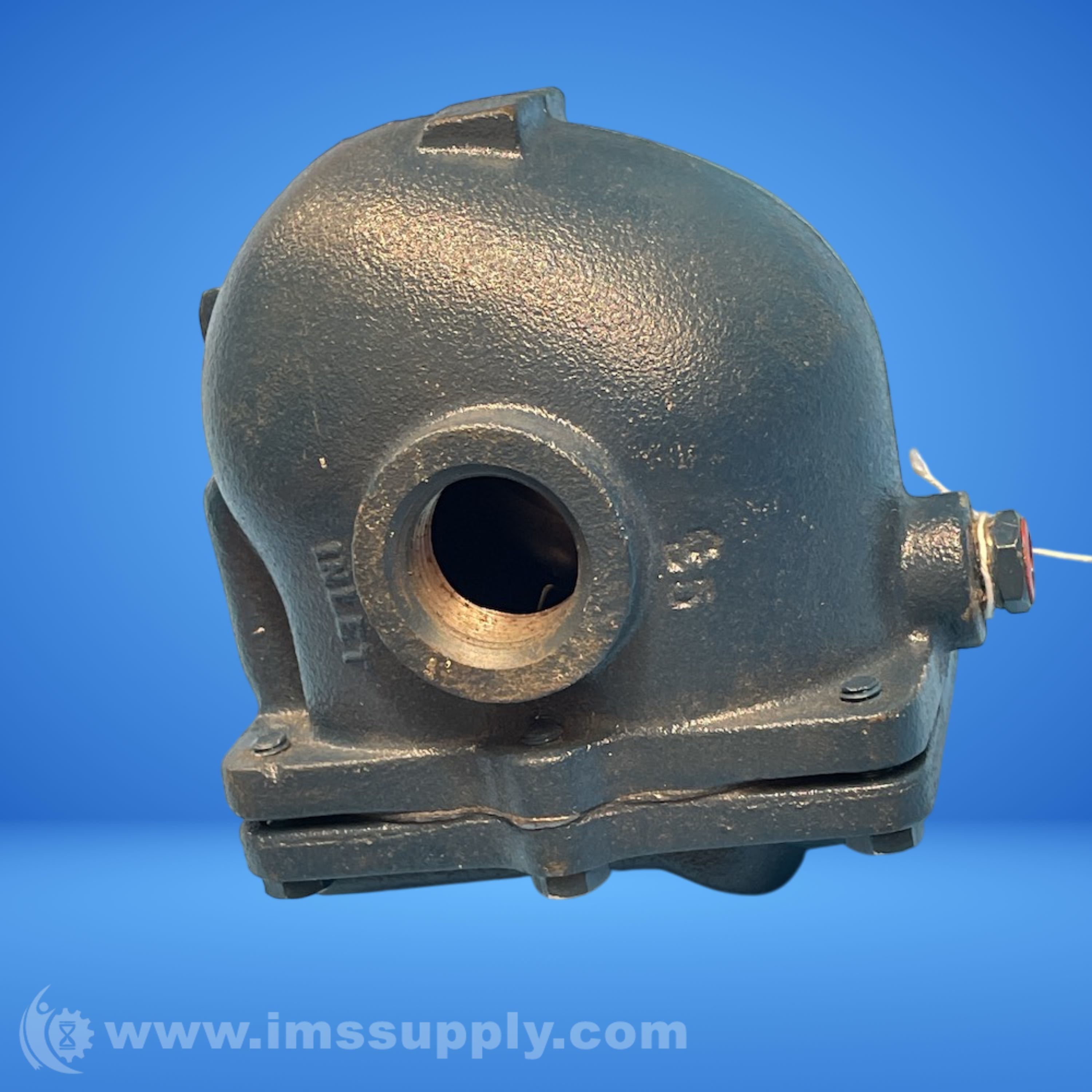

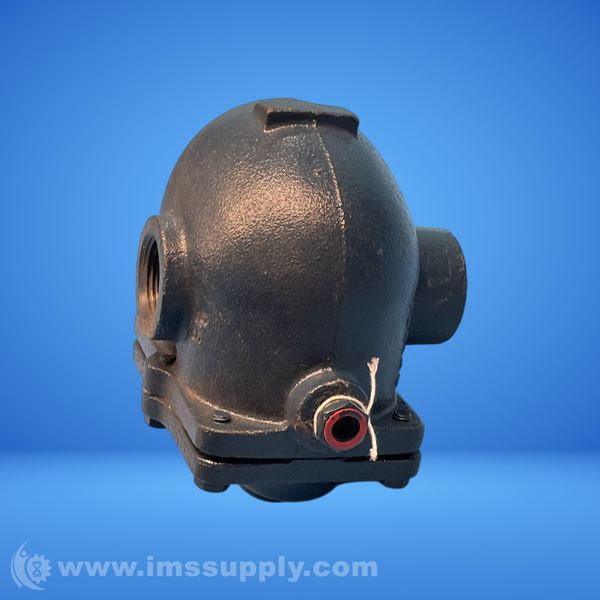

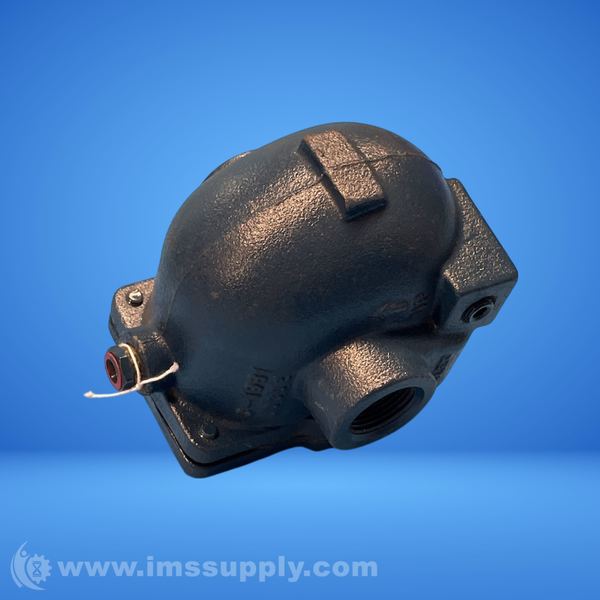

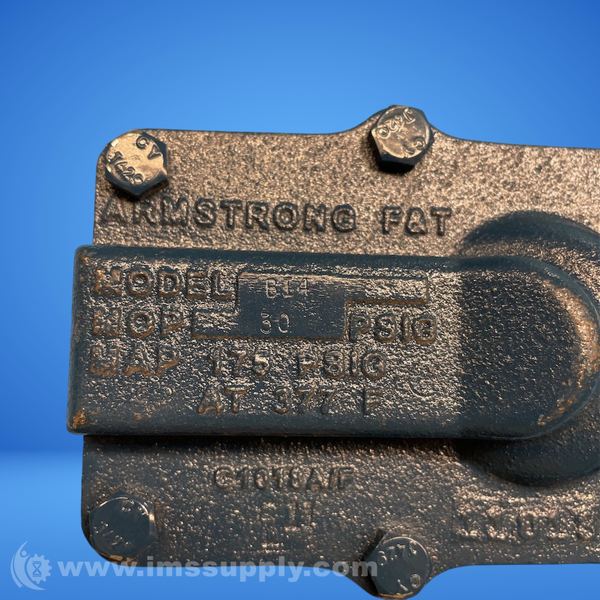

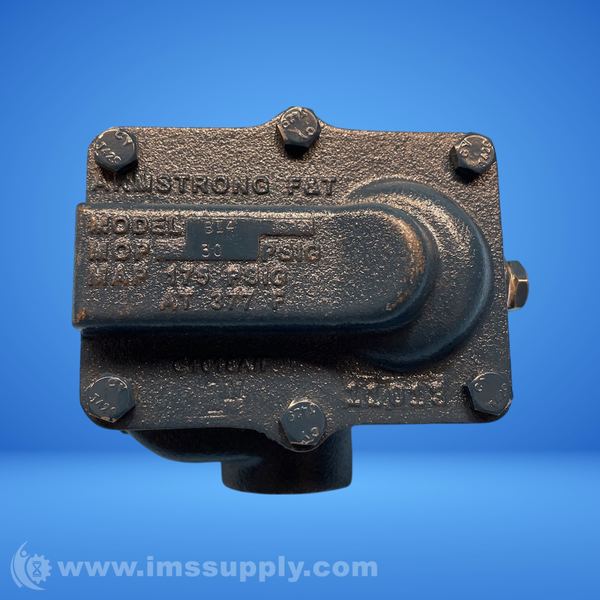

Armstrong BI4 In-Line F&T Steam Trap
Armstrong Model BI4 1 inch In-Line Float & Thermostatic Steam Trap rated for 15 psi maximum operating pressure
Specifications
- Body Material: Cast Iron
- Capacity: 620 - 2,100 #/hr
- Connection Orientation: Straight Thru Inlet & Outlet
- Connection Size: 1 in
- Connection Type: NPT
- Face to Face Dimension: 5 in
- Integral Vacuum Breaker: No
- Operating Pressure Rating: 15 psi
- Type: Float & Thermostatic
- Weight: 9.5 lbs
