ARO FLUID POWER A222SD-120-A 1/4" 120VAC 4-WAY

Call For Quote

Quick Overview

Manufactured By: ARO FLUID POWER
Manufacturer Part Number: A222SD-120-A
IMS Product Code: 1747400

Description:

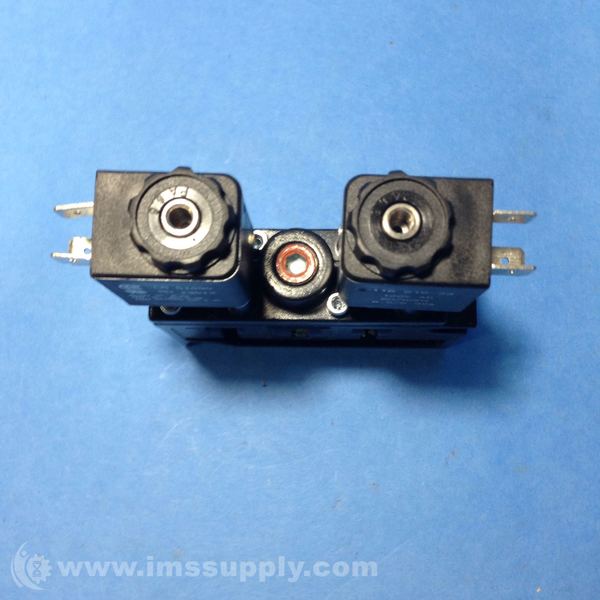

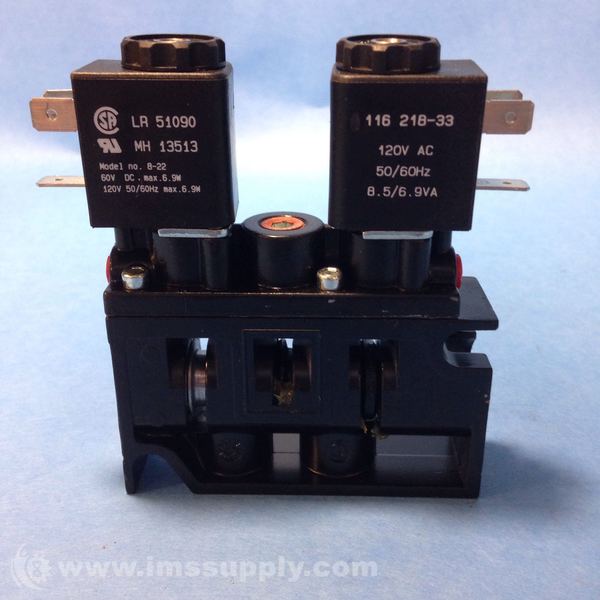

Aro Fluid Power A222SD-120-A  1/4" 120VAC 4-Way, 2-Position Solenoid Air Control Valve

  • Item: Solenoid Air ControlValve
  • Air Valve: Type 4-Way, 2-Position
  • Actuator / Return: Solenoid/Solenoid
  • Body Style: Stackable
  • Pipe Size; 1/4"
  • Voltage: 120VAC
  • CFM: 68
  • Coefficient of Volume: 1.9
  • Electrical Connections: DIN Connectors
  • Shifting Technology: Solenoid/Pilot
  • Pressure Range: 0 to 150 psi
  • Ambient Temp. Range: 0 Degrees to 180 Degrees F
  • Overall Height: 3-7/8"
  • Overall Length: 3-31/32"
  • Overall Width: 1"
  • NEMA Classification: NEMA 4

Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.

Shipping Times Provided In Quote

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Aro Fluid Power. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
