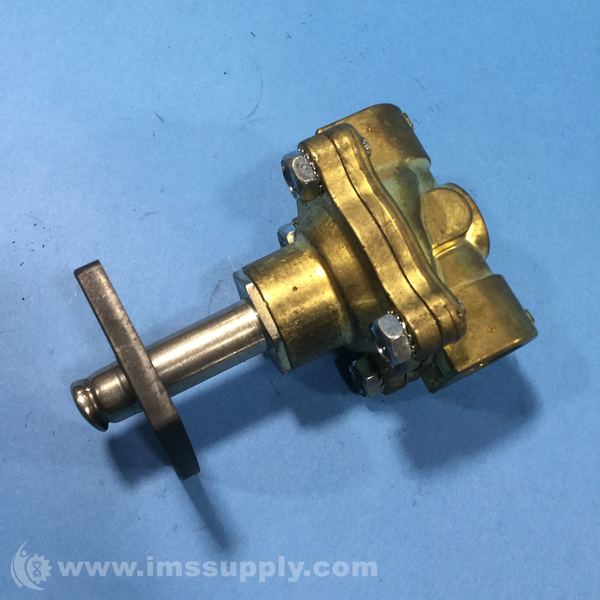

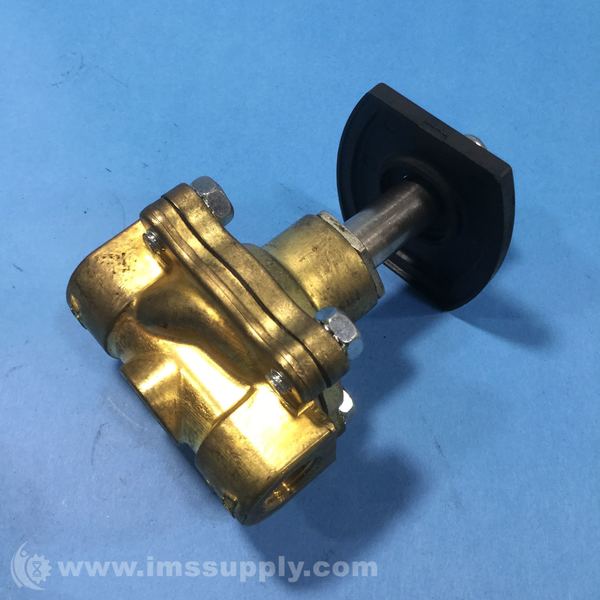

ASCO 8210G033 24/DC 2-WAY BRASS SOLENOID VALVE
Quick Overview
Manufactured By: ASCO
Manufacturer Part Number: 8210G033 24/DC
IMS Product Code: 1838999
Packaging: Sold Individually
Description:
Asco 8210G033 24/DC 2-Way Brass Solenoid Valve
3/8In NO AWO 125#
Specifications
- Manufacturer: ASCO
- Size: 3/8 In
- Body Design: 2-Way
- Operation: Normally Open
- Voltage: 24 DC
- Series: 8210
- Body Material: Brass
- Port Connection: 3/8 in. Female Threaded x 3/8 in. Female Threaded
- Orifice Diameter: 5/8 In
- Max Fluid Temp: 150 degrees F
- Ambient Temp. Range: 32 to 104 degrees F
- Cv: 3
- Min. OPD: 0 PSI
- Max OPD Air: 125 PSI
- Max OPD Water: 125 PSI
- Max OPD Lt. Oil: 80 PSI
- Coil Wattage: 11.6
- Electrical Connection: 1/2 Conduit w/ 18 Leads
- Solenoid Enclosure: Watertight
- Construction: Pilot Operated
- Seat Material: NBR
- Media Handled: Air-Inert Gas,Light Oil,Water
- Pressure Rating: 0 to 125 psi (Air-Inert Gas/Water), 0 to 80 psi (Light Oil)
- Valve Position: Normally Open (NO)
- Valve Type: Pilot-Operated
- Function: 2-Way/2-Position, Diaphragm, Pilot Operated
- Seal Material: NBR
- Enclosure (NEMA Rating): NEMA 1/2/3/3S/4/4X
- Wattage: 11.6 W
- Type: 2 Way
- Mode: Normally Open
- Coil Class: Class F
- Coil Number: 238710-006-D
- Coil Voltage: 24/DC
- Housing Type: Nema 4X
- Lead Length: 18
- Max Ambient Temperature: 104
- Min Ambient Temperature: 32
- Mounting Direction: Any
- Orifice Size: 5/8
- Rebuild Kit Number: 302449
- Shading Ring: Copper
