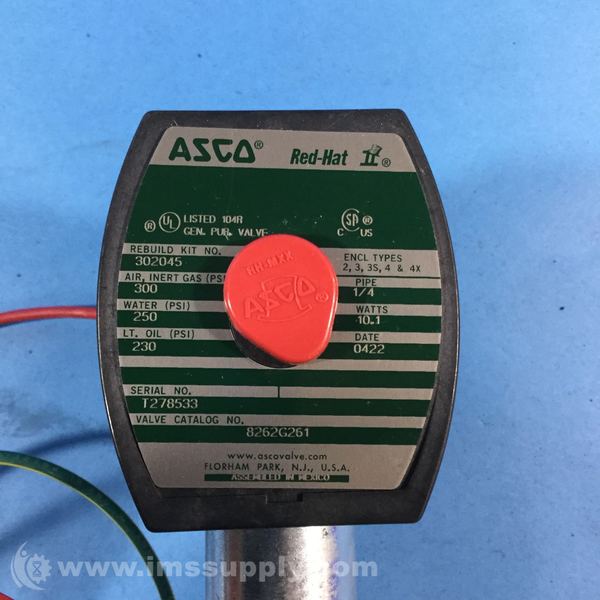

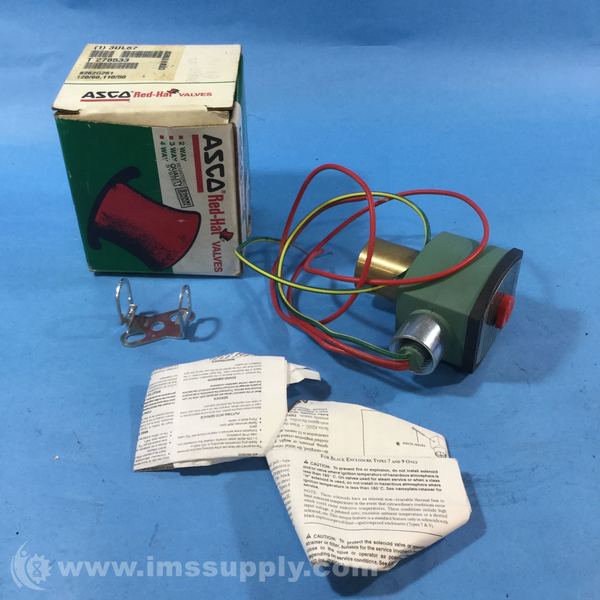

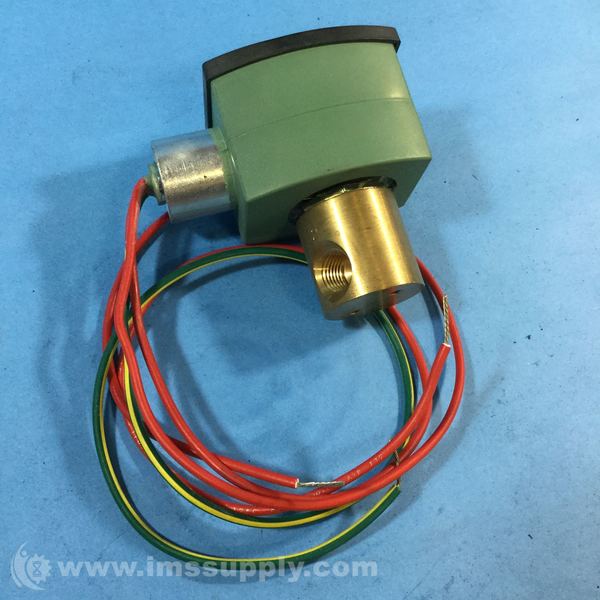

ASCO 8262G261 120VAC BRASS SOLENOID VALVE, NORMALLY OPEN
Quick Overview
Manufactured By: ASCO
Manufacturer Part Number: 8262G261
IMS Product Code: 1787782
Packaging: Sold Individually
Description:
Asco 8262G261 120VAC Brass Solenoid Valve, Normally Open, 1/4" Pipe Size
Specifications:
- Item: Solenoid Valve
- Valve Ways and Positions: 2-Way/2-Position
- Valve Configuration: Normally Open
- Media - Valves: Air,Inert Gases,Light Oil,Water
- Pipe Size - Valves 1/4"
- Min. Operating Pressure Differential: 0 psi
- Max. Operating Pressure Differential Air/Inert Gas: 300 psi
- Max. Operating Pressure Differential Light Oil: 230 psi
- Max. Operating Pressure Differential Water: 250 psi
- Voltage: 120VAC
- Coefficient of Volume: 0.17
- Body Material - Valves: Brass
- Coil Insulation Class: F
- Orifice Dia.: 3/32"
- NEMA Rating: 1, 2, 3, 3S, 4, 4X
- IP Rating: 66 Max.
- Fluid Temp.: 140 Degrees F
- Hz 60
- Watts 10.1
- Coil Enclosure: Watertight No Junction Box
- Electrical Connections: 1/2" Conduit w/18" Leads
- Overall Length: 1-1/4"
- Overall Width: 1-31/32"
- Overall Height: 3-5/16"
- Center Line Pipe Center: Size 2-7/8"
- Red Hat
- Discontinued
