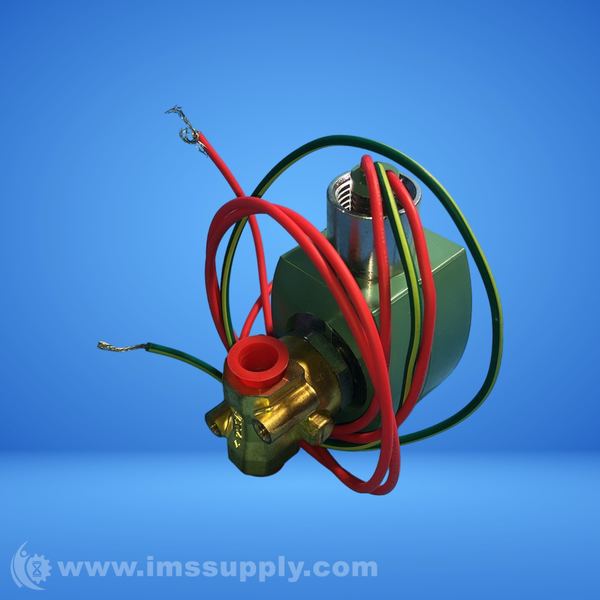

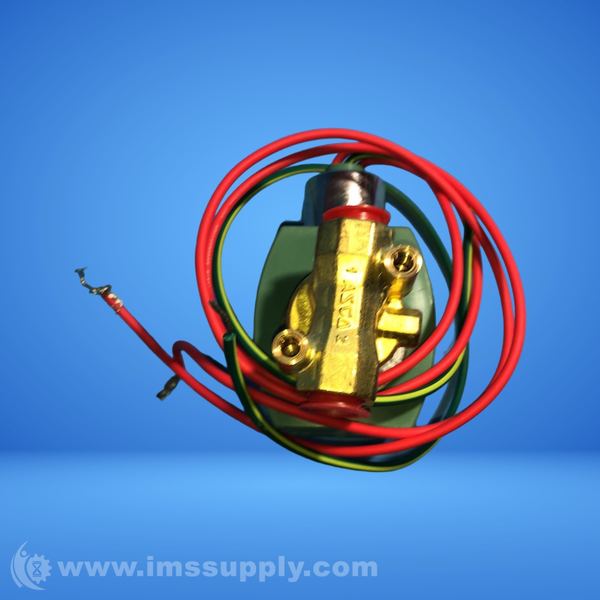

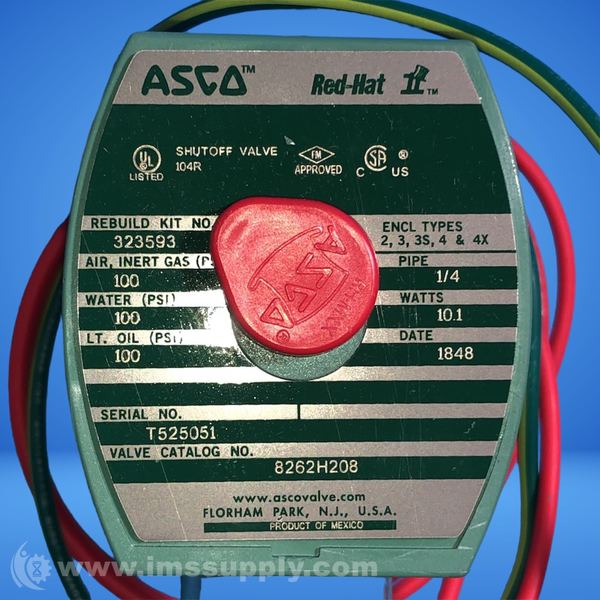

ASCO 8262H208 2-WAY SOLENOID VALVE
Quick Overview
Manufactured By: ASCO
Manufacturer Part Number: 8262H208
IMS Product Code: 2027585
Packaging: Sold Individually
Description:
Asco 8262H208 2-Way Solenoid Valve
2-way, normally closed solenoid valve with brass body and NPTF ports. Handles air, inert gas, water, and light oil. 1/4 inch pipe size, 7/32 inch orifice, 0.73 Cv flow factor.
Specifications
- Body Material: Brass
- Media: Air, Inert Gas, Light Oil, Water
- Pipe / Port Size: 1/4 "
- Port Type: NPTF
- Function: 2 way - 2/2 Normally Closed
- Flow: 0.73 Cv
- Operating Pressure Rating Min: 0 psi
- Operating Pressure Rating Max: 100 psi
- Orifice Size: 7/32 in
- Voltage: 24VAC, 120/60 VAC, 110/50 VAC, 240VAC
- Coil Insulation Class: F
- Seal Material: NBR
- NEMA Rating: 1, 2, 3, 3S, 4, 4X
- Fluid Temp. Range: -13°F - 180°F
- Watts: 10.1 W
- Approvals: CE, CSA, FM, UL

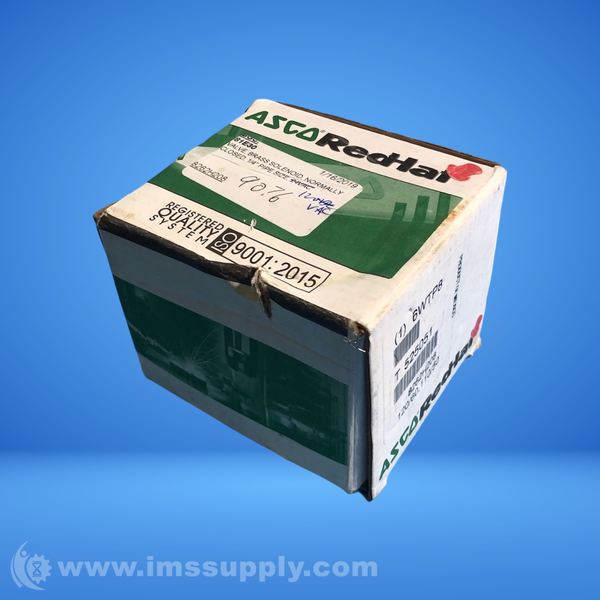

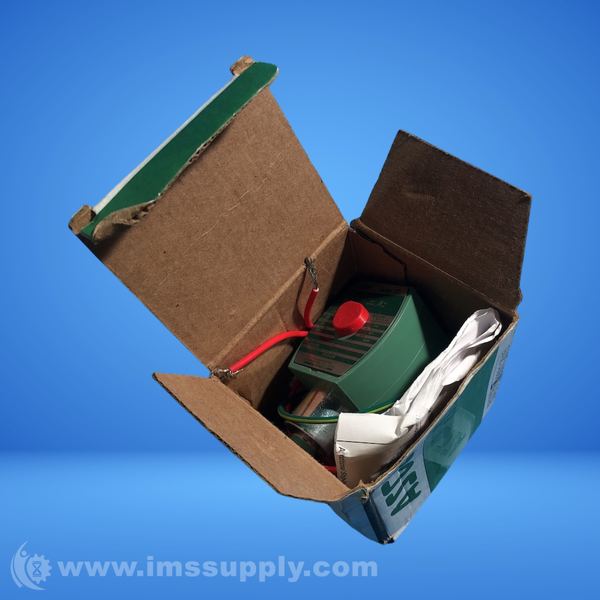

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 1 minutes.
