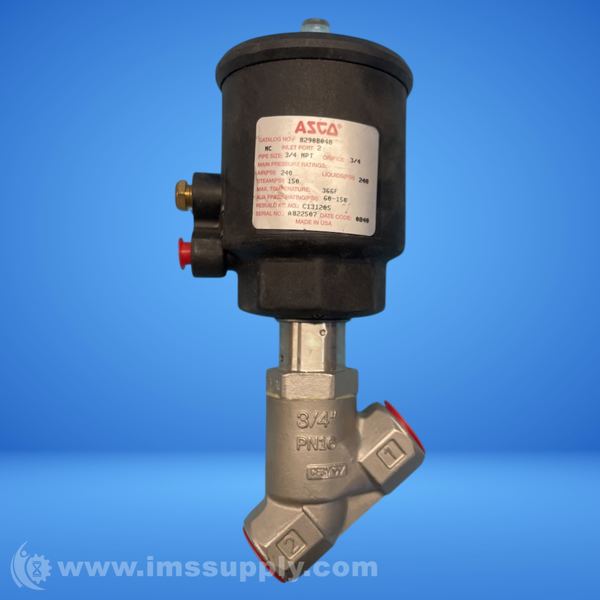

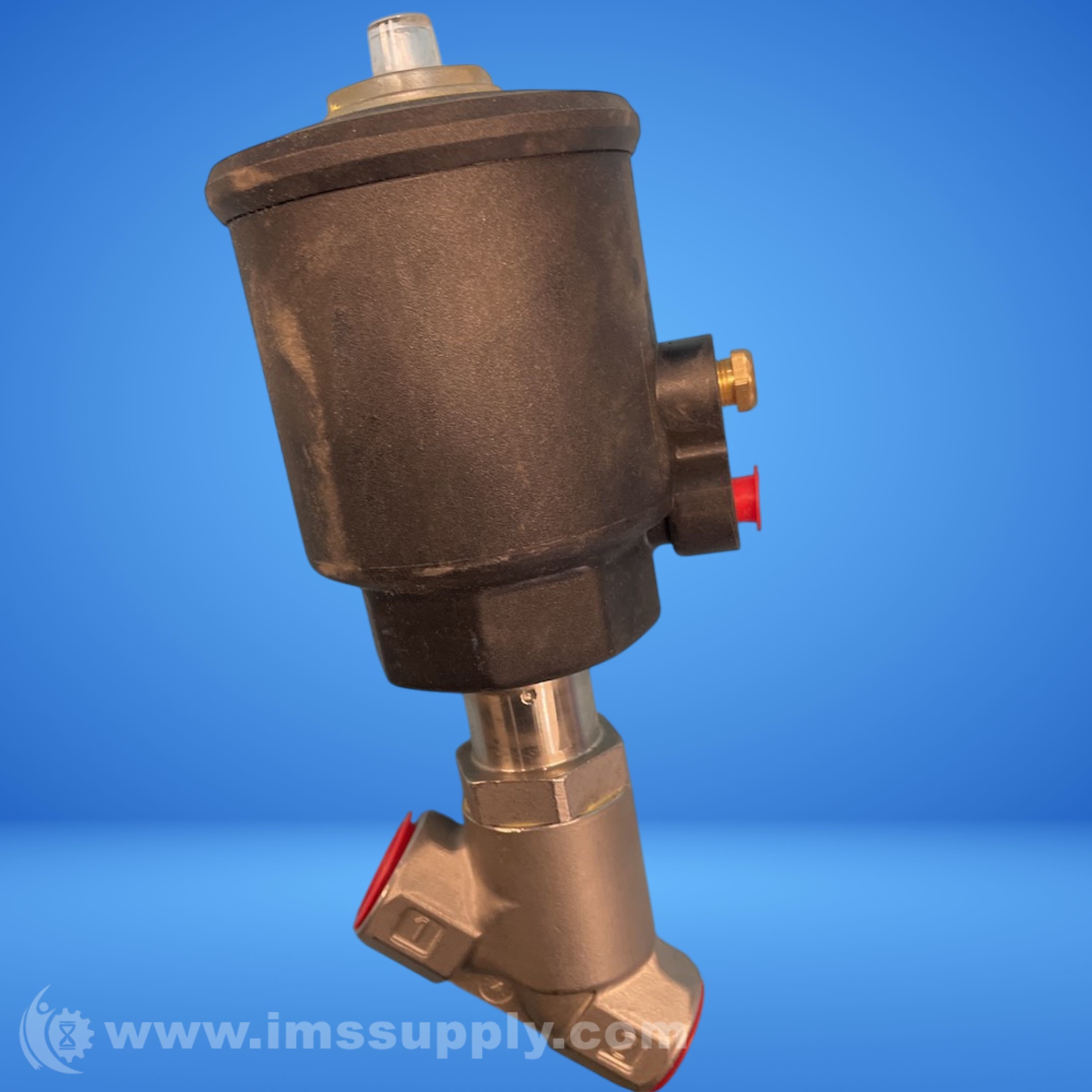

ASCO 8290B048 3/4" STAINLESS STEEL PISTON VALVE
Quick Overview
Manufactured By: ASCO
Manufacturer Part Number: 8290B048
IMS Product Code: 2142450
Packaging: Sold Individually
Description:
Asco 8290B048 3/4" Stainless Steel Piston Valve
2-Way Normally Closed Angle-Body Piston Valve with Stainless Steel Body and Teflon Elastomer Seals. 3/4" NPT Port Size, 3/4" Orifice, Cv=11.
Specifications
- Body Material: Stainless Steel
- Seal Material: Teflon Elastomer, PTFE
- Pipe Size: 3/4"
- Orifice: 3/4"
- Cv: 11
- Operation: Normally Closed
- Max Pressure: 240 PSI (Fluids), 150 PSI (Steam)
- Min Pressure: 0 PSI
- Max Media Temperature: 366°F
- Pilot Pressure: 60-150 PSI
- Ambient Temperature Range: 15 to 140°F
- Port Type: NPT
- Enclosure: NEMA 1
- Weight: 1.77 lbs, 3.15 lb
