ASCO 8320G184 3-WAY SOLENOID VALVE
Quick Overview
Manufactured By: ASCO
Manufacturer Part Number: 8320G184
IMS Product Code: 2156146
Packaging: Sold Individually
Description:

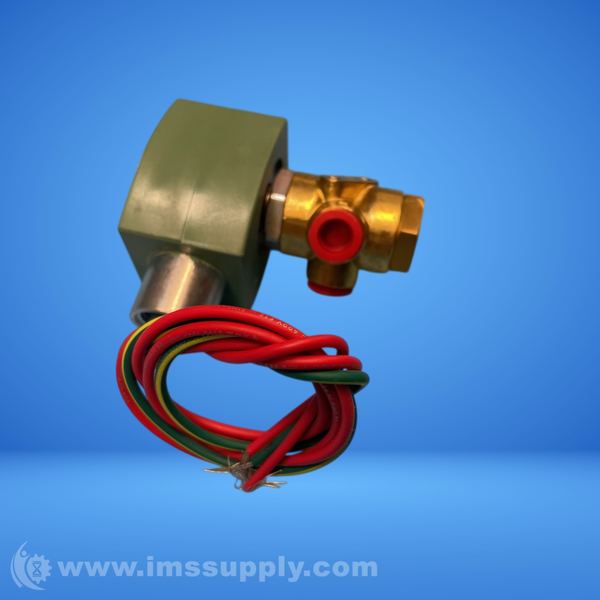

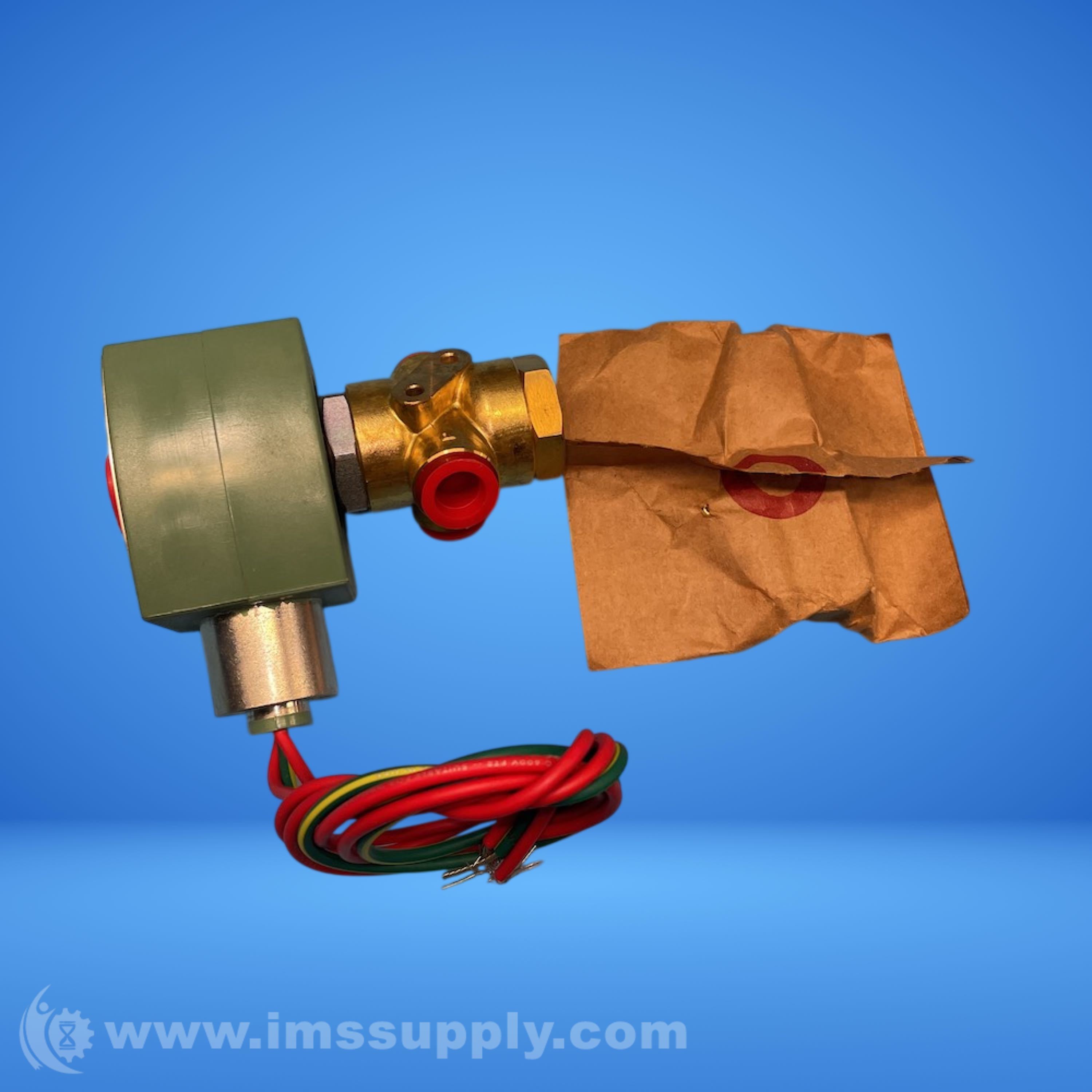

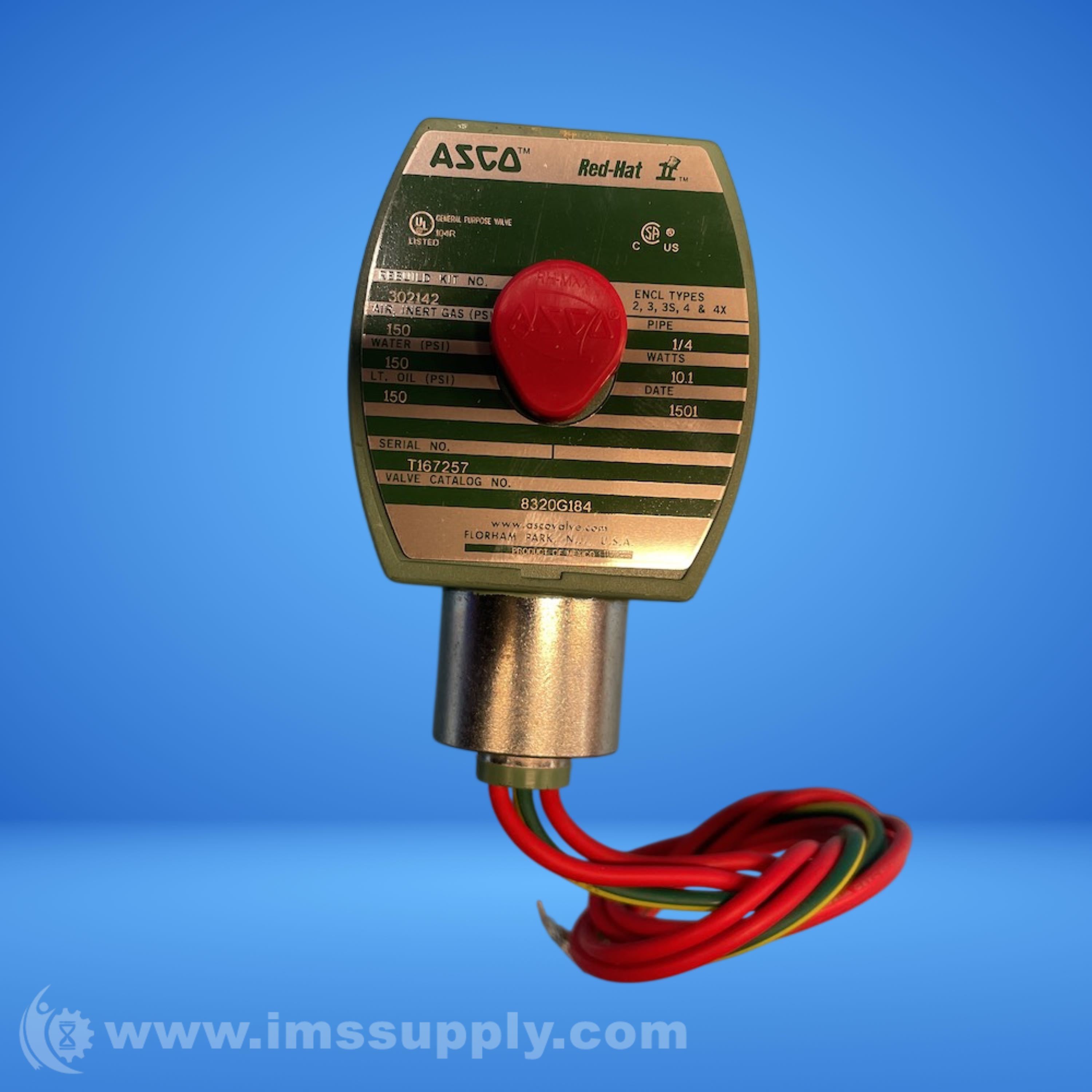

Asco 8320G184 3-Way Solenoid Valve
3-Way normally closed solenoid valve with brass body and Buna N seals. 1/4" NPT connection, 3/32" orifice, 0.12 Cv flow rate. Operates at 24 VDC, with NEMA 1, 2, 3, 3S, 4, and 4X enclosure rating.
Specifications
- Body Material: Brass
- Seal Material: Buna N
- Pipe Size: 1/4 in
- Orifice Size: 3/32 in
- Cv: 0.12
- Min Pressure: 0 PSI
- Max Pressure: 150 PSI
- Max Media Temperature: 200 degrees F
- Voltage: 24 VDC
- Wattage: 11.6 W
- Enclosure Rating: NEMA 1, 2, 3, 3S, 4, and 4X
- Function: 3-Way
- Valve Position: Normally Closed
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
