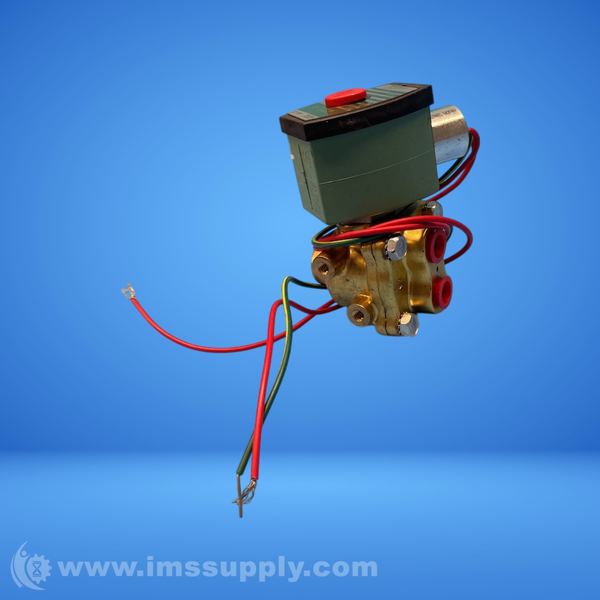

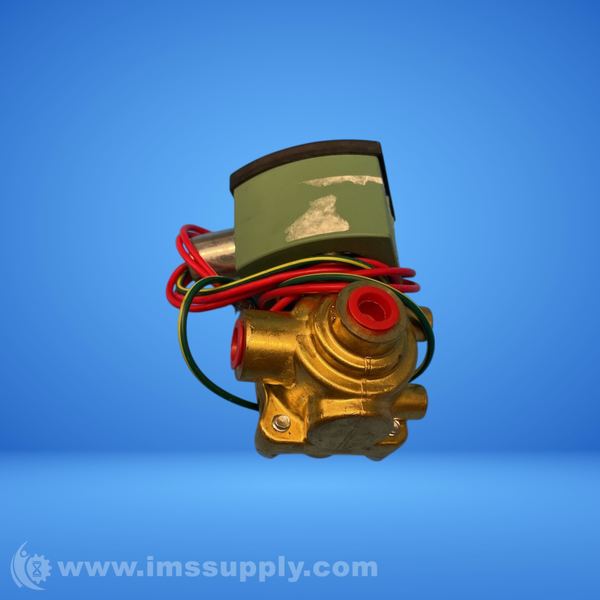

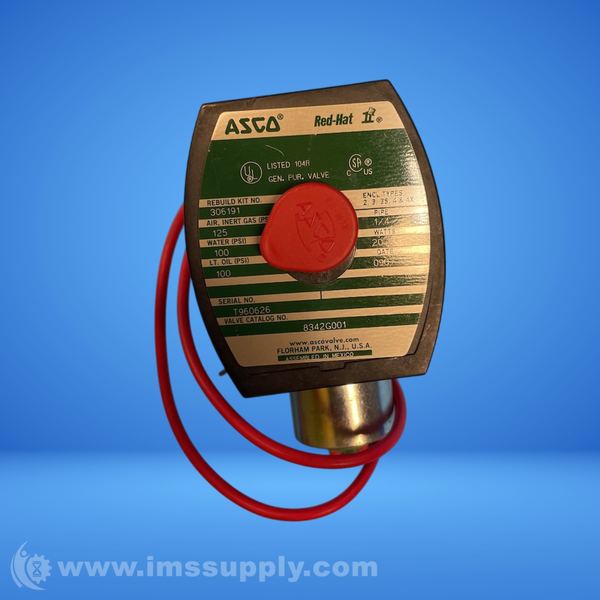

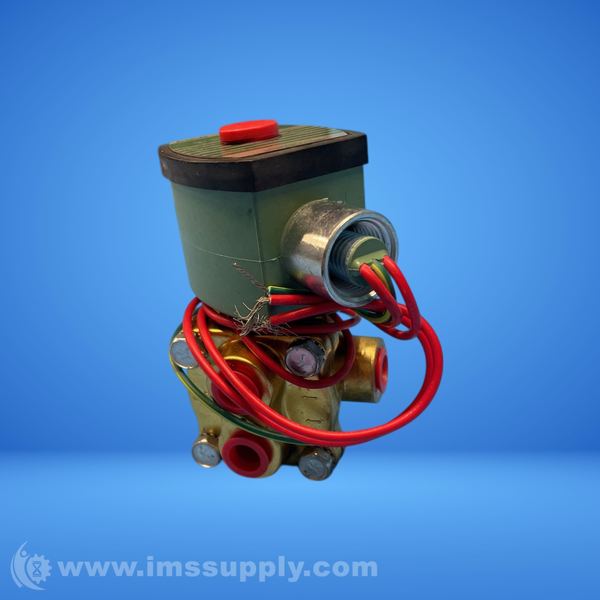

ASCO 8342G001 4-WAY SOLENOID VALVE
Quick Overview
Manufactured By: ASCO
Manufacturer Part Number: 8342G001
IMS Product Code: 2023875
Variation: Unspecified
Unspecified
Voltage: 120/60VAC
Packaging: Sold Individually
Description:
Asco 8342G001 4-Way Solenoid Valve
4-Way ASCO Solenoid Valve. Brass Body, Buna N Elastomer Seals. 1/4" Pipe Size, 3/16" Orifice, Cv=0.7. Pressure in PSI: Min: 0, Max: Air=125, Water=100, Oil=100, Max. Media Temperature: 160 F. Enclosure: General Purpose and Watertight: NEMA 1, 2, 3, 3S, 4, and 4X.
Specifications
- Valve Actuation: Solenoid - Direct Acting
- Body Material: Brass
- Media: Air, Inert Gas, Light Oil, Water
- Pipe / Port Size: 1/4 "
- Port Type: NPTF
- Function: 4 way - 4/2
- Flow: 0.70 Cv
- Voltage: 120/60 VAC
- Operating Environment: Indoor, Outdoor
- Type: 4-way
- NPT: 1/4"
- Solenoid: Single Solenoid
- Service: General Service
- Orifice Size: 3/16 in
- Operating Pressure Rating (Air) Min: 0 psi
- Operating Pressure Rating (Air) Max: 125 psi
- Operating Pressure Rating (Water & Lt Oil) Min: 0 psi
- Operating Pressure Rating (Water & Lt Oil) Max: 100 psi
- Size: 1/4 In
- Orifice Diameter: 3/16 In
- Body Design: 4-Way
- Valve Service: General Service
- Series: 8342
- Max Fluid Temp: 160F
- Ambient Temp. Range: 32 to 125F
- Cv: 0.7
- Min. OPD: 0 PSI
- Max OPD Air: 125 PSI
- Max OPD Water: 100 PSI
- Max OPD Lt. Oil: 100 PSI
- Coil Wattage: 20.1

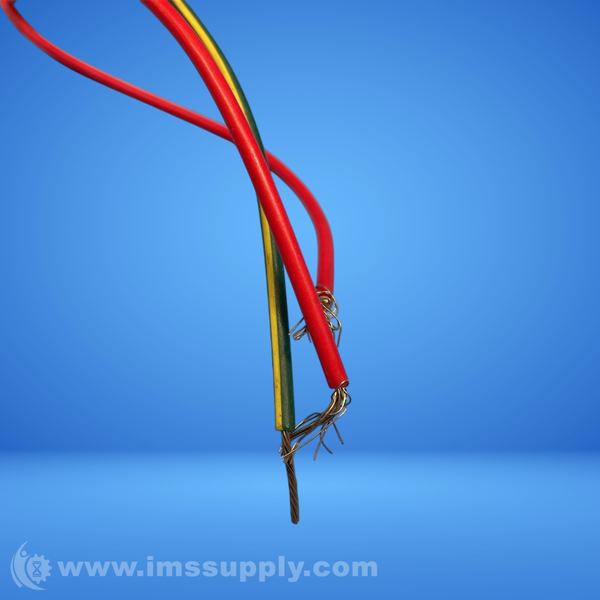

- Electrical Connection: 1/2" Conduit w/ 18" Leads
- Solenoid Enclosure: Watertight
- Construction: Single Solenoid - Direct Acting
- Seat Material: PTFE
- Enclosure: NEMA 1, 2, 3, 3S, 4, and 4X
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 59 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 59 minutes.
