ASCO EF8320G184 3-WAY BRASS SOLENOID VALVE
Quick Overview
Manufactured By: ASCO
Manufacturer Part Number: EF8320G184
IMS Product Code: 2016656
Packaging: Sold Individually
Description:

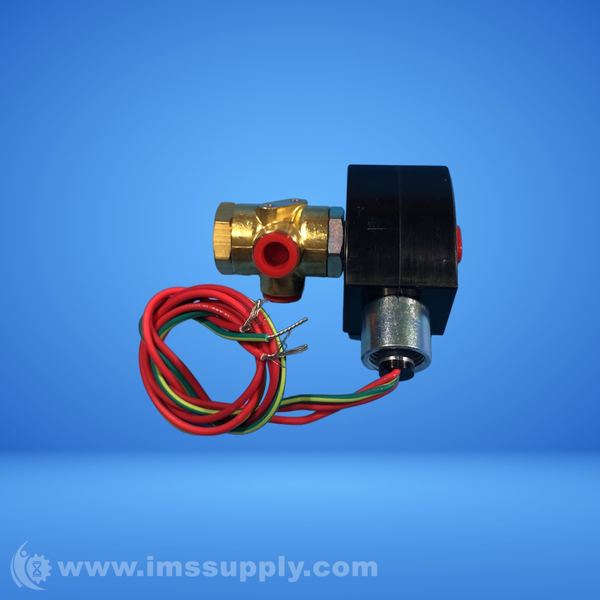

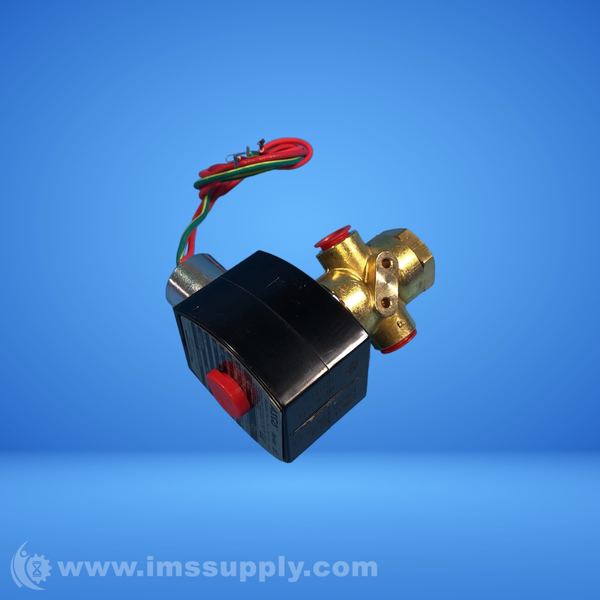

Asco EF8320G184 3-Way Brass Solenoid Valve
3-way normally closed explosion-proof solenoid valve with brass body and Buna-N seals. 1/4" NPT connection, 3/32" orifice, 0.12 Cv flow rate. 24 VDC operation, 11.6W power consumption. Max 115 PSI pressure, 150�F temperature.
Specifications
- Body Material: Brass
- Seal Material: NBR/Buna-N
- Port Connection: 1/4" Female NPT
- Orifice Diameter: 3/32"
- Flow Rate (Cv): 0.12
- Voltage: 24 VDC
- Wattage: 11.6 W
- Max Pressure: 115 PSI
- Max Temperature: 150�F
- Operation: Normally Closed
- Configuration: 3-Way/2-Position
- Enclosure: Explosionproof & Watertight

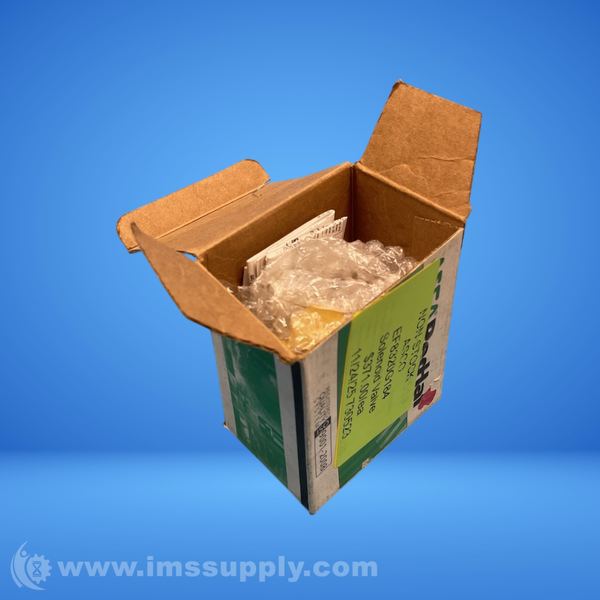

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
