ASCO HB26A215 MINIATURE PRESSURE SWITCH
Quick Overview
Manufactured By: ASCO
Manufacturer Part Number: HB26A215
IMS Product Code: 2123076
Packaging: Sold Individually
Description:

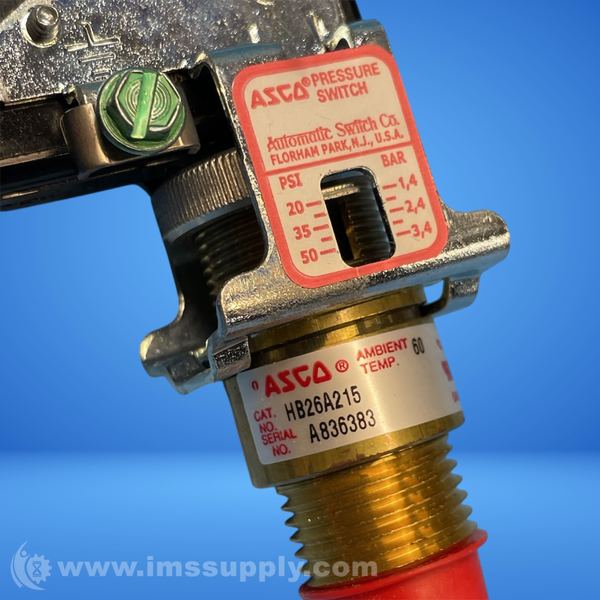

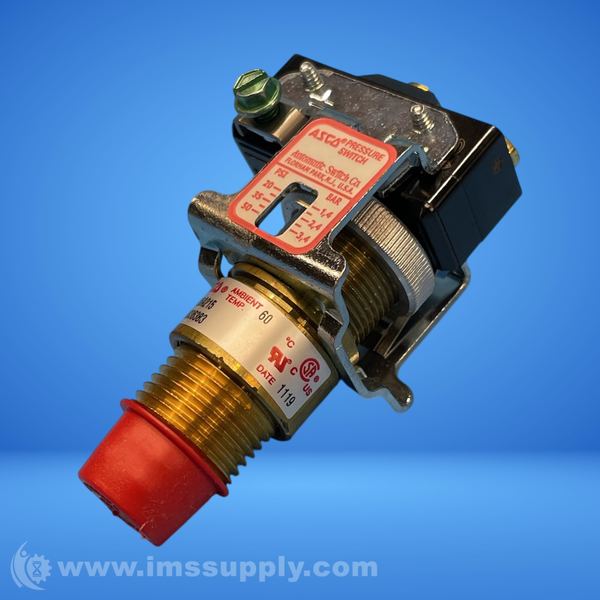

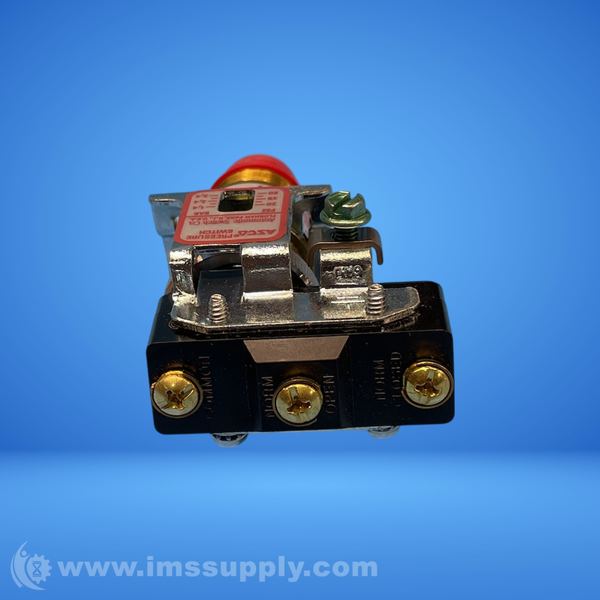

Asco HB26A215 Miniature Pressure Switch
Miniature pressure switch with 1/8 internal NPT connection, SPDT contact configuration, and open frame enclosure made of brass. Operating pressure range is 20 to 50 PSIG, with a Buna-N diaphragm/piston sensor.
Specifications
- Connection Type: 1/8 Internal Threaded

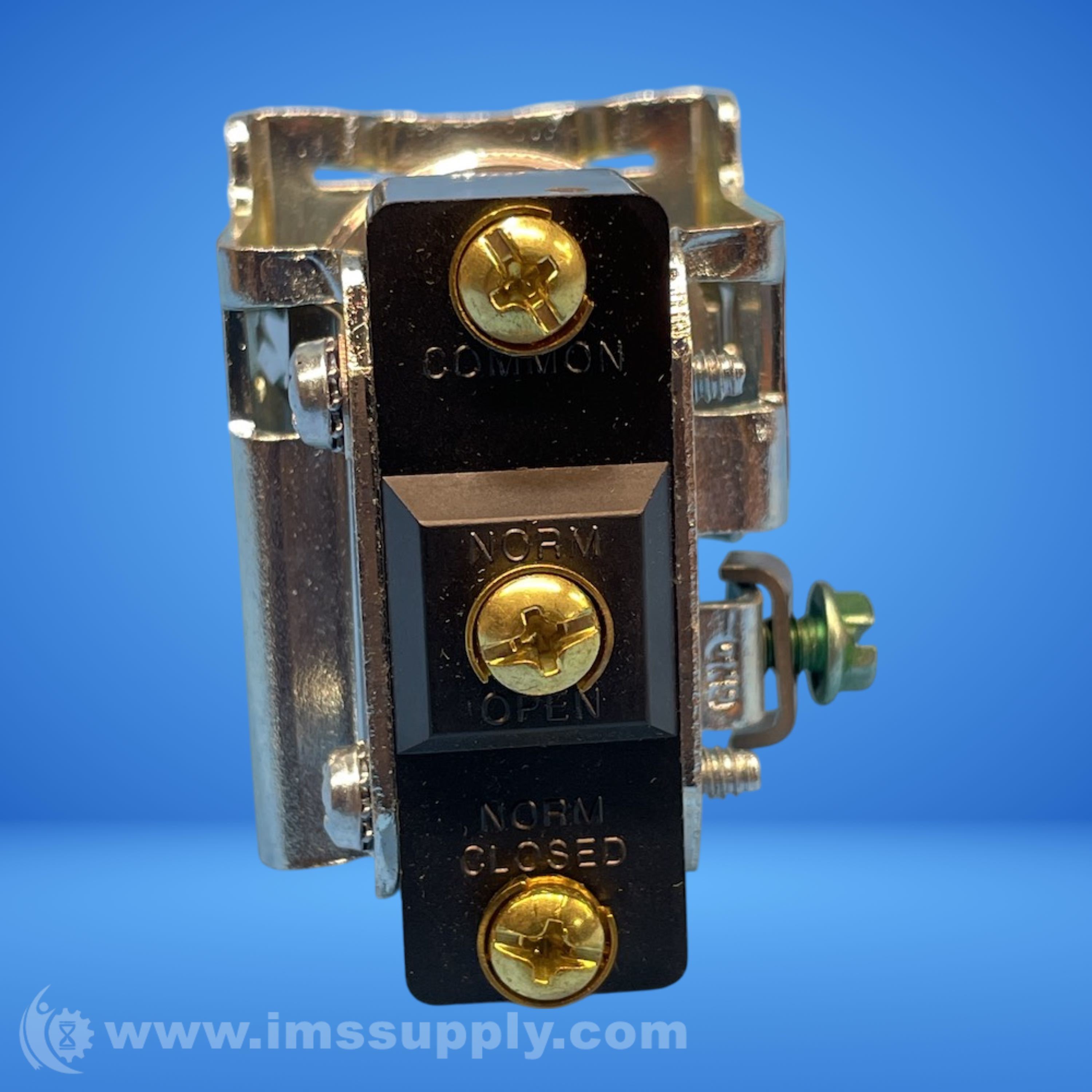

- Contact Configuration: SPDT
- Current Rating: 15 A @ 125 VAC/10 A @ 250 VAC, 0.5 A @ 125 VDC/1/4 A @ 250 VDC, 1/8 HP and 1/4 HP
- Enclosure: Open Frame
- Enclosure Material: Brass
- Operating Pressure Rating: 20 to 50 PSIG
- Operator Type: Buna-N Diaphragm/Piston Sensor
- Product Family: Series H
- Operating Range: 20-50 psi adjustable
- Deadband Range: 2.4 psi
- Proof Pressure: 250 psi
- Construction: Open frame, Type 1 general purpose or Type 4 watertight enclosures

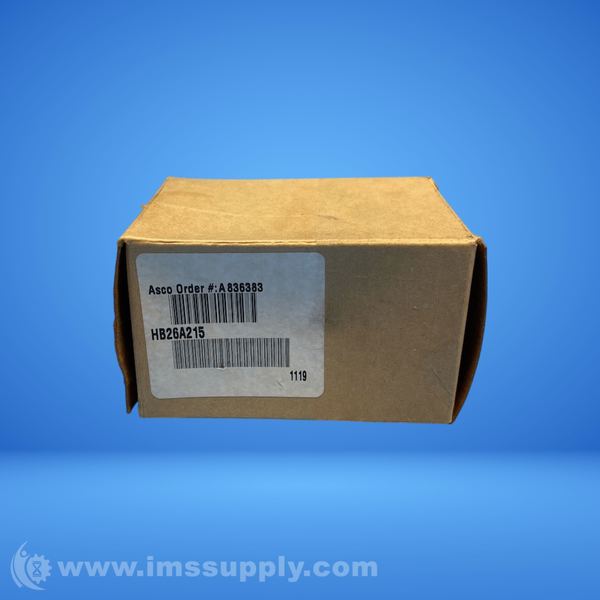

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, September 8, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
