ASCO SC8356A002V 3-WAY SOLENOID VALVE
Quick Overview
Manufactured By: ASCO
Manufacturer Part Number: SC8356A002V
IMS Product Code: 2152616
Packaging: Sold Individually
Description:

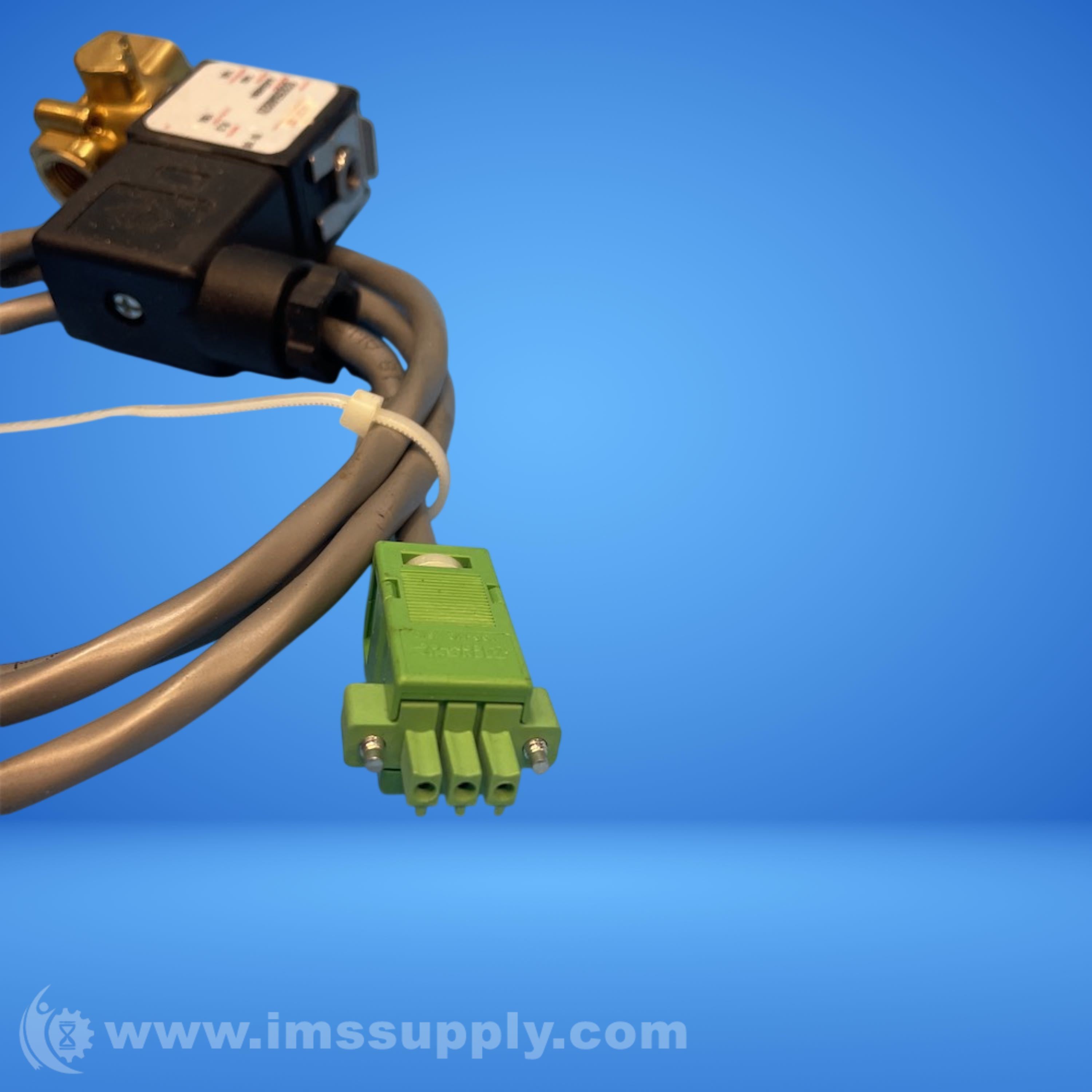

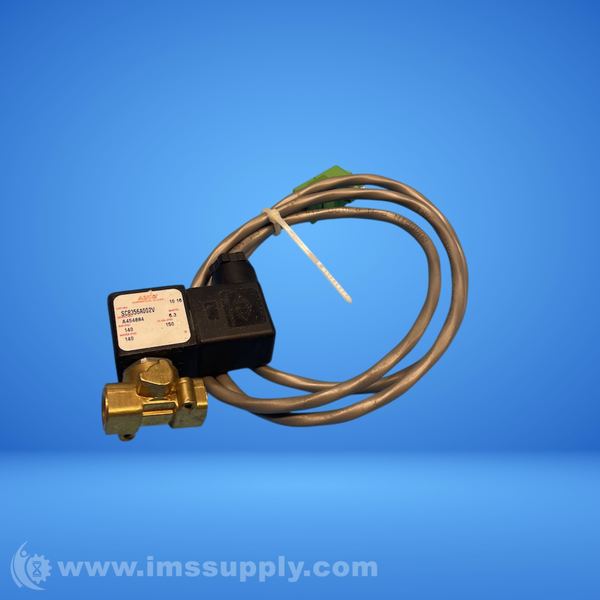

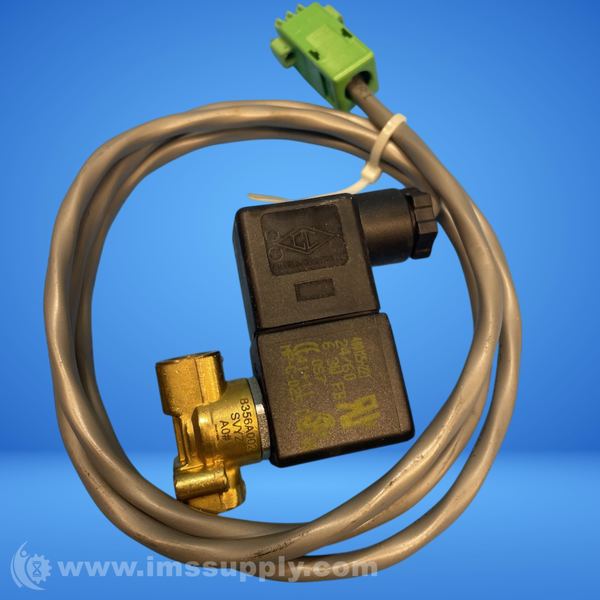

Asco SC8356A002V 3-Way Solenoid Valve
3-Way Normally Closed solenoid valve with brass body and FKM seals. 1/8" Pipe Size, 1/16" Orifice, DIN Connection, 180 degrees F Max Media Temperature, 145 PSI Pressure Rating.
Specifications
- Body Material: Brass
- Seal Material: FKM
- Port Connection: 1/8 in. Female Threaded
- Valve Position: Normally Closed (NC)
- Valve Type: Direct-Acting
- Function: 3-Way/2-Position
- Port Configuration: 3-way
- Voltage: 24VDC
- Wattage: 6.3 W
- Pressure Rating: 145 psi
- Temperature Rating: 180 degrees F
- Pipe Size: 1/8"
- Orifice: 1/16"
- Cv: 0.09, 0.06
- Min Pressure: 0 PSI
- Max Pressure: 145 PSI
- Max Media Temperature: 180 degrees F
- Enclosure: Watertight IP65
- Connection: DIN Connection
- Coil: Class F High Temperature Coil
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 51 minutes.
