ASS 1-315-45-00 ELBOW GRIPPER ARM
Quick Overview
Manufactured By: ASS AUTOMATIONS- SYSTEMS
Manufacturer Part Number: 1-315-45-00
IMS Product Code: 2127861
Packaging: Sold Individually
Description:

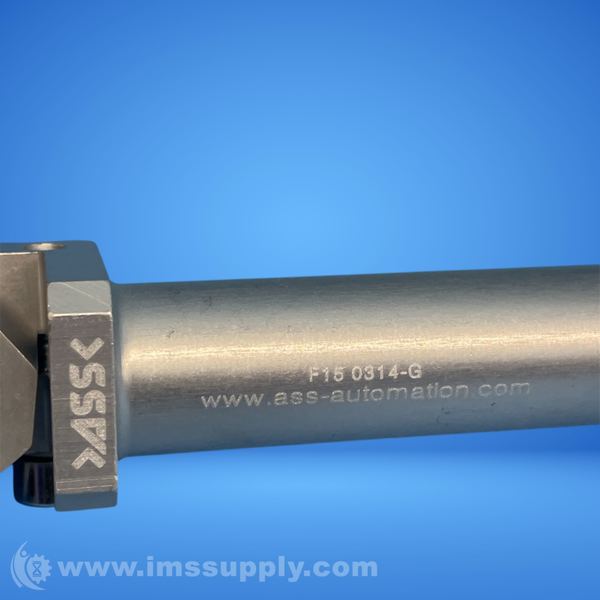

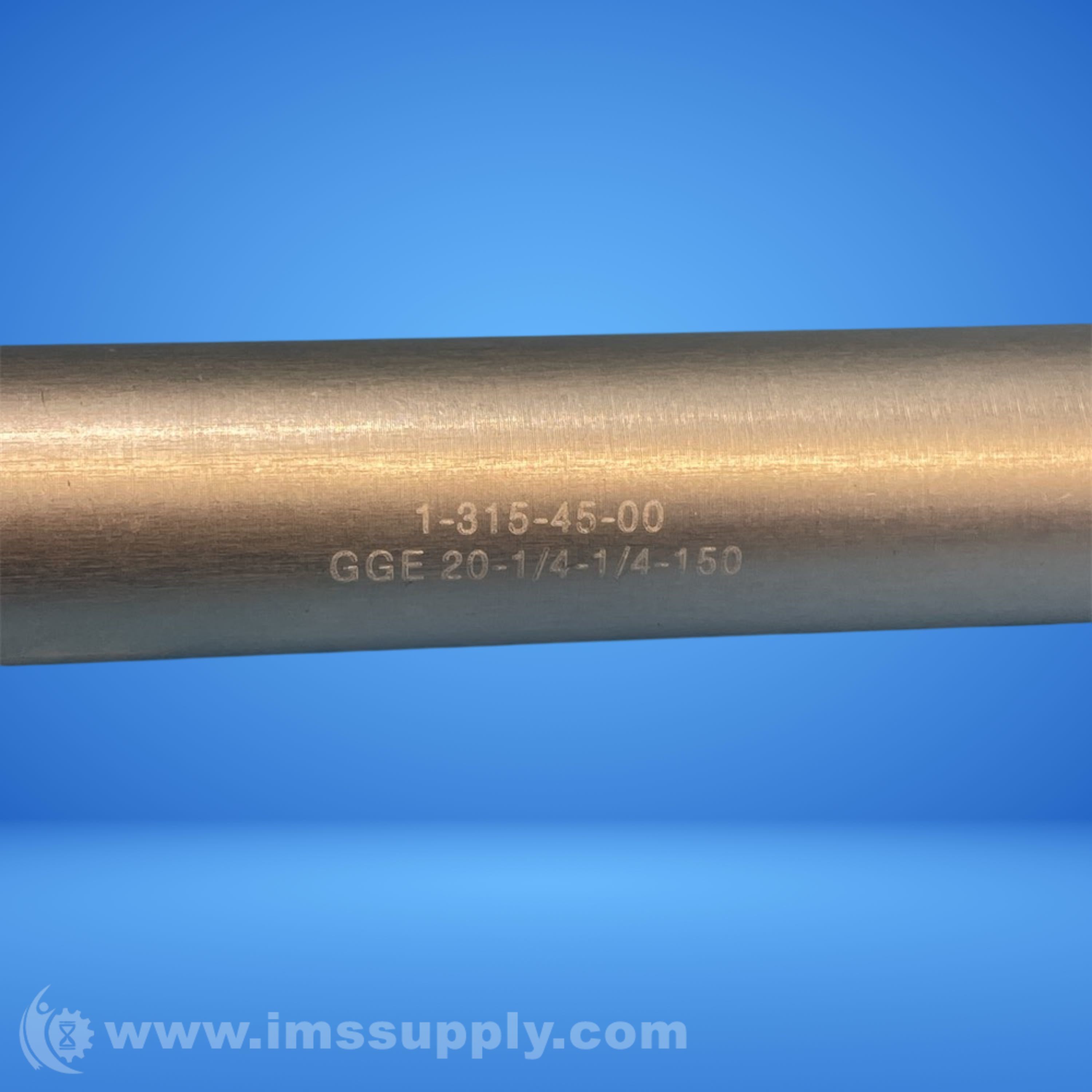

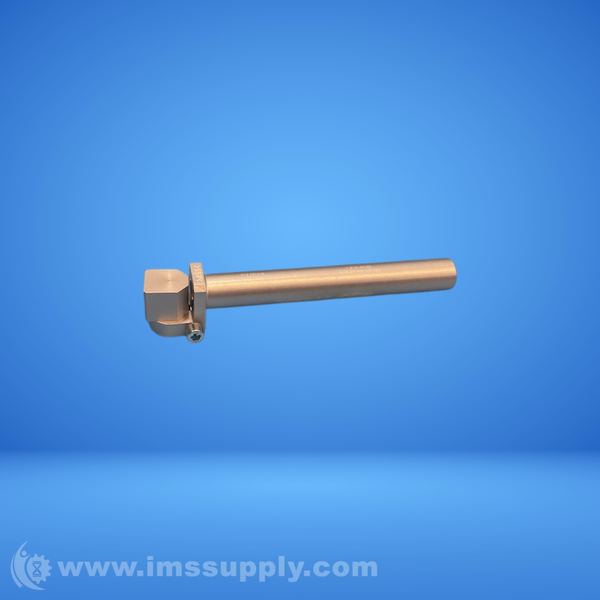

ASS 1-315-45-00 Elbow Gripper Arm

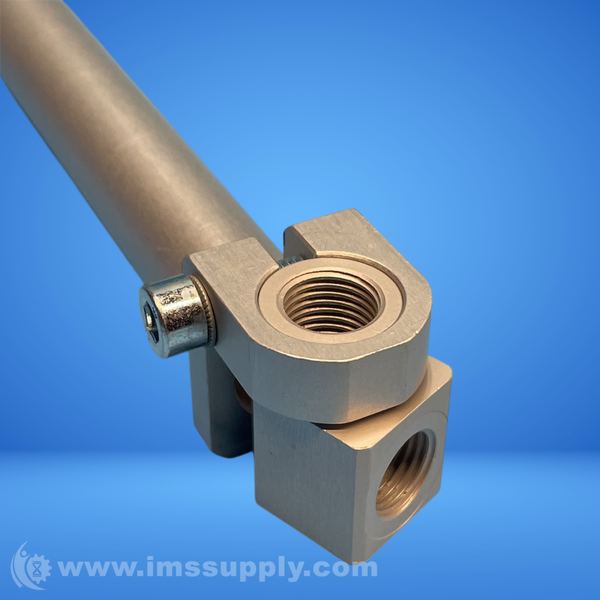

Elbow gripper arm for vacuum cups with 180 degree swivel head, 20mm diameter post, 150mm post length, G1/4 vacuum port.
Specifications
- Stem Ø: 20 mm
- Stem length: 150 mm
- Swivel area: +/-90 degrees
- Vacuum Cup connection thread: G1/4
- Hose connection thread: G1/4
- Material: Aluminium
- Spring compensated: no
- Swiveling: yes
- Weight: 91.82 g
- Post Diameter: Ø20mm
- Air Port (x2): G1/4
- Post Length: 150mm
- Compatible with profile: 20
- A [mm]: 150
- B [mm]: 182
- C [mm]: 25
- D [mm]: G1/4
- E [mm]: G1/4
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
