ASSURED AUTOMATION 100VADBBC4FGC VA SERIES BRASS ON/OFF VALVE

MSRP: $532.00
Starting At: $484.12

Quick Overview

Manufactured By: ASSURED AUTOMATION
Manufacturer Part Number: 100VADBBC4FGC
IMS Product Code: 1855494
Packaging: Sold Individually

Description:

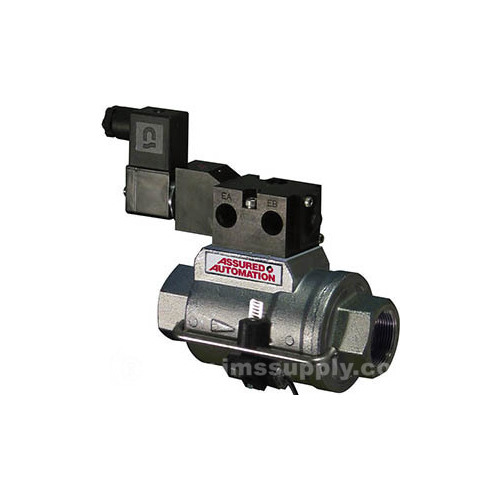

Assured Automation 100VADBBC4FGC VA Series Compact Brass On/Off Valve

The VA Series combines a pneumatic actuator and fast on-off control valve into one body, eliminating packing glands, actuators and mounting kits. There are no exposed moving parts, eliminating pinch points and increasing operator safety. Since the actuator is part of the valve, costs are greatly reduced when compared to standard actuated valves. Operating life has been tested to well over 1,000,000 cycles, the balanced design reduces friction and wear. The stroke is linear and parallel to the flow, dramatically reducing the required force to close or open the valve. The internal waterway design was designed for optimum flow characteristics.

Specifications:

Body Material: Nickel Plated Brass
Size and Connection: 1 inch NPT
Seats and Seal Material: BUNA
Actuator: Double Acting (sized for using 40psi supply air in applications up to 150psi ΔP)
NAMUR Solenoid: Weatherproof (NEMA 4/4x) 4-way/2-position, with plastic DIN 1/2 inch conduit connector, 12 VDC
Limit Switch: [GC] IP67 weatherproof proximity sensor - signal on CLOSED


Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 7 Days

IMS Supply is an authorized Assured Automation distributor.
