ASSURED AUTOMATION HPTPENFF6D PTP SERIES PVC, 3-WAY BALL VALVE

MSRP: $759.00
Starting At: $690.69

Quick Overview

Manufactured By: ASSURED AUTOMATION
Manufacturer Part Number: HPTPENFF6D
IMS Product Code: 1873893
Packaging: Sold Individually

Description:

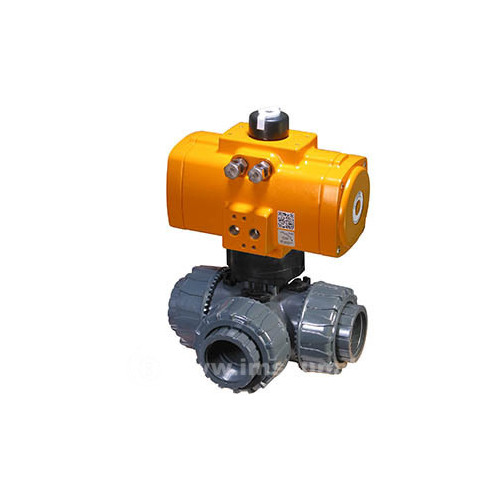

Assured Automation HPTPENFF6D PTP Series PVC, Full Port, 3-way Ball Valve

The PTP Series 3-Way Ball Valves can be used for flow diverting, mixing, or on/off isolation. They will replace a Tee + 2 valve linkage assembly at reduced cost and space, along with shorter installation and maintenance time. The patented seat stop carrier allows for in-line microadjustment of the ball seating, and features o-ring cushioning to minimize wear and prevent seizing. The PTP also includes a patented DUAL BLOCK® locking union nut system, which ensures the nuts are held in position even under severe service conditions such as high vibration or thermal expansion. Integral mounting flange and bracketing allows for direct mount of actuator. PTP Series 3-Way Ball Valves are part of our complete range of valves and flow meters, engineered and manufactured to strict quality, performance, and dimensional standards.
Specifications:

Body Material: PVC
Size and Connection: 2 inch NPT
Seats: PTFE
Seals: EPDM
Port: Full-port (T shaped bore)
Flow Plan: F
Actuator: F series rack and pinion actuator, double acting, sized for use with 60 psi supply air (ELFDA40)
(*actuator sized for applications up to 232 psi ΔP - call for higher pressures)


Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 7 Days

IMS Supply is an authorized Assured Automation distributor.
