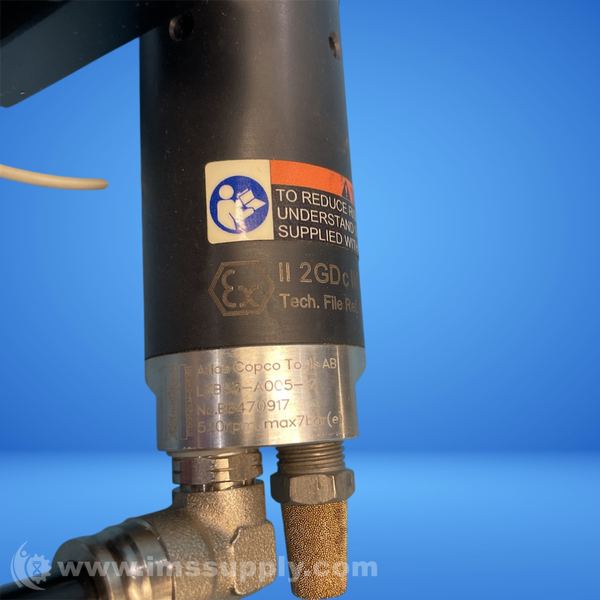

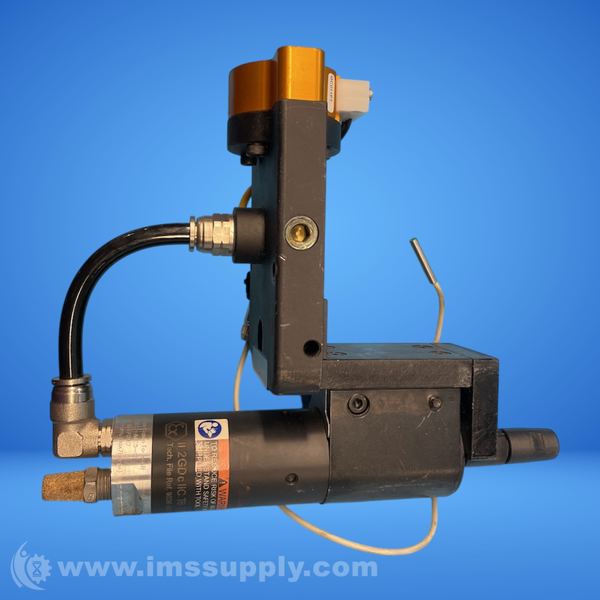

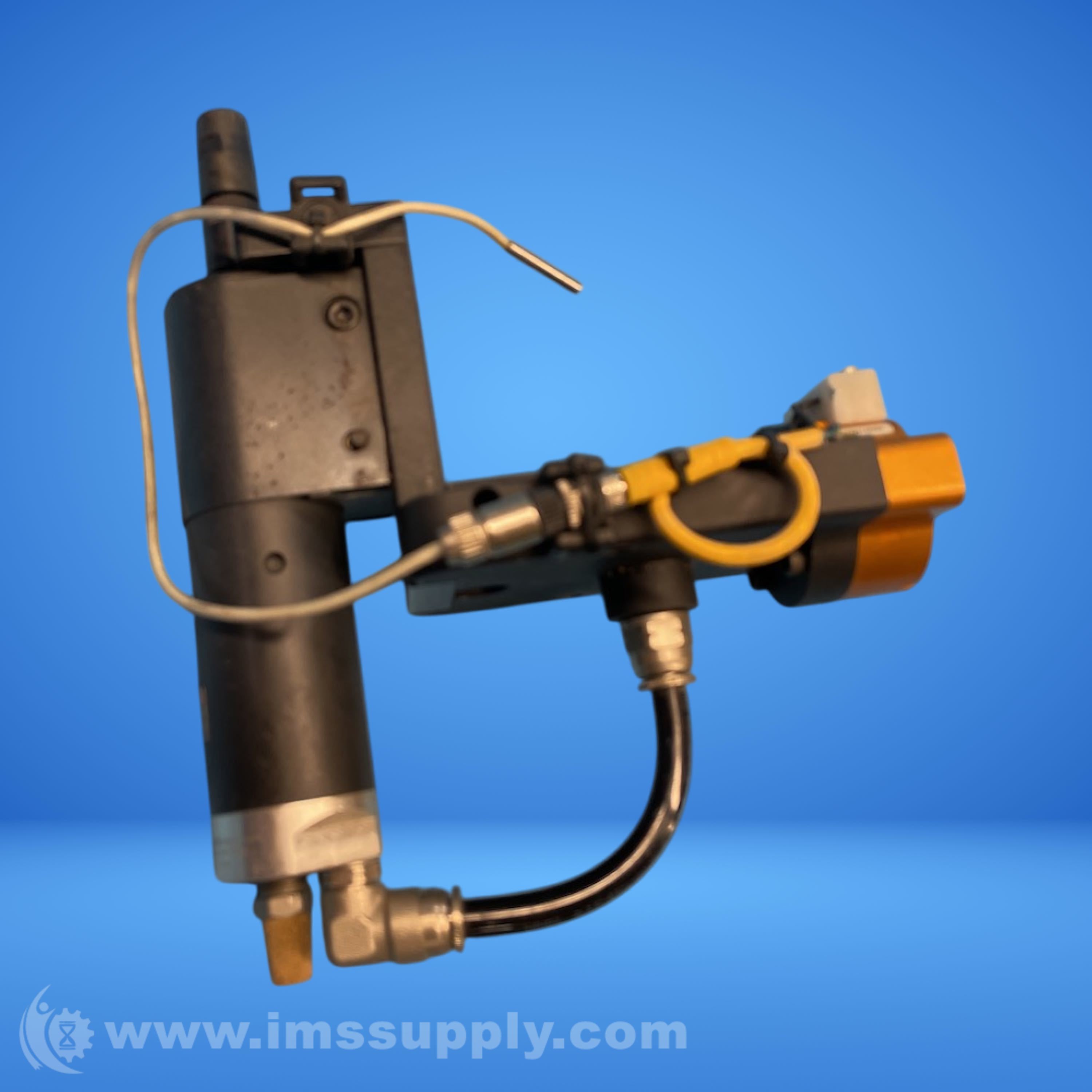

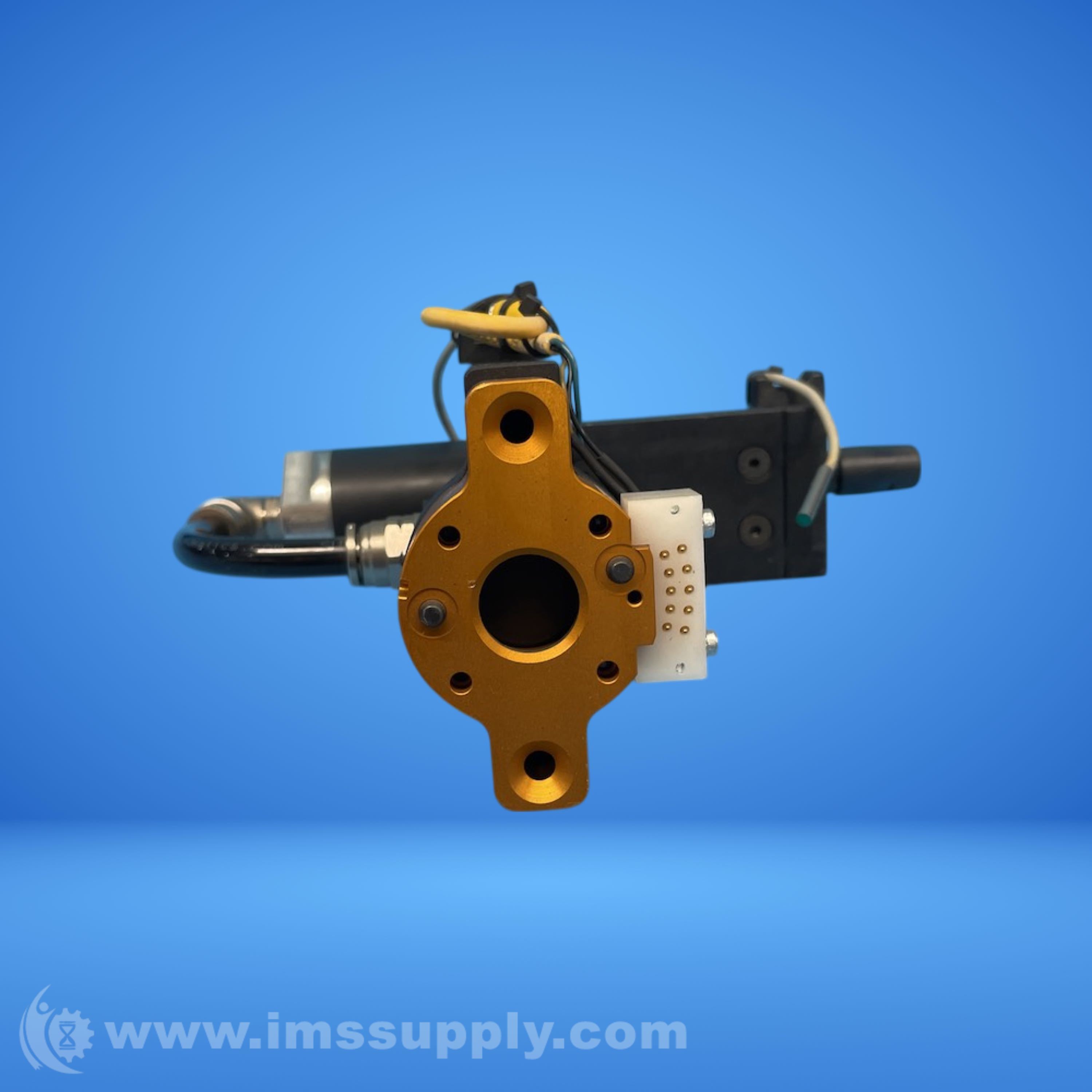

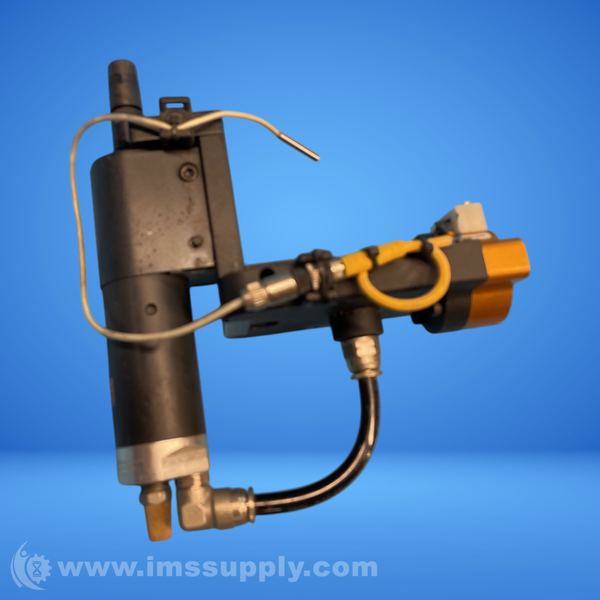

ATLAS COPCO LZB33-A005-12 VANE AIR MOTOR
Quick Overview
Manufactured By: ATLAS COPCO
Manufacturer Part Number: LZB33-A005-12
IMS Product Code: 2144743
Packaging: Sold Individually
Description:
Atlas Copco LZB33-A005-12 Vane Air Motor
Vane air motor with 0.51 hp maximum output and clockwise rotation direction.
Specifications
- Speed: 520 r/min
- Max working pressure: 7 bar
- Air consumption at max output: 8.1 l/s
- Max output: 0.38 kW
- Speed at max output: 260 r/min
- Min starting torque: 26 Nm
- Stall torque: 28 Nm
- Torque at max output: 14.2 Nm
- Shaft type: Threaded
- Vane type: Lubrication free
- Inlet hose size: 10 mm
- Outlet hose size: 10 mm
- Weight: 1.02 kg
- External parts material: Hardened steel/Aluminium
- Rotation direction: Clockwise
- Built in brake: No
- Max ambient temperature: 40 degrees C
- Ingress protection rating: IP66
- ATEX: Yes
- ATEX code gas: Ex II 2 G Ex h IIC T6 Gb
- ATEX code dust: Ex II 2 D Ex h IIIC T85 degrees C Db
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships on Monday, December 22, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
