ATC 652-8-2000 DIGITAL TIMER
Quick Overview
Manufactured By: AUTOMATIC TIMING & CONTROL
Manufacturer Part Number: 652-8-2000
IMS Product Code: 2142184
Packaging: Sold Individually
Description:
ATC 652-8-2000 Digital Timer
Micro-processor-based timer with 4-1/2 digit LCD display, providing indication of preset time remaining or elapsed. Five timing ranges cover time values from one millisecond to 199 hours 59 minutes. Features instantaneous and programmable relay outputs with 14 timing modes.
Specifications
- Operating Power: 120 VAC
- Timing Ranges: 0.001 SEC to 19.999 SEC, 0.01 SEC to 199.99 SEC, 0.1 SEC to 1999.9 SEC, 1 SEC to 199 MIN 59 SEC, 1 MIN to 199 Hr. 59 MIN
- Reset Time: 25 mSEC
- Control Voltage Initiate Time: 25 mSEC
- Memory: EEPROM Circuitry
- Power Consumption: 5.2 VA
- Time Setting: Front Panel Keypad
- Time Repeat Accuracy: ±0.005 SEC

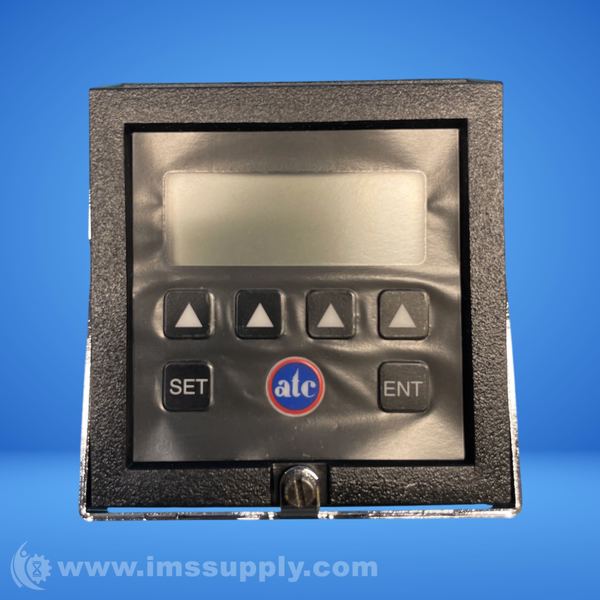

- Display: LCD - 4 1/2 Digit, 7/16" High
- Terminals: Screw Terminals
- Mounting: Plug In Case
- Relay Mechanical Life: 50,000,000 Operations
- Temperature Rating: 32 degrees F - 140 degrees F (0 degrees C - 60 degrees C)
- Amps: 7A
- Operation: On Delay, Interval, Reverse Start Delay, Reverse Start Interval, Momentary Start, Repeat Cycle On First
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 7 minutes.
