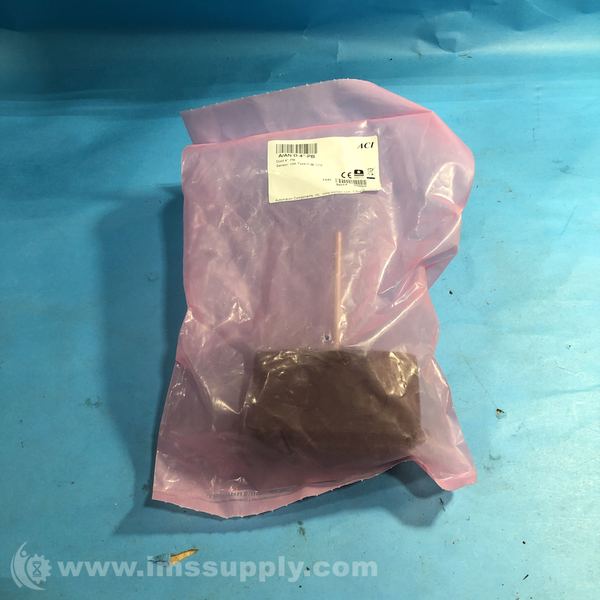

ACI A/AN-D-4"-PB 10K TYPE III DUCT TEMPERATURE SENSOR
Quick Overview
Manufactured By: AUTOMATION COMPONENTS INC
Manufacturer Part Number: A/AN-D-4"-PB
IMS Product Code: 1862989
Packaging: Sold Individually
Description:
ACI A/AN-D-4"-PB 10K Type III Duct Temperature Sensor
Thermistor duct temperature sensor with 10K Type III resistance, 4-inch probe length, and plastic enclosure.
Specifications
- Resistance: 10K Ohms
- Temperature: 77 Deg F (25 Deg C)
- Thermistor Type: Type III
- Mounting: Duct 4" Plastic
- Sensor Type: Thermistor
- Sensor Curve: Non-Linear, NTC (Negative Temperature Coefficient)
- Number Sensing Points: One
- Number Wires: Two (Non-Polarity Sensitive)
- Sensor Output @ 25°C (77°F): 10KO nominal
- Sensor Accuracy 0-70°C (32-158°F): +/-0.2°C (+/-0.36°F)
- Response Time (63% Step Change): 10 Seconds nominal
- Sensor Operating Temperature Range: -40°C (-40°F) to 150°C (302°F)
- Probe Material: 304 Stainless Steel
- Probe Diameter: 0.250” (6.35mm)
- Probe Length: 4
- Enclosure: Plastic Box Enclosure
- Enclosure Specifications (Temperature, Material, Flammability, NEMA/IP Ratings): "-PB" Enclosure: ABS Plastic, UL94-HB, -30 to 90oC (-22 to 194oF), Plenum Rated
- Operating Humidity Range: 10 to 95% RH, non-condensing
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 17 minutes.
