AVENTICS 0822123001 PROFILE CYLINDER
Quick Overview
Manufactured By: AVENTICS
Manufacturer Part Number: 0822123001
IMS Product Code: 2153035
Packaging: Sold Individually
Description:

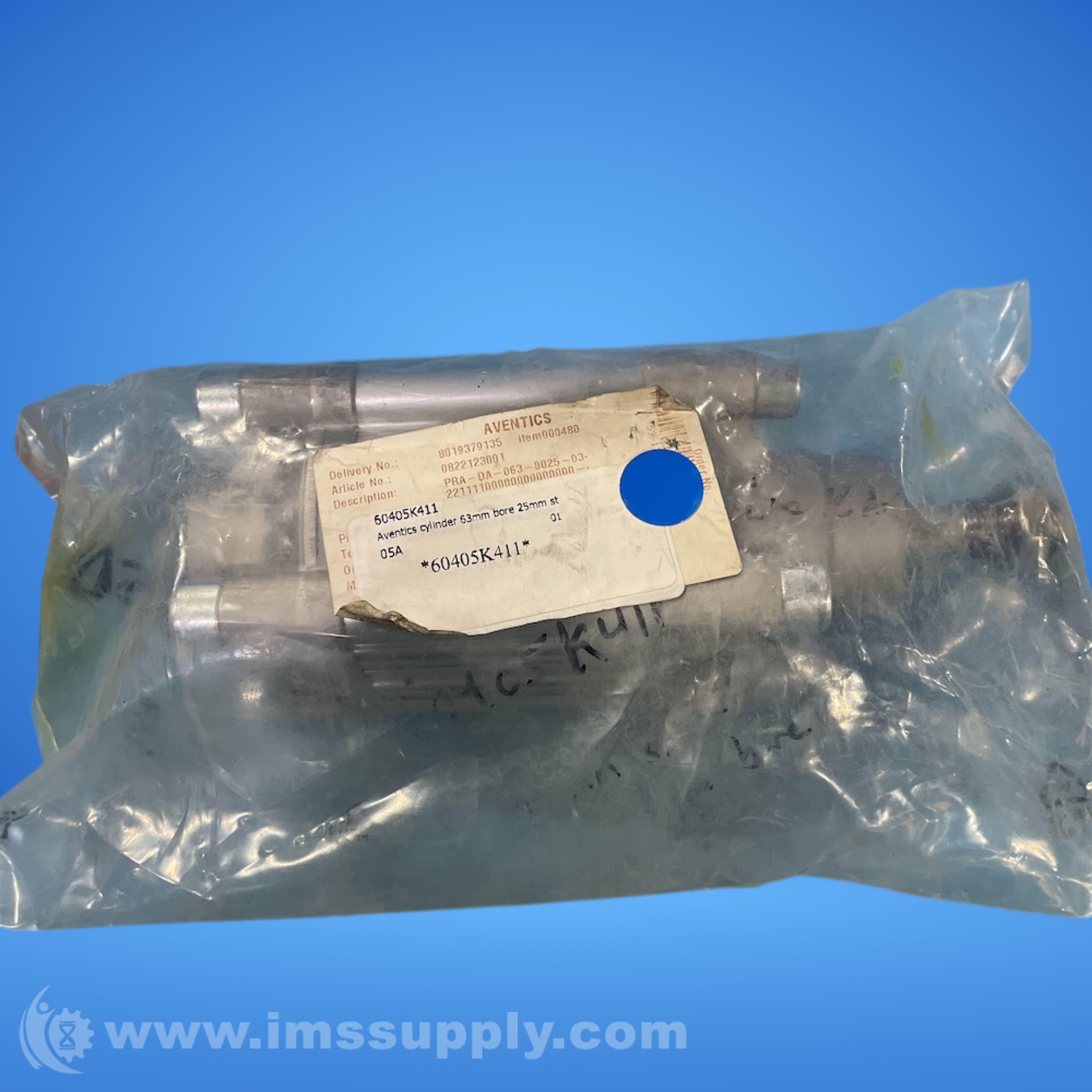

Aventics 0822123001 Profile Cylinder
Pneumatic cylinder ISO 15552, Series PRA, double-acting, 63mm bore, 25mm stroke
Specifications
- Ambient Temperature Max: 80 degrees C
- Ambient Temperature Min: -20 degrees C
- Working Pressure Max: 10 bar
- Working Pressure Min: 1.5 bar
- Pneumatic Port: G 3/8
- Stroke: 25 mm
- Piston Diameter: 63 mm
- Piston Rod Thread: M16x1.5
- Weight: 1.67 kg
- Cushioning: Pneumatic adjustable cushioning
- Cylinder Function: Double-acting
- Functional Principle: Double-acting
- Max Ambient Temperature: 80 degrees C
- Min Ambient Temperature: -20 degrees C
- Medium: Compressed air
- Piston Force Extending: 1960 N
- Piston Force Retracting: 1765 N
- Standards: ISO 15552
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 38 minutes.
