AXIS 5801-641 ETHERNET SURGE PROTECTOR
Quick Overview
Manufactured By: AXIS COMMUNICATIONS
Manufacturer Part Number: 5801-641
IMS Product Code: 2143668
Packaging: Sold Individually
Description:
Axis 5801-641 Ethernet Surge Protector
Protects Ethernet lines and network devices from surges. IP66- and NEMA-4X-rated metal enclosure. Supports data rates up to 1 Gbps.
Specifications
- Casing: IP66- and NEMA-4X-rated metal enclosure
- Mounting: Wall
- Surge Protection: 10 kV, 5 kA to ground in 8/20 µs, 800 V, 100 A PoE
- Input Power: 95 W maximum
- Input Current: 2 A maximum
- Data Rates: Up to 1 Gbps
- Connectors: RJ45 10Base-T/100Base-TX/1000Base-T PoE
- Operating Temperature: -40 to 185°F (-40 to 85°C)
- Operating Humidity: 10 to 95% non-condensing
- Approvals: IEC 60529 IP66, NEMA 250 Type 4X, IEC 61643-21, UL 497B, GR1089, ITU-T K.45, EN 50581, REACH, WEEE
- Dimensions: Surge Protector Only: 7.1 x 1.1 x 1.1" (181 x 29 x 29 mm), With Wall Mount Bracket: 7.1 x 1.3 x 2.9" (181 x 32 x 74 mm)
- Weight: 0.6 lb (270 g)

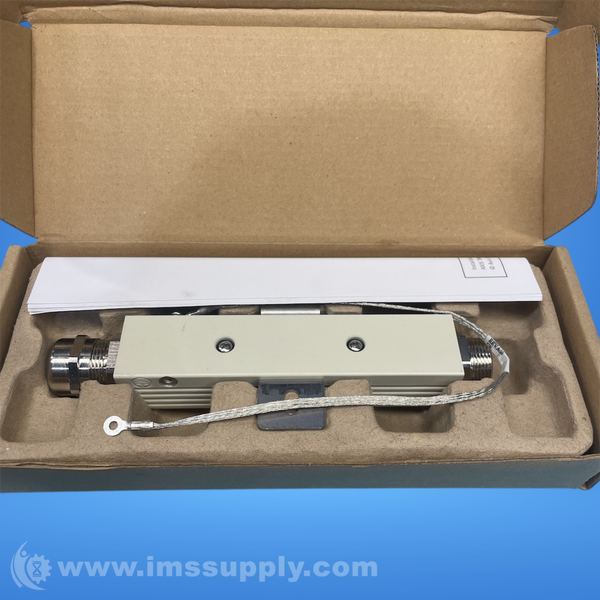

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
