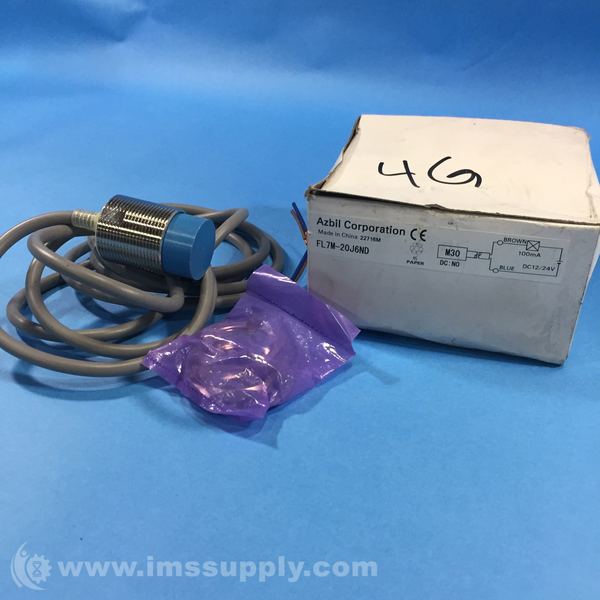

AZBIL FL7M-20J6ND DC2-WIRE CYLINDRICAL PROXIMITY SWITCH
Quick Overview
Manufactured By: AZBIL
Manufacturer Part Number: FL7M-20J6ND
IMS Product Code: 1871925
Packaging: Sold Individually
Description:
Azbil FL7M-20J6ND DC2-Wire Cylindrical Proximity Switch
DC2-wire unshielded cylindrical proximity switch with improved visibility and fast response time. Available in different sizes (M8-M30) and sensing distances (4-20mm) and operation modes (NO / NC). Sealed to IP67G for waterproofing.
Specifications
- Rated Supply Voltage: 12/24 Vdc
- Operating Voltage Range: 10 to 30 Vdc
- Operation Mode: N.O. (Normally Open) or N.C. (Normally Closed)
- Vibration Resistance: 10-55 Hz
- Shock Resistance: 980 m/s�
- Differential Travel: Up to 15% of sensing distance
- Leakage Current: Maximum of 0.8 mA
- Temperature Drift: �10% max. over �25 to +70 degrees C range
- Supply Voltage Drift: �1% max. with �15% voltage fluctuation
- Protective Structure: IP67 and IP67G standards
- Dielectric Strength: 1,000 Vac, 50/60 Hz for 1 minute
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 13 minutes.
