AZBIL FL7M-4W6-CN03 CYLINDRICAL PROXIMITY SENSOR
Quick Overview
Manufactured By: AZBIL
Manufacturer Part Number: FL7M-4W6-CN03
IMS Product Code: 2122683
Packaging: Sold Individually
Description:

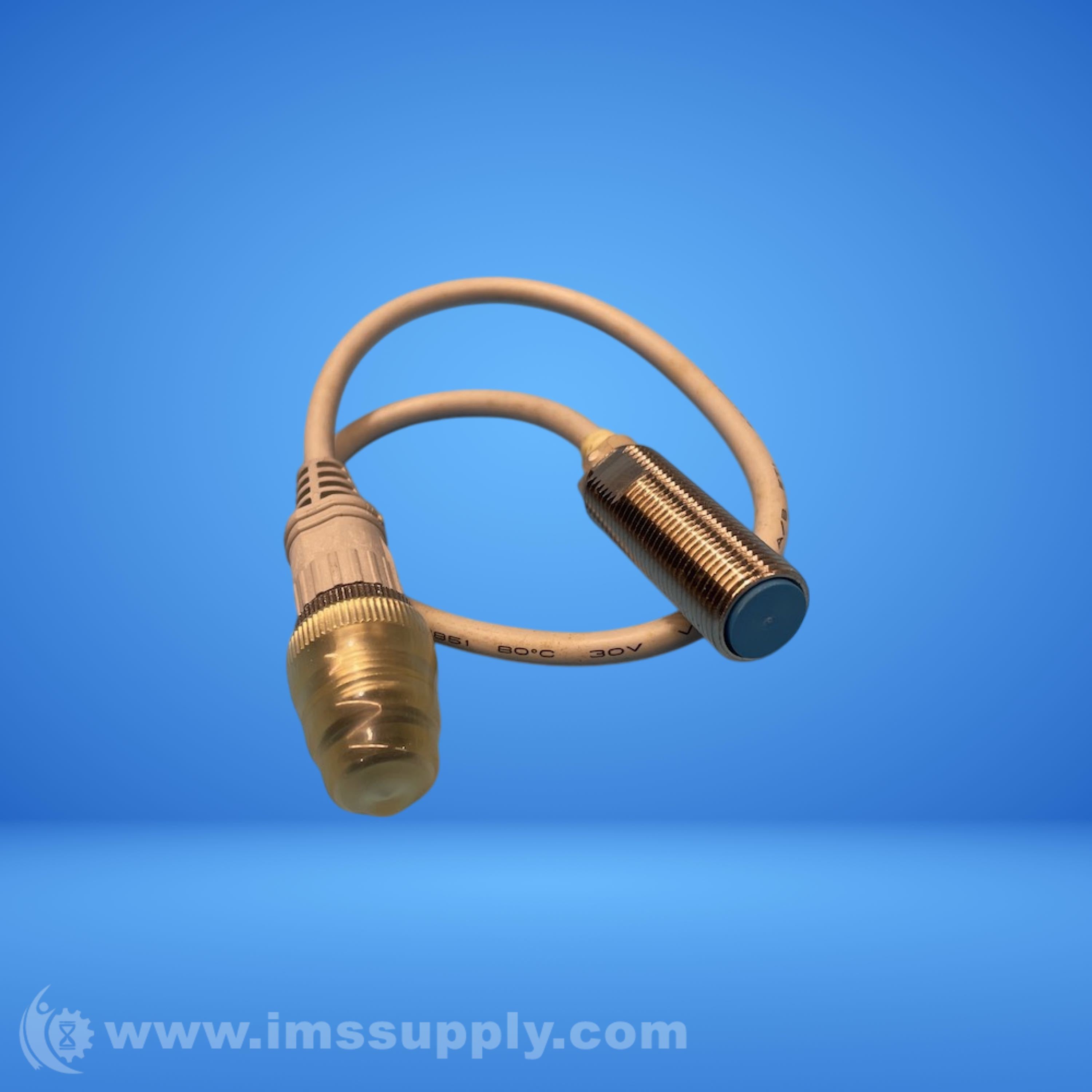

Azbil FL7M-4W6-CN03 Cylindrical Proximity Sensor

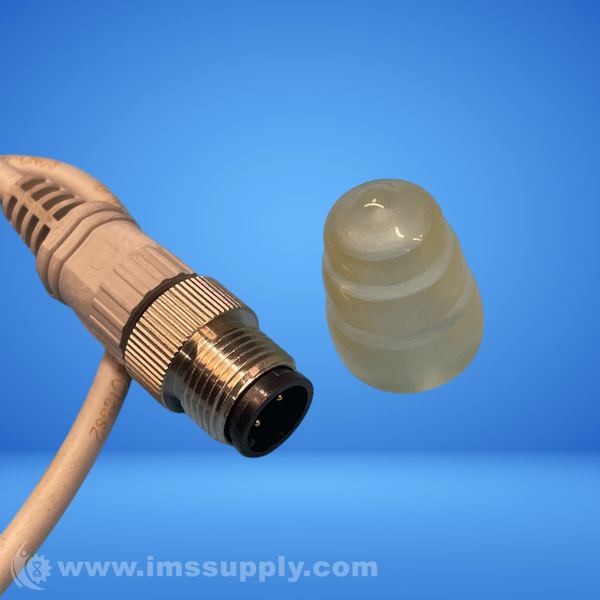

Cylindrical proximity sensor with 4 mm sensing range, DC 2-wire, shielded, Ni-plated brass housing, PBT face, 30 cm oil-resistant cable with M12 connector.
Specifications
- Differential travel: 15% max. of sensing distance
- Rated supply voltage: 12/24 Vdc
- Operating voltage range: 10 to 30 Vdc
- Control output: Switching current 3 to 100 mA, voltage drop 5.0 V max.
- Temperature drift: ±10% of sensing distance max. for the –25 to +70 degrees C range
- Indicator lamps: N.O. type: Operation indication: lights up (orange or green) when output ON
- Dielectric strength: 1,000 Vac, 50/60 Hz for 1 minute
- Vibration resistance: 10 to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hrs each in X, Y, and Z directions
- Shock resistance: 980 m/s2 10 times each in X, Y, and Z directions
- Protective structure: IP67 (IEC standard), IP67G (JEM standard)
New - Missing Box (Special):

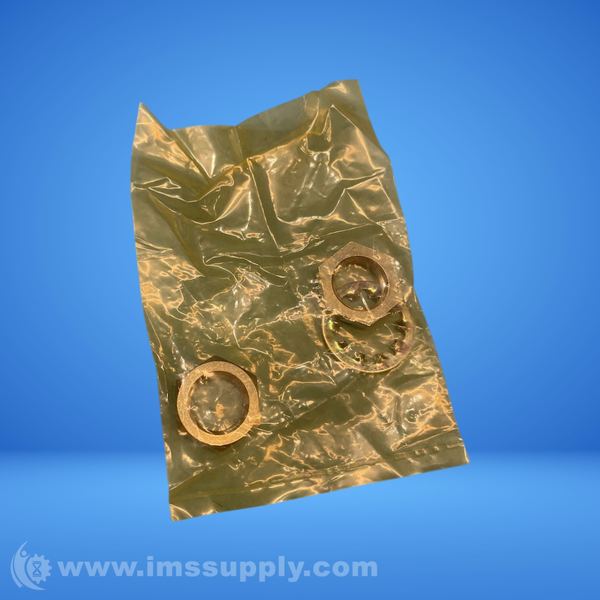

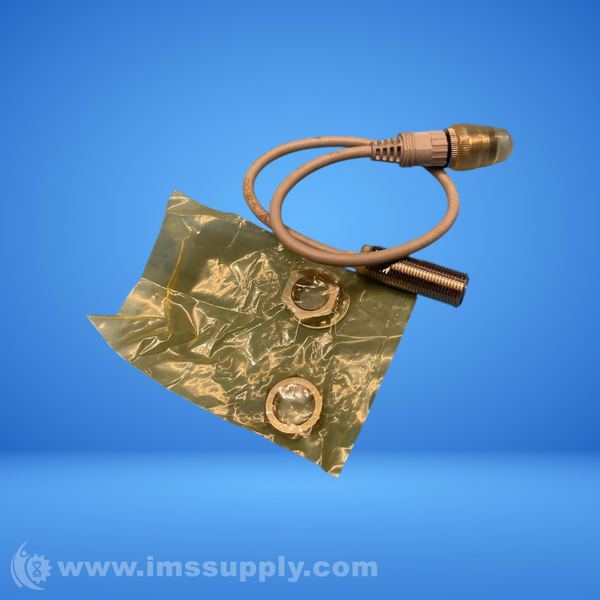

Comes with sensor nuts.
Availability: 1 In Stock
