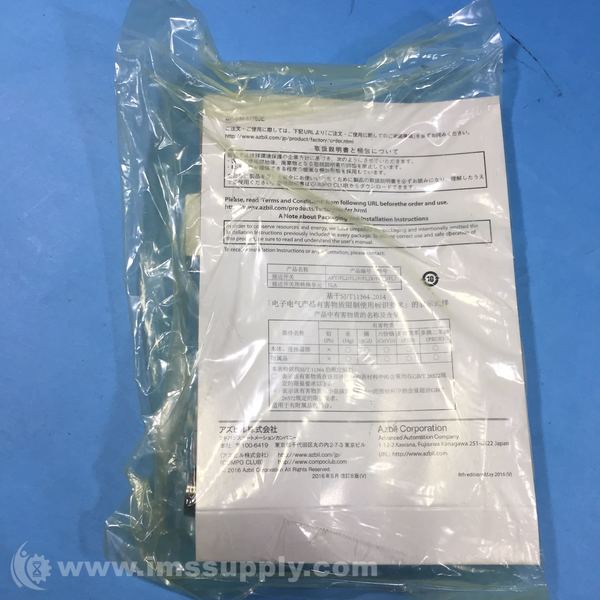

AZBIL FL7M-7K6H-CN03 CYLINDRICAL PROXIMITY SWITCH
Quick Overview
Manufactured By: AZBIL
Manufacturer Part Number: FL7M-7K6H-CN03
IMS Product Code: 1864616
Packaging: Sold Individually
Description:
Azbil FL7M-7K6H-CN03 Cylindrical Proximity Switch
DC 2-wire cylindrical proximity switch with improved visibility of indicator lamps, Ni-plated brass housing, PBT face, shielded, NC operation mode.
Specifications
- type: Cylindrical Proximity Sensor
- wiring: DC 2-Wire
- size: 18 mm
- sensing_range: 7 mm
- housing_material: Ni-plated brass
- face_material: PBT
- cable: 2 m oil resistant flexible cable w/M12 connector
- Actuation method: High-frequency oscillation
- Rated supply voltage: 12/24 Vdc
- Operating voltage range: 10 to 30 Vdc
- Operation Mode: NC
- Outside Diameter: M18
- Sensing Distance: 7mm
- Protective structure: IP67 (IEC standard), IP67G (JEM standard)
- Vibration resistance: 10 to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours each in X, Y, and Z directions
- Shock resistance: 980 m/s2 10 times each in X, Y, and Z directions.
- Dielectric strength: 1,000 Vac, 50/60 Hz for 1 minute
- Response Speed: 0.2 kHz
- Current Consumption: 0.55 mA
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 35 minutes.
New - Missing Box (Special):
part has screw nuts included
Availability: 2 In Stock
Ships today if ordered in the next 12 hours and 35 minutes.
