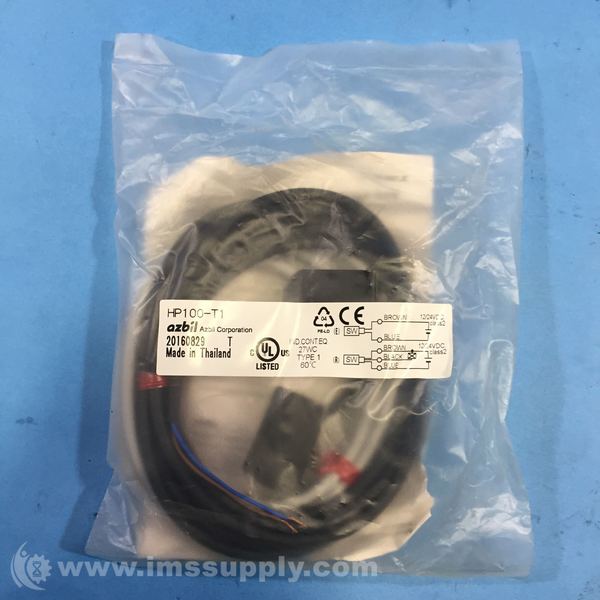

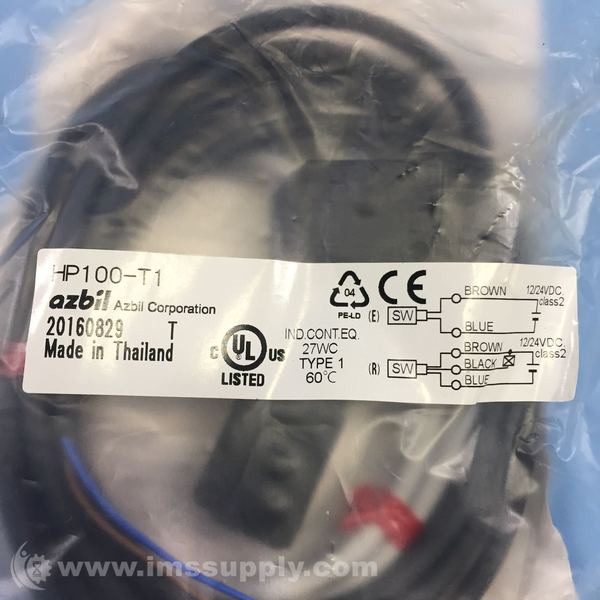

AZBIL HP100-T1 PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: AZBIL
Manufacturer Part Number: HP100-T1
IMS Product Code: 1854920
Packaging: Sold Individually
Description:
Azbil HP100-T1 Photoelectric Sensor
General-Purpose Photoelectric Sensor with Self-Contained Amplifier
Specifications
- Detection Method: Thru-scan
- Scanning Distance: 15m
- L-ON/D-ON Selection: true
- Sensitivity Adjustment: true
- Wiring Method: Preleaded
- Cable Length: 2m
- Power Supply: 10 to 30Vdc
- Output Mode: NPN open collector
- Power Consumption: HP100-E1: 16mA max., HP100-R: 11mA max
- Target Object: Opaque object 9mm dia. min.
- Scanning Angle: 2 to 20 degrees
- Operation Mode: Light-ON / Dark-ON selectable by switch
- Control Output: Switching current: 100mA (resistive load). Output dielectric strength: 30V. Voltage drop: 3V max. (at 100mA switching current). Short-circuit protection
- Response Time: 500µs max. for both operation and recovery
- Emitter: Red LED
- Indicator: Indicators other than thru-scan emitter: orange when output ON, and green at stable light-ON and light-OFF. Thru-scan emitter: orange light on power supply indicator. Thru-scan receiver: light-operated red indicator on front of unit.
- Ambient Light Immunity: Incandescent lamp: 10,000 lux max. Sunlight: 40,000 lux max
- Operating Temperature: -30 to +60 degrees C (without freezing or condensation)
- Operating Humidity: 35 to 85% RH (without freezing or condensation)
- Storage Temperature: -40 to +70 degrees C (without freezing or condensation)
- Insulation Resistance: 20Mohm min. (at 500Vdc)
- Dielectric Strength: 1,000Vac 50/60Hz for one minute between electrically live metal and case
- Vibration Resistance: 10 to 55Hz, 1.5mm peak-to-peak amplitude, 2 hours each in X, Y, and Z directions
- Shock Resistance: 500m/s2 10 times each in X, Y and Z directions
- Protective Structure: IP67 (IEC standard)
- Weight: Approx. 55g (body with 2m cable only)
- Circuit Protection: Power ON malfunction prevention circuit (approx. 8ms), wiring error protection
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
