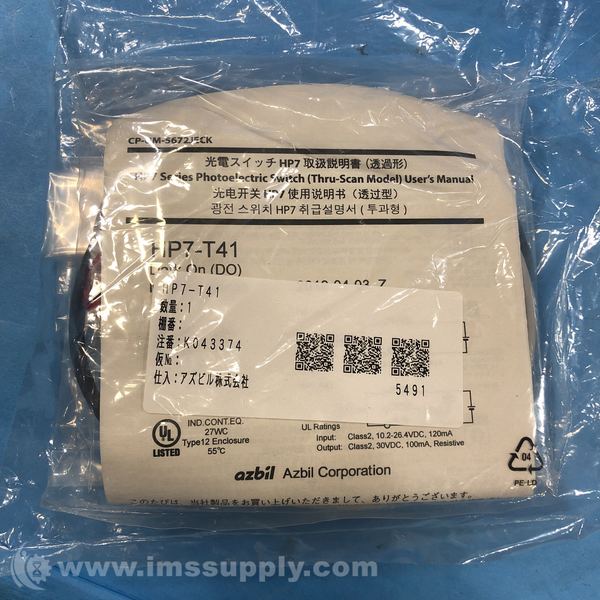

AZBIL HP7-T41 PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: AZBIL
Manufacturer Part Number: HP7-T41
IMS Product Code: 1901295
Packaging: Sold Individually
Description:
Azbil HP7-T41 Photoelectric Sensor
General-Purpose Self-Contained Photoelectric Sensor with Thru-scan detection method, 30 m detection range, infrared light source, and NPN output.
Specifications
- Detection Method: Thru-scan
- Detection Range: 30 m
- Light Source: Infrared
- Output: NPN
- Operating Temperature: -35 to 55 degrees C
- Storage Temperature: -40 to 70 degrees C
- Operating Humidity: 35 to 85% RH
- Protective Structure: IP67
- Insulation Resistance: 20 MO min.
- Dielectric Strength: 1000 Vac
- Vibration Resistance: 10 to 55 Hz, 1.5 mm amplitude
- Shock Resistance: 500 m/s2
- Sensitivity Adjustment: Operation button
- Indicator: Output ON: orange indicator ON
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 41 minutes.
