AZBIL IP50SHC36AD00 SIGNAL CONVERTER
Quick Overview
Manufactured By: AZBIL
Manufacturer Part Number: IP50SHC36AD00
IMS Product Code: 2127261
Packaging: Sold Individually
Description:

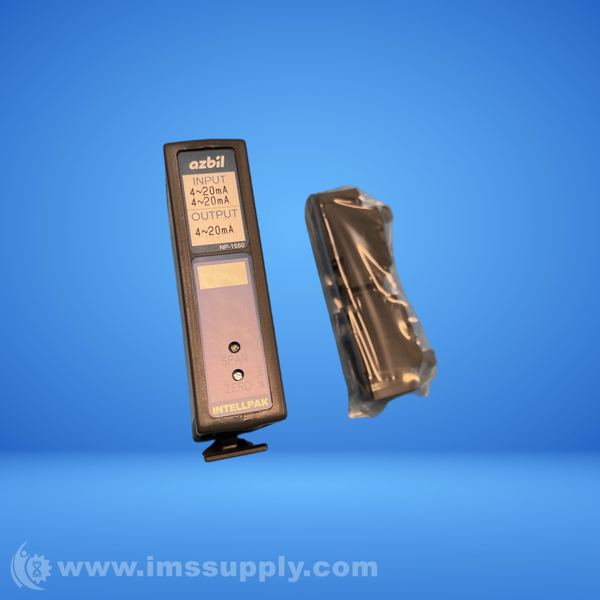

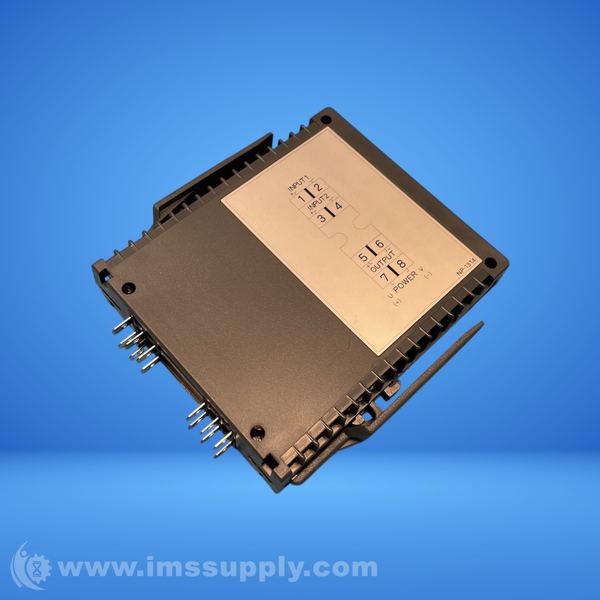

Azbil IP50SHC36AD00 Signal Converter
Isolated signal converter with 4-20mA input and output, DC24V power supply.
Specifications
- Power Supply Voltage: DC24V
- Input Impedance: 50 Ohms
- Output: 4-20mA
- Load Resistance: 750 Ohms or less
- Accuracy: ±0.1% FS at 23°C
- Response Time: 0.025 seconds (90% response)
- Power Consumption: Approximately 2.2VA
- Inrush Current: 0.11A or less
- Case Material: Heat-resistant ABS resin
- Mounting Method: Wall mounting or DIN rail mounting
- Ambient Operating Temperature: -5 to 55°C
- Ambient Operating Humidity: 90% RH or less (no condensation)
- Weight: Approximately 200g (including base socket)
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
