AZBIL PA5-4JSX5HK-E CABLE PLUG
Quick Overview
Manufactured By: AZBIL
Manufacturer Part Number: PA5-4JSX5HK-E
IMS Product Code: 1824575
Packaging: Sold Individually
Description:

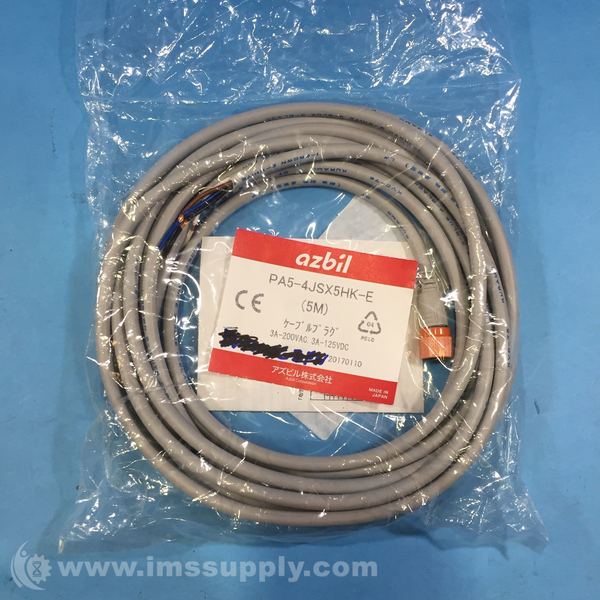

Azbil PA5-4JSX5HK-E Cable Plug

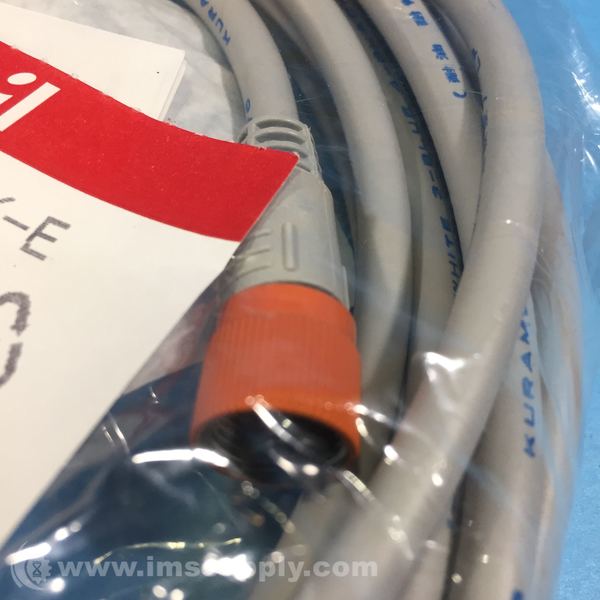

4-core cable with straight female connector, 5m length, oil-resistant vinyl insulation, gray sheath, brown, white, blue, and black wire colors.
Specifications
- Cable Length: 5 m
- Connector Shape: straight (female)
- Number of Cores: 4

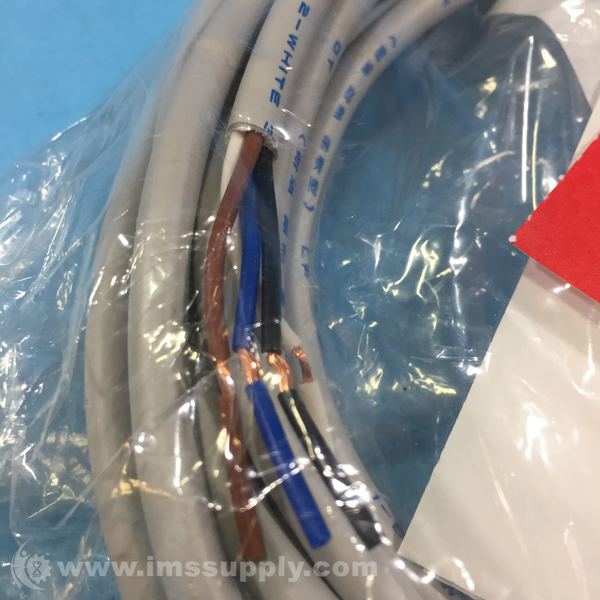

- Wire Colors: brown, white, blue, black
- Cable Type: dia 6.0 oil resistant vinyl insulated cable
- Operating Voltage and Current: AC: 5 Vac 5 mA min., 250 Vac 3A; DC: 5 Vdc 5 mA min., 125 Vdc 3A max.
- Insulation Resistance: 100 MO min. (500 Vdc)
- Dielectric Strength: 1,500 Vdc for 1 minute
- Initial Contact Resistance: 40 mO max. (at 3A)
- Mating/Unmating Force: 0.4 to 4.0 N per contact
- Mating Cycles: 50 times
- Connector Nut Torque: 0.8 N·m min.
- Cable Pullout Strength: 100 N min.
- Vibration Resistance: 10 to 55 Hz, 1.5 mm amplitude, 2 hrs each in X, Y, and Z directions
- Shock Resistance: 300 m/s², 3 times each in X, Y, and Z directions
- Protective Structure: IP67
- Operating Temperature: -10 to +70 degrees C
- Operating Humidity: 95% RH max.
- External Diameter: 6.0 mm
- Conductors: 0.5 mm²
- Sheath Color: Gray
