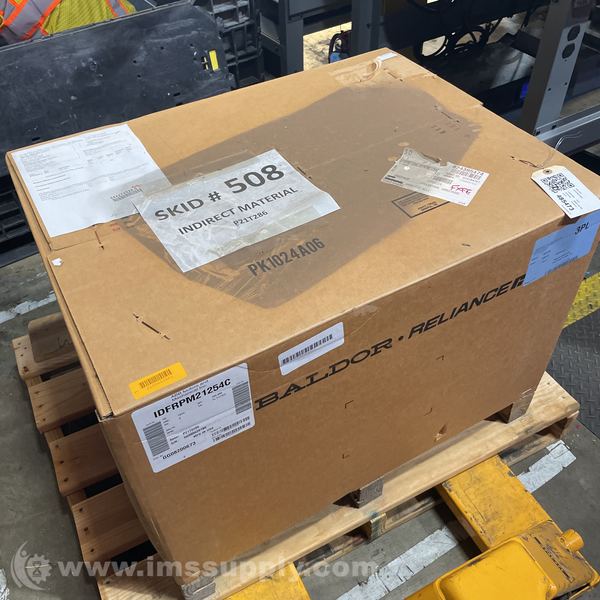

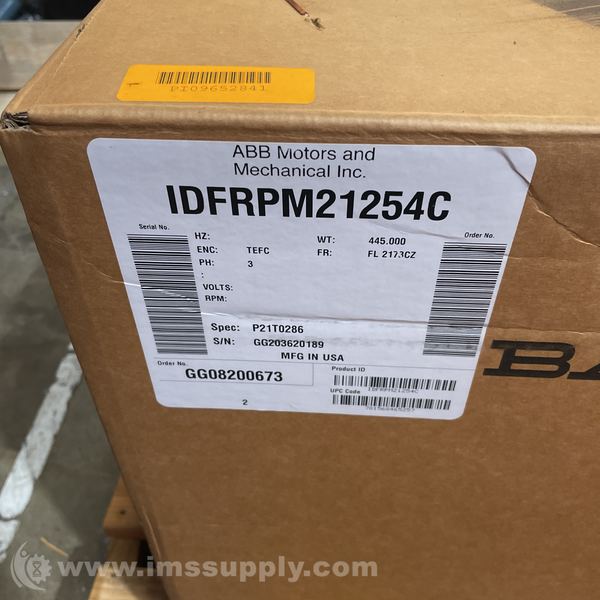

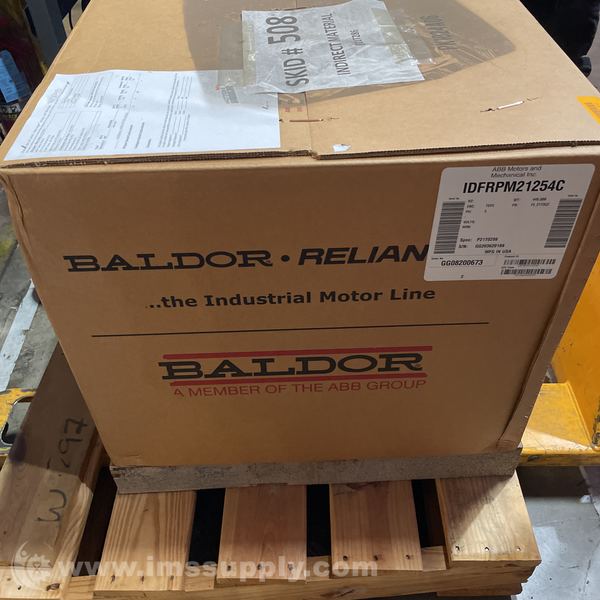

BALDOR IDFRPM21254C 25 HP MOTOR
Quick Overview
Manufactured By: BALDOR
Manufacturer Part Number: IDFRPM21254C
IMS Product Code: 2138585
Packaging: Sold Individually
Description:
Baldor IDFRPM21254C 25 HP Motor
Three phase inverter duty motor with laminated frame, 25 HP, 460V, 1780 RPM, TEFC enclosure, FL2173CZ frame, continuous duty.
Specifications
- Agency Approvals: CCSA US
- Auxillary Box: No Auxillary Box
- Base Indicator: Rigid
- Bearing Grease Type: Polyrex EM (-20F +300F)
- C-Dimensions: 29.5
- Catalog Number: IDFRPM21254C
- Condition: New
- Current: 34.0 A
- Current @ Voltage: 34.000 A @ 460.0 V
- Duty Condition Type: Continuous Duty
- Duty Rating: CONT
- Enclosure: TEFC
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Feedback Device: NO FEEDBACK
- Frame: FL2173CZ
- Frame Material: Exposed Laminations
- Frame Number: 2173
- Frame Prefix: FL
- Frame Remarks: F3, FOOTED
- Frame Size: FL2173CZ
- Frame Suffix: FLCZ
- Frequency: 60.00 Hz
- Frequency Rating: 60 Hz
- Full Load Amps: 34
- Full Load Current: 34.00 A
- Heater Indicator: No Heater
- Height: 36 in
- High Voltage Full Load Amps: 34.0 a
- HP: 25
- Input Voltage(s): 400 - 480 VAC Input
- Insulation Class: H
- IP Rating: NONE
- Model #: IDFRPM21254C
- Motor Category: Inverter Duty Motor - Laminated Frame
- Motor Construction: Exposed Laminations
- Motor Enclosure Type: Totally Enclosed Fan Cooled
- Motor Horsepower: 25 hp
- Motor Insulation Class: Class H Insulation
- Motor Letter Type: Three Phase
- Motor Phase: 3 ph
- Motor RPM's: 1800 RPM
- Motor Standards: NEMA
- Motor Supply Voltage: 460 V
- Motor Voltage: 460 Volt
- Motor Voltage Phases: 3 Phase
- Mounting Arrangement: F3
- Mounting Type: Foot
- Overall Length: 29.50 IN
- Overall Length C Dimension: 29.50 in
- Output @ Frequency: 25.000 HP @ 60 HZ
- Phase: 3
- Product Family: General Industrial
- Product Type: AC Laminated Frame - RPMAC Motor
- Pulley End Bearing Type: Ball
- Pulley Face Code: C-Face
- RPM: 1800
- Service Factor: 1.00
- Shaft Diameter: 1.625 IN
- Shaft Ground Indicator: Shaft Grounding
- Shaft Rotation: Reversible
- Speed: 1780 rpm
- Standards Met: NEMA MG 1 Part 31
- Synchronous Rpm: 1800 rpm
- Synchronous Speed: 1800 RPM
- Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
- Thermal Device - Bearing: None
- Thermal Device - Winding: Normally Closed Thermostat
- Thermal Protection: Thermostat
- Type: Variable Speed AC Motor
- Voltage: 460
- Voltage @ Frequency: 460.0 V @ 60 HZ
- Volts @ Frequency: 460 V @ 60 Hz
- Weight: 355 lbs
- Width: 36 in
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
