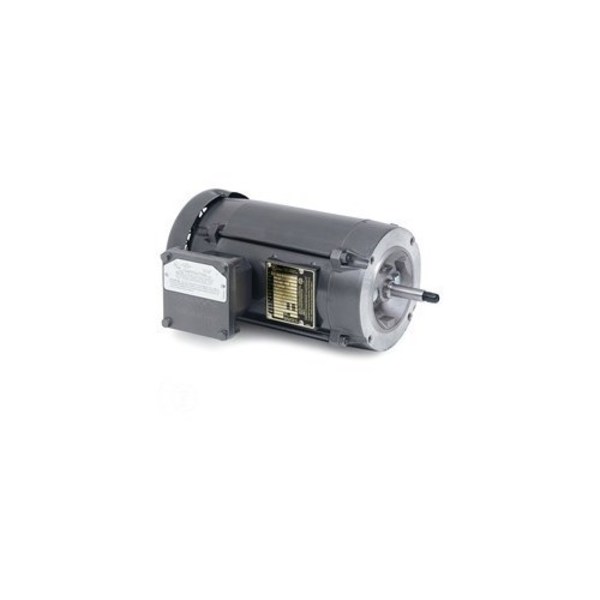

BALDOR MOTORS JL5003A MOTOR .5 HP 1 PH 3450RPM 60HZ 56J
Quick Overview
Manufactured By: BALDOR
Manufacturer Part Number: JL5003A
IMS Product Code: 1788197
Packaging: Sold Individually
Description:
Baldor Motors Jl5003A Motor .5 Hp 1 Ph 3450Rpm 60Hz 56J Frame Tefc Enclosure 115/230 V Footless
Specifications:
- Output 0.500 hp
- Phase 1
- Synchronous Speed 3,600 rpm
- Frequency 60.00 Hz
- Voltage 115 V
- 230 V
- Frame Material Steel
- Frame 56J
- XP Class and Group Class I, Group D; Class II, Group F & G
- XP Division Division I
- Brand Baldor-Reliance
- Agency Approvals CSA
- UL
- UR
- Ambient Temperature 40 °C
- Auxillary Box No Auxillary Box
- Auxillary Box Lead Termination None
- Base Indicator No Mounting
- Bearing Grease Type POLYREX EM (-20F +300F)
- Blower None
- Current 7.8 A @ 115 V
- 3.9 A @ 230 V
- Design Code N
- Drip Cover No Drip Cover
- Duty Rating CONT
- Efficiency @ 100% Load 55.0%
- Electrically Isolated Bearing Not Electrically Isolated
- Feedback Device No feedback
- Front Face Code Standard
- Front Shaft Indicator None
- Heater Indicator No heater
- High Voltage Full Load Amps 3.9 A
- Insulation Class B
- Inverter Code Not inverter
- KVA Code L
- Lifting Lugs No Lifting Lugs
- Locked Bearing Indicator Locked Bearing
- Motor Lead Exit KO Box
- Motor Lead Quantity/Wire Size 6 @ 18 AWG
- Motor Lead Termination Flying Leads
- Motor Standards NEMA
- Motor Type 3513L
- Number of Poles 2
- Overall Length 14.79 in
- Power Factor 69
- Product Family General Purpose
- Pulley End Bearing Type Ball
- Pulley Face Code C-Face
- Pulley Shaft Indicator Ext Thread
- Rodent Screen None
- RoHS Status RoHS Compliant
- Service Factor 1.00
- Shaft Diameter 0.625 in
- Shaft Extension Location Pulley End
- Shaft Ground Indicator No Shaft Grounding
- Shaft Rotation Reversible
- Shaft Slinger Indicator No Slinger
- Speed 3,450 rpm
- Speed Code Single Speed
- Starting Method Direct on line
- Thermal Device - Bearing NONE (OLD)
- Thermal Device - Winding None
- Vibration Sensor Indicator No Vibration Sensor
- Winding Thermal 1 Automatic Thermal Overload
- Winding Thermal 1 Location SB
- Winding Thermal 2 None
- XP Temp Code T4
