BALDOR M7014T 1HP ELECTRIC MOTOR
Quick Overview
Manufactured By: BALDOR
Manufacturer Part Number: M7014T
IMS Product Code: 2154364
Packaging: Sold Individually
Description:
Baldor M7014T 1HP Electric Motor
Three Phase, Foot Mounted, Explosion Proof, 1HP, 1760RPM, 143T Frame
Specifications
- Catalog Number: M7014T
- Enclosure: TEFC/XPFC
- Frame: 143T
- Frame Material: Steel
- Frequency: 50 Hz, 60 Hz
- Motor Letter Type: Three Phase
- Output @ Frequency: .750 HP @ 50 HZ, 1.000 HP @ 60 HZ
- Phase: 3
- Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
- Voltage @ Frequency: 190.0 V @ 50 HZ, 230.0 V @ 60 HZ, 380.0 V @ 50 HZ, 460.0 V @ 60 HZ
- Haz Area Class and Group: None
- Haz Area Division: Not Applicable
- Agency Approvals: CSA, UL
- Ambient Temperature: 40 degrees C
- Base Indicator: Rigid
- Bearing Grease Type: Polyrex EM (-20F +300F)
- Current @ Voltage: 3.200 A @ 230.0 V, 3.000 A @ 190.0 V, 1.600 A @ 460.0 V, 1.500 A @ 380.0 V
- Design Code: B
- Duty Rating: CONT
- Efficiency @ 100% Load: 82.5 %
- Insulation Class: B
- KVA Code: M
- Mounting Arrangement: F1
- Number of Poles: 4
- Overall Length: 14.36 IN
- Power Factor: 73
- Pulley End Bearing Type: Ball
- Service Factor: 1.00
- Shaft Diameter: 0.875 IN
- Shaft Extension Location: Pulley End
- Shaft Rotation: Reversible
- Speed: 1450 rpm, 1750 rpm
- Speed Code: Single Speed
- Motor Standards: NEMA
- Starting Method: Direct on line
- Thermal Device - Winding: Normally Closed Thermostat
- Haz Area Temp Code: T3C
- Weight: 50 lbs

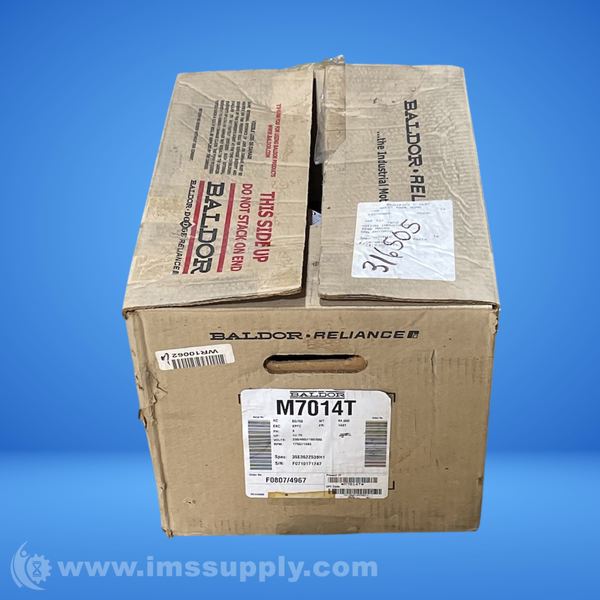

New - Open Box:
