BALLUFF BAE00KJ AMPLIFIER
Quick Overview
Manufactured By: BALLUFF
Manufacturer Part Number: BAE00KJ
IMS Product Code: 2131223
Packaging: Sold Individually
Description:

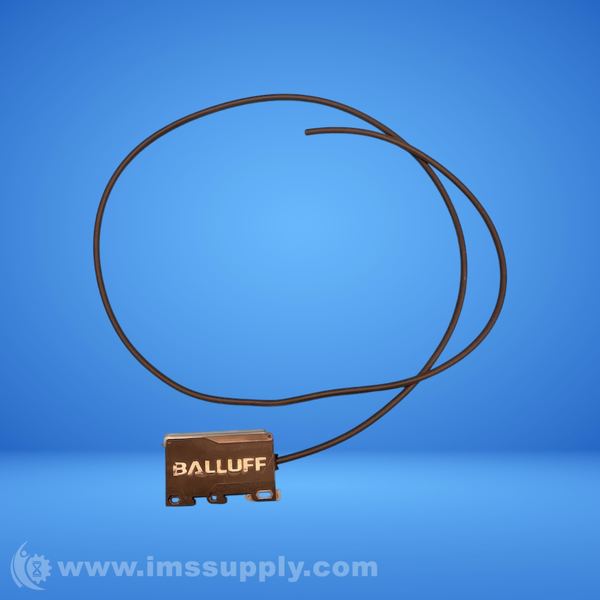

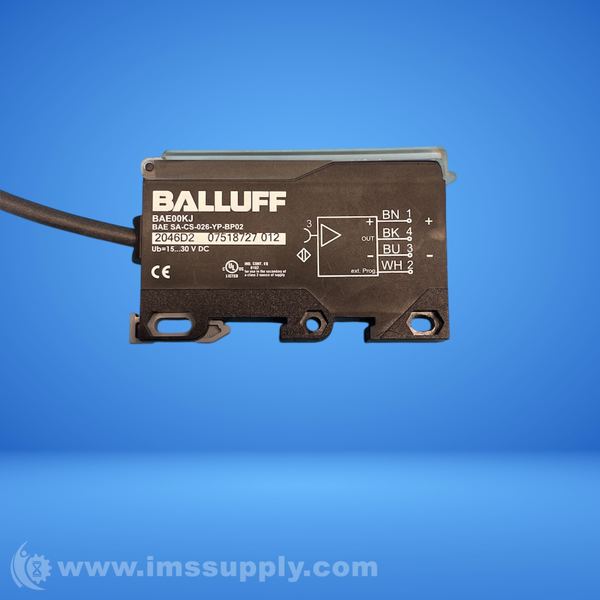

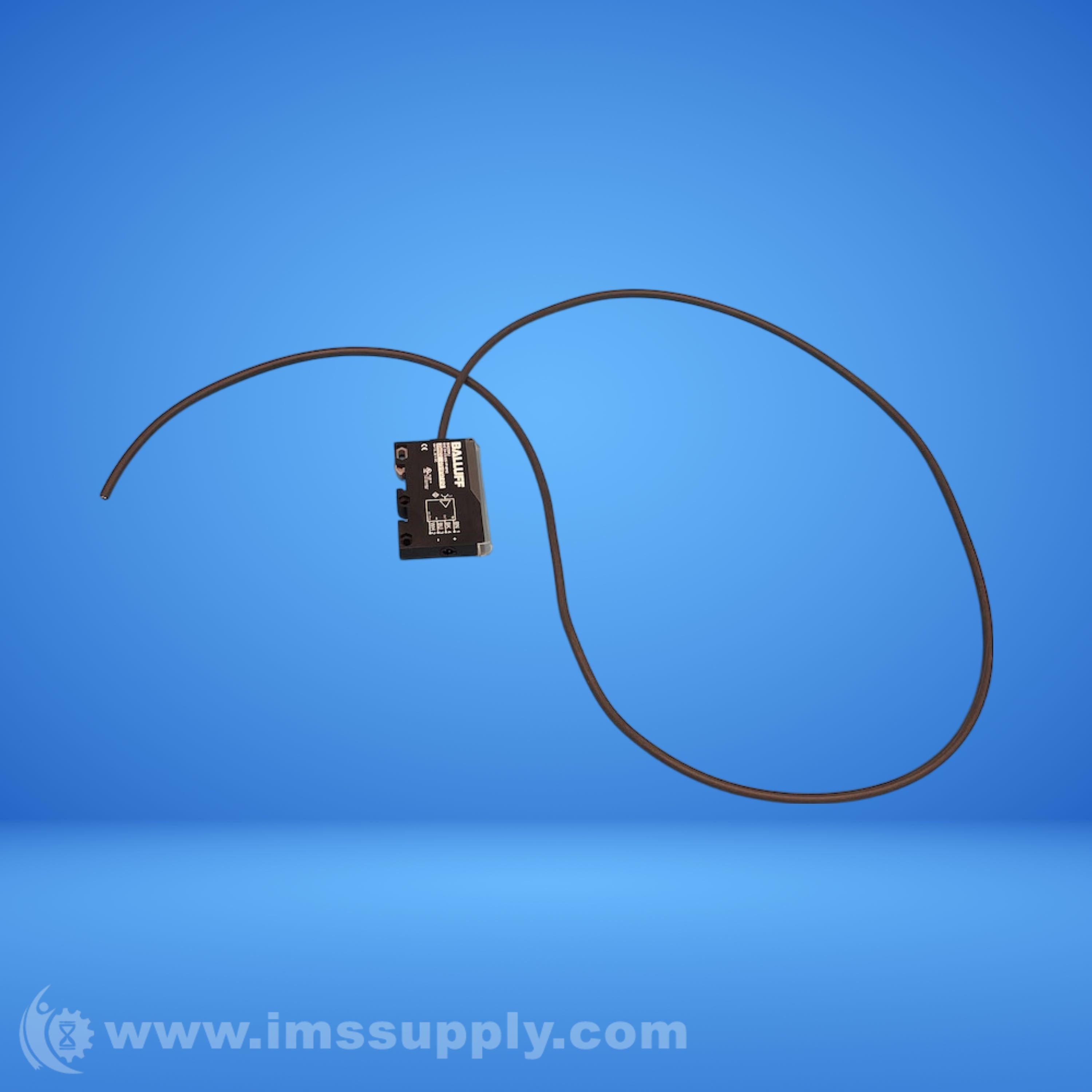

Balluff BAE00KJ Amplifier
Amplifier for capacitive sensor heads, 10.5 x 45 x 75.5 mm, 2m PUR cable, PNP/NPN programmable output, 100 Hz switching frequency, analog voltage/current output, PBT housing, -10 to 70 degrees C operating temperature, 15 to 30 VDC operating voltage, IP40 protection, CE/UKCA/cULus approved.
Specifications
- Dimension: 10.5 x 45 x 75.5 mm
- Connection: Cable, 2.00 m, PUR
- Switching output: PNP / NPN contact normally open / normally closed (NO / NC) programmable
- Switching frequency: 100 Hz
- Analog output: Analog, voltage / analog, current 0… 10 V / 4… 20 mA
- Case material: PBT
- Room temperature: -10 … 70 degrees C
- Operating voltage UB: 15 … 30 VDC
- Degree of protection: IP40
- Timing function: Programmable on / off delay
