BALLUFF BES 516-324-E4-C-S4-003 INDUCTIVE SENSOR
Quick Overview
Manufactured By: BALLUFF
Manufacturer Part Number: BES 516-324-E4-C-S4-003
IMS Product Code: 1934751
Packaging: Sold Individually
Description:

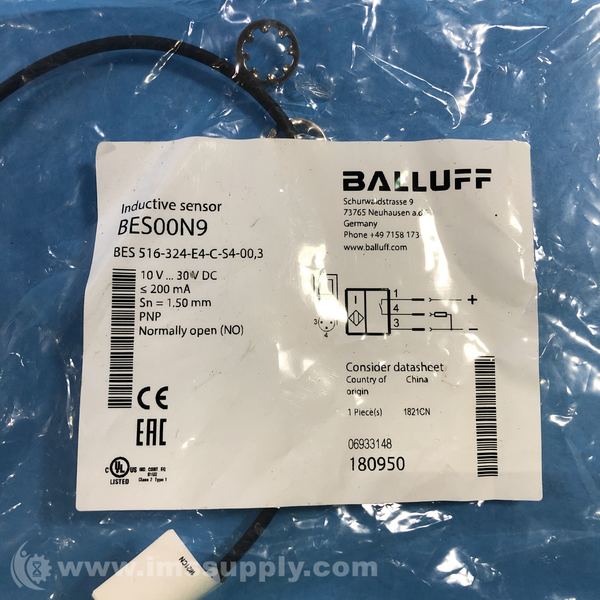

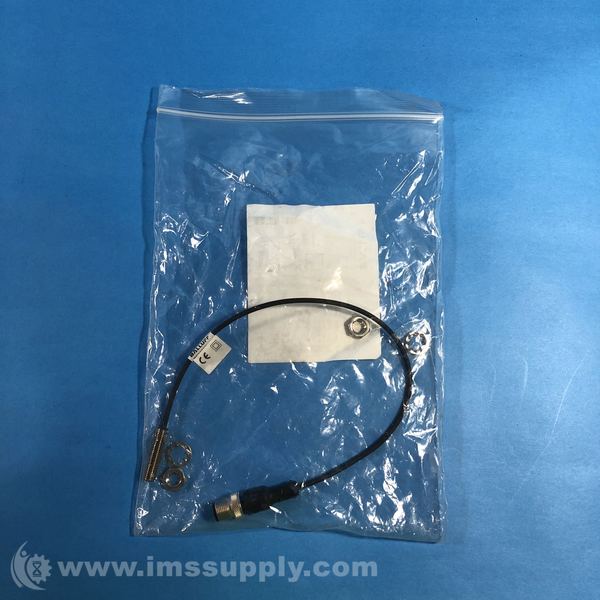

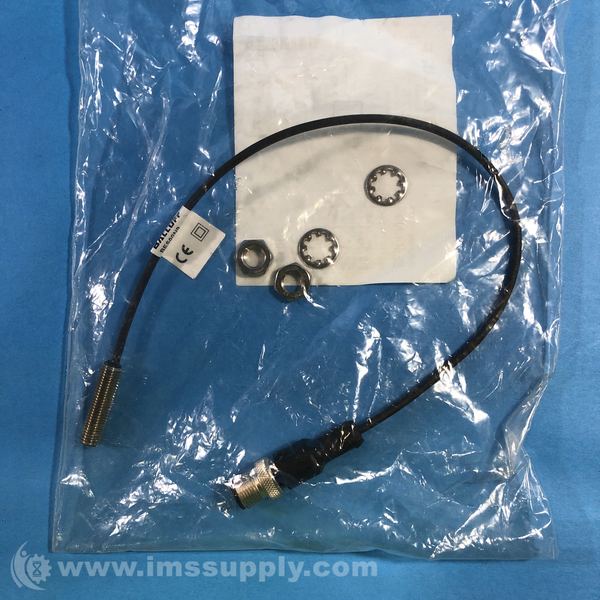

Balluff BES 516-324-E4-C-S4-003 Inductive Sensor
Inductive proximity sensor, M8 threaded barrel, 1.5 mm detection range, PNP NO output, 10-30 V dc supply
Specifications
- Thread Size: M8
- Sensor Technology: Inductive
- Detection Range: 1.5 mm
- Body Style: Threaded Barrel
- Output Function: NO
- Digital Switching Output Type: PNP
- Connection Type: M12
- Supply Voltage: 10 ? 30 V dc
- IP Rating: IP68
- Length: 30mm
- Mounting Type: Flush
- Housing Material: Stainless Steel
- Maximum dc Voltage: 30V
- Minimum Operating Temperature: -25°C
- Short Circuit Overload Protection: Yes
- Shielding: Shielded
- Maximum Switching Frequency: 3kHz
- Switching Current: 200 mA
- Reverse Polarity Protection: Yes
- Maximum Operating Temperature: +70°C
- Standards Met: CE, cULus, IEC 60947-5-2
